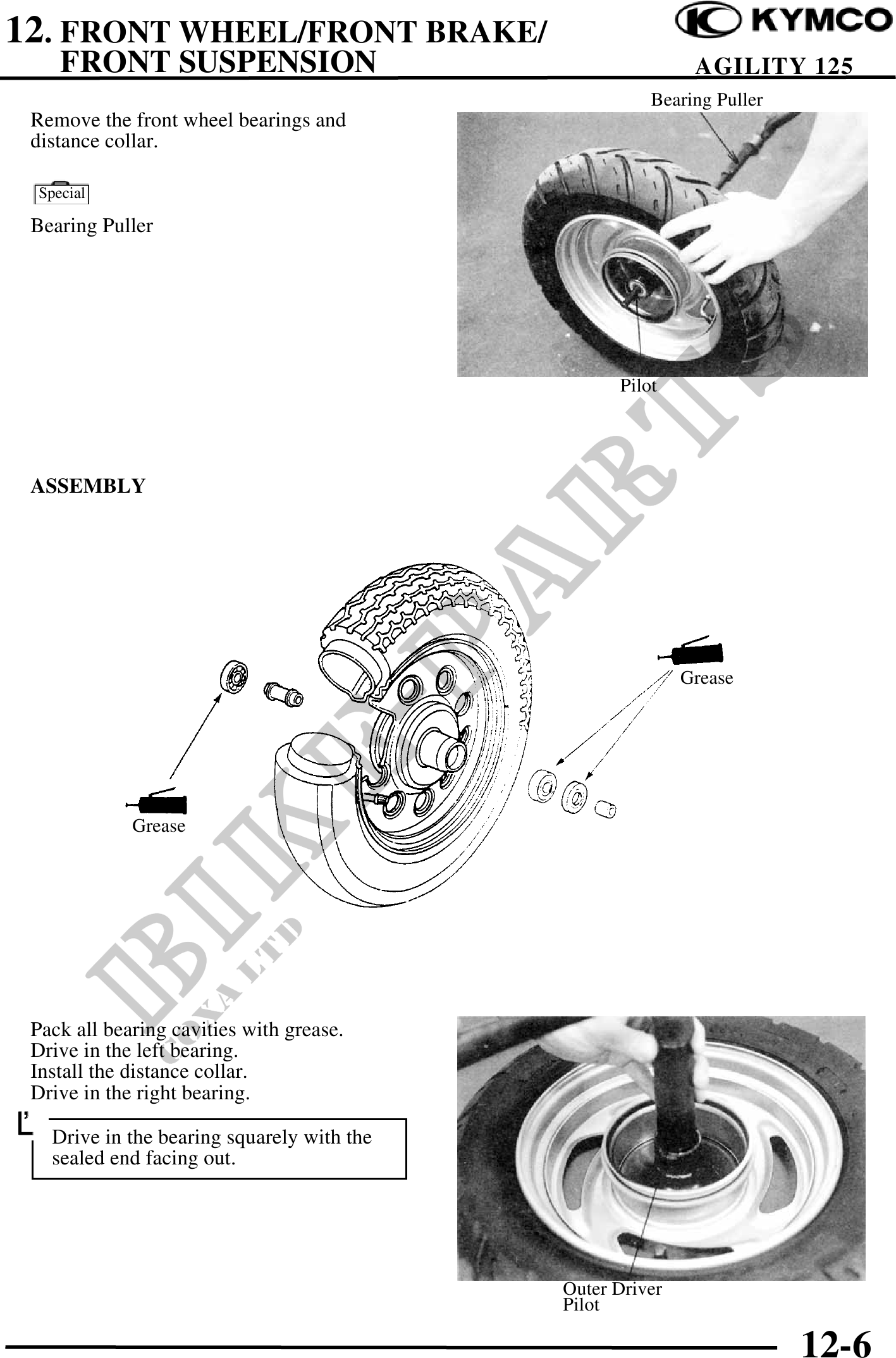

          12. FRONT WHEEL/FRONT BRAKE/
     FRONT SUSPENSION                                     AGILITY 125
                                                    Bearing Puller
 Remove the front wheel bearings and
 distance collar.

  Special

 Bearing Puller




                                                Pilot




 ASSEMBLY




                                                         Grease




             Grease




 Pack all bearing cavities with grease.
 Drive in the left bearing.
 Install the distance collar.
 Drive in the right bearing.
 Drive in the bearing squarely with the
   sealed end facing out.




                                          Outer Driver
                                          Pilot

                                                                     12-6
