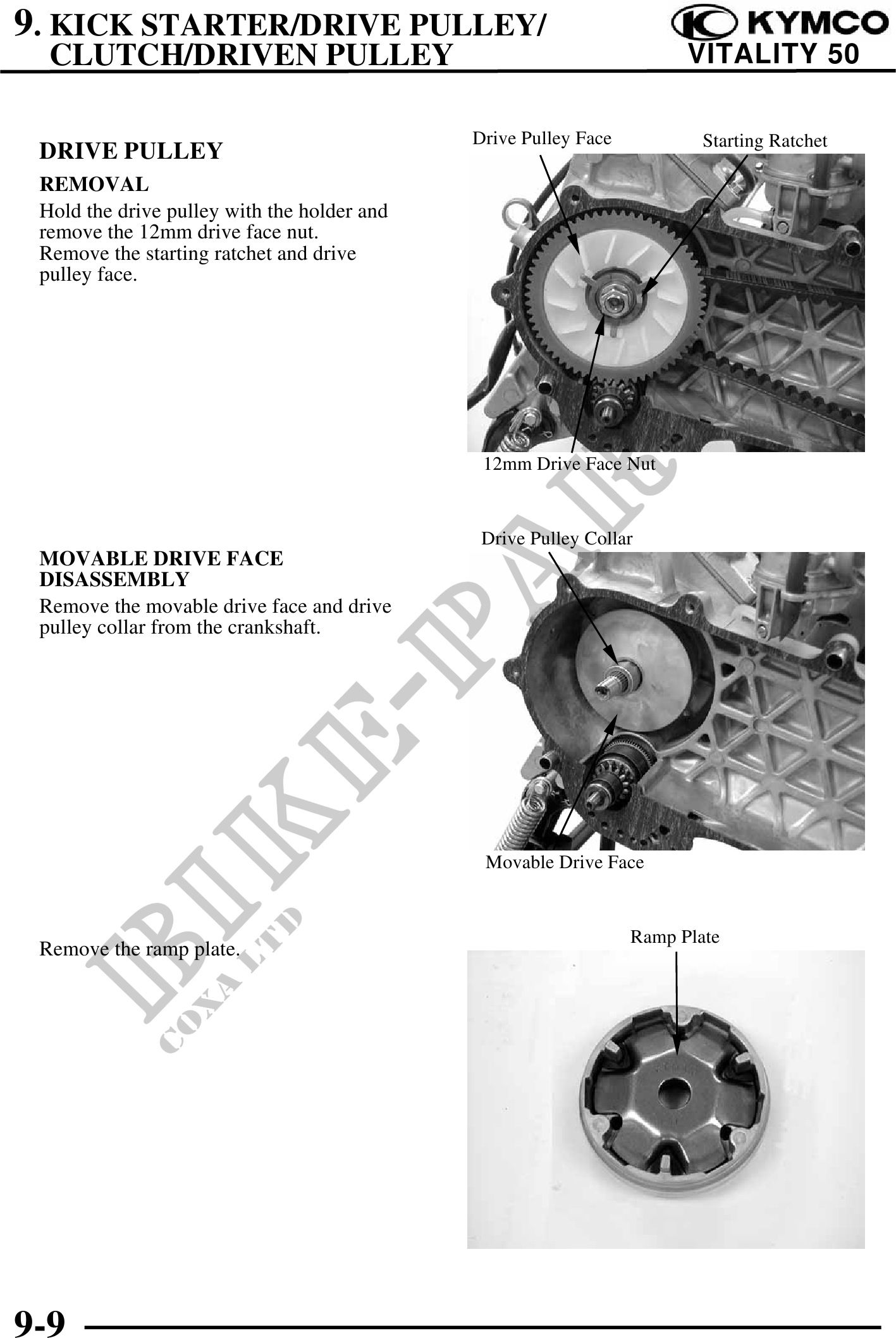

          9. KICK STARTER/DRIVE PULLEY/
  CLUTCH/DRIVEN PULLEY                                                 VITALITY 50

                                             Drive Pulley Face           Starting Ratchet
 DRIVE PULLEY
 REMOVAL
 Hold the drive pulley with the holder and
 remove the 12mm drive face nut.
 Remove the starting ratchet and drive
 pulley face.




                                              12mm Drive Face Nut


                                              Drive Pulley Collar
 MOVABLE DRIVE FACE
 DISASSEMBLY
 Remove the movable drive face and drive
 pulley collar from the crankshaft.




                                              Movable Drive Face


                                                                 Ramp Plate
 Remove the ramp plate.




9-9
