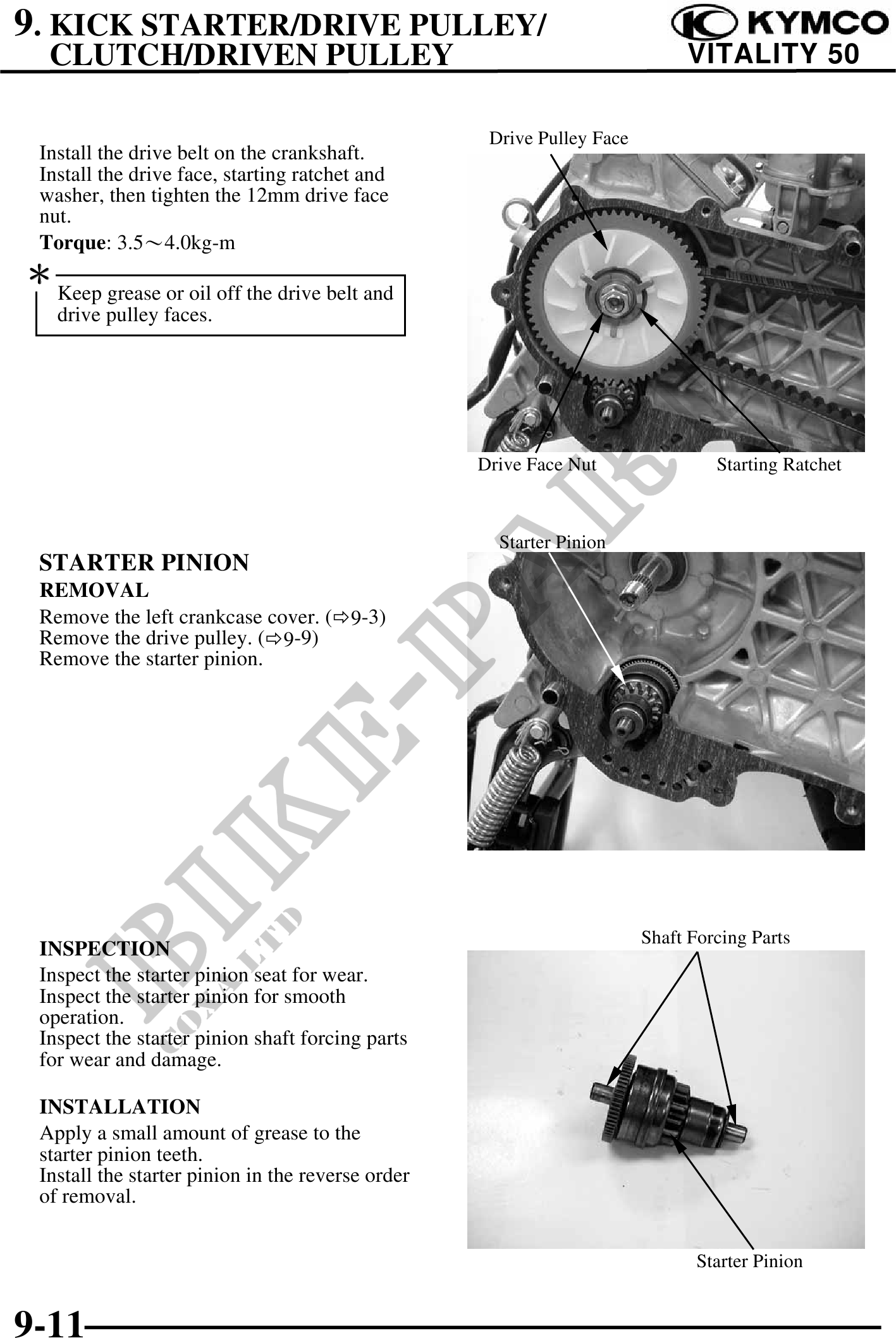

          9. KICK STARTER/DRIVE PULLEY/
  CLUTCH/DRIVEN PULLEY                                                       VITALITY 50

                                                    Drive Pulley Face
 Install the drive belt on the crankshaft.
 Install the drive face, starting ratchet and
 washer, then tighten the 12mm drive face
 nut.
 Torque: 3.54.0kg-m

   Keep grease or oil off the drive belt and
   drive pulley faces.




                                                   Drive Face Nut                Starting Ratchet



                                                     Starter Pinion
 STARTER PINION
 REMOVAL
 Remove the left crankcase cover. ( 9-3)
 Remove the drive pulley. ( 9-9)
 Remove the starter pinion.




                                                                        Shaft Forcing Parts
 INSPECTION
 Inspect the starter pinion seat for wear.
 Inspect the starter pinion for smooth
 operation.
 Inspect the starter pinion shaft forcing parts
 for wear and damage.

 INSTALLATION
 Apply a small amount of grease to the
 starter pinion teeth.
 Install the starter pinion in the reverse order
 of removal.


                                                                               Starter Pinion


9-11
