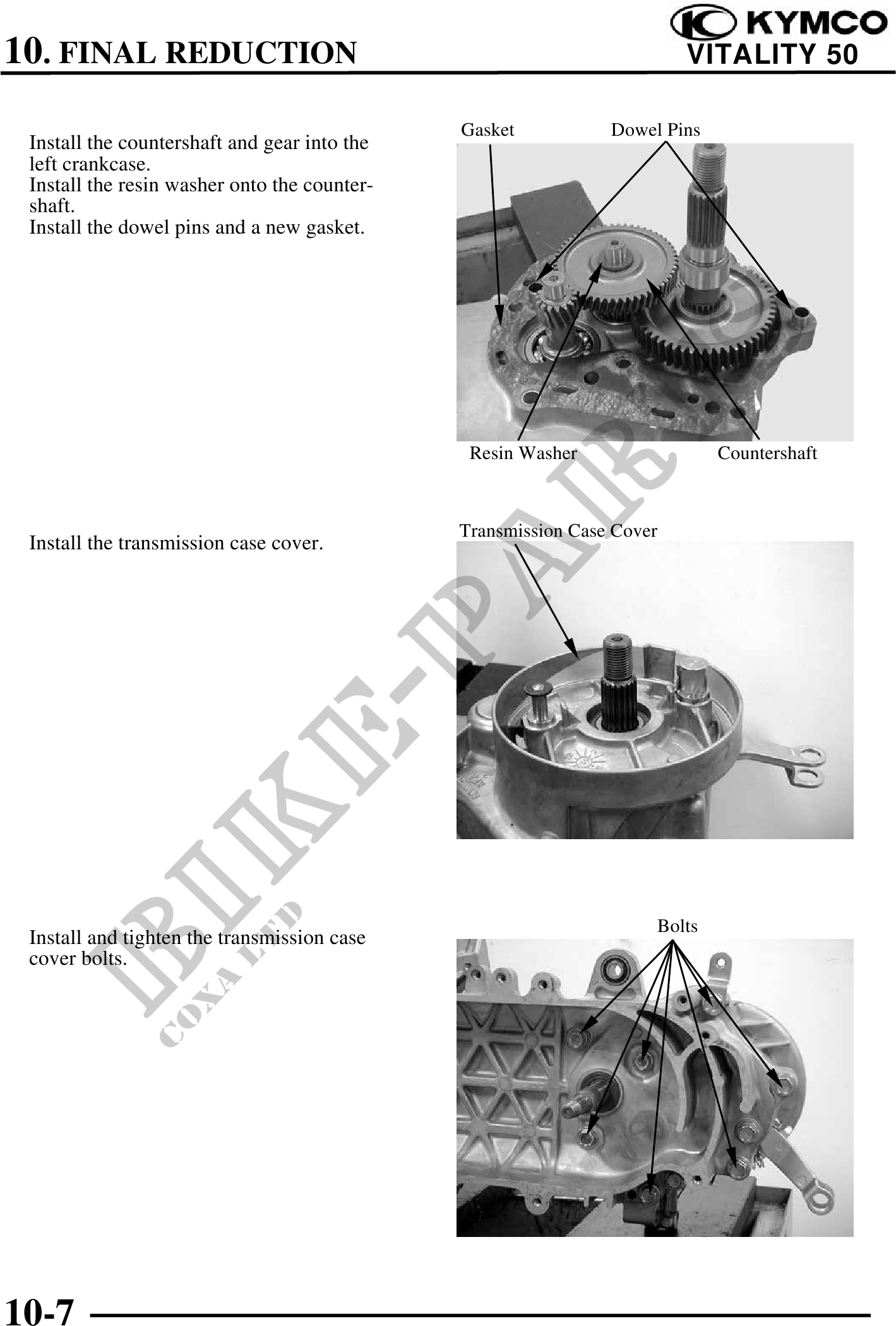

          10. FINAL REDUCTION                                                        VITALITY 50

                                              Gasket           Dowel Pins
 Install the countershaft and gear into the
 left crankcase.
 Install the resin washer onto the counter-
 shaft.
 Install the dowel pins and a new gasket.




                                               Resin Washer                     Countershaft



                                              Transmission Case Cover
 Install the transmission case cover.




                                                                        Bolts
 Install and tighten the transmission case
 cover bolts.




10-7
