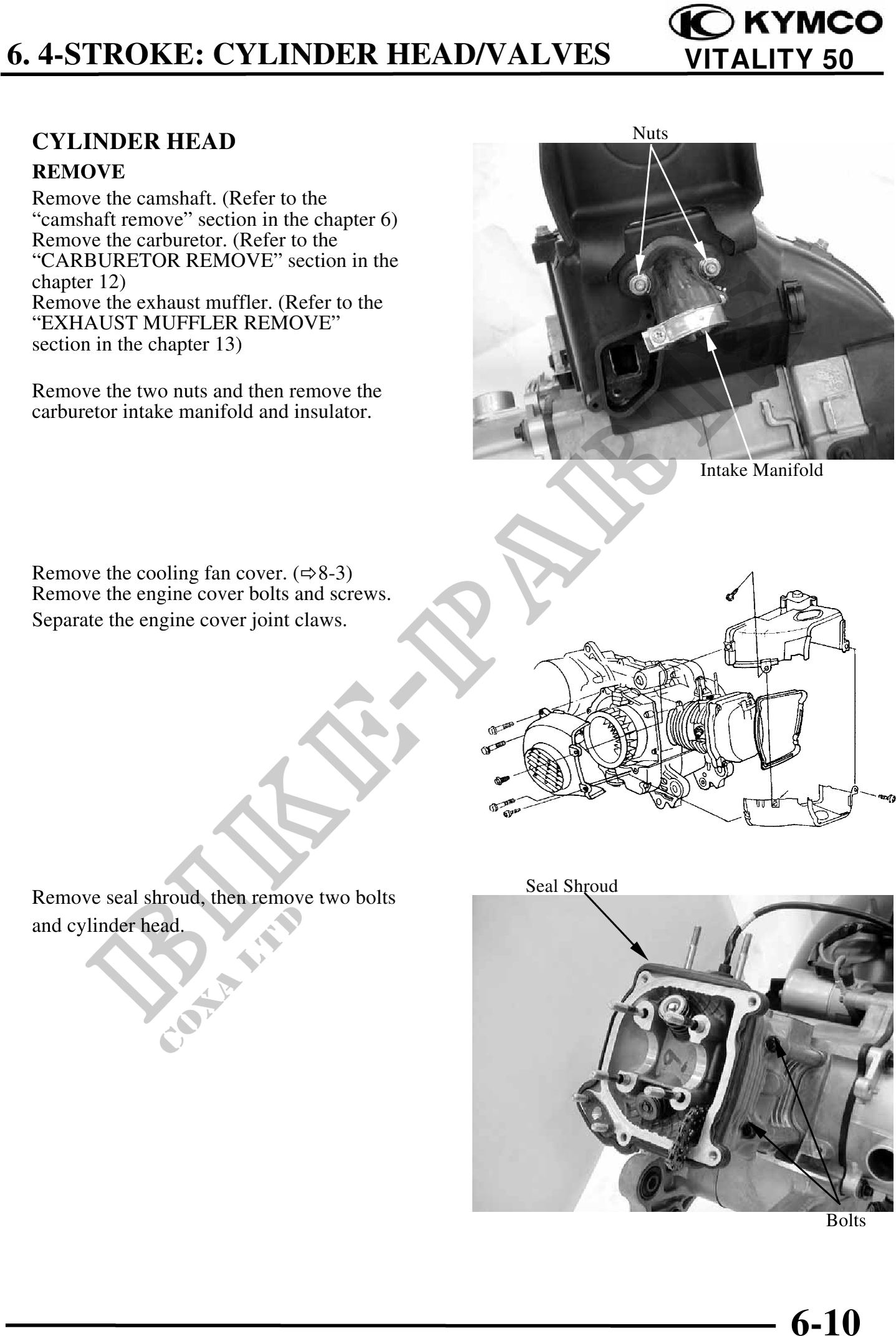

          6. 4-STROKE: CYLINDER HEAD/VALVES                                   VITALITY 50

 CYLINDER HEAD                                               Nuts

 REMOVE
 Remove the camshaft. (Refer to the
 "camshaft remove" section in the chapter 6)
 Remove the carburetor. (Refer to the
 "CARBURETOR REMOVE" section in the
 chapter 12)
 Remove the exhaust muffler. (Refer to the
 "EXHAUST MUFFLER REMOVE"
 section in the chapter 13)

 Remove the two nuts and then remove the
 carburetor intake manifold and insulator.

                                                                     Intake Manifold




 Remove the cooling fan cover. ( 8-3)
 Remove the engine cover bolts and screws.
 Separate the engine cover joint claws.




                                               Seal Shroud
 Remove seal shroud, then remove two bolts
 and cylinder head.




                                                                                       Bolts




                                                                                6-10
