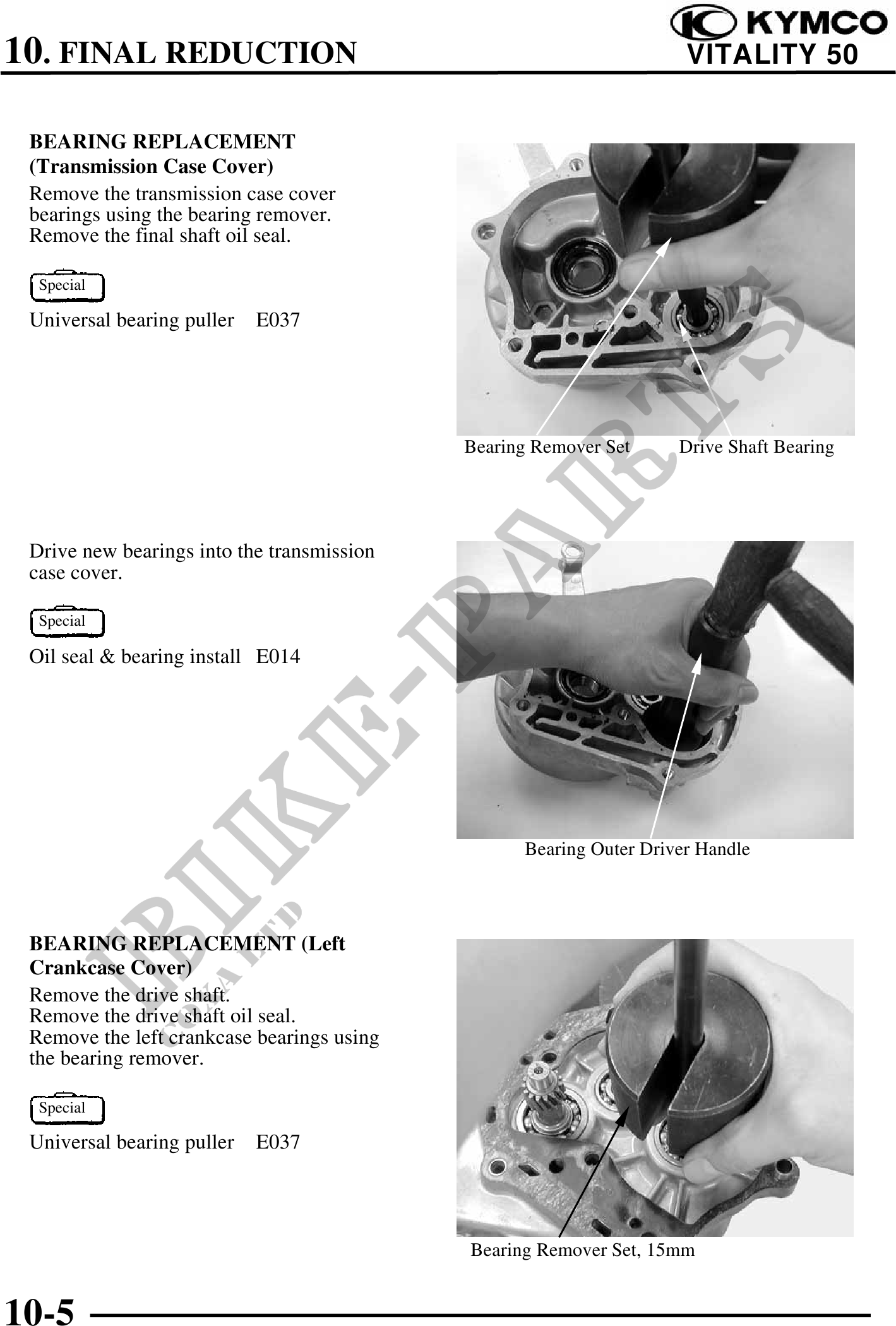

          10. FINAL REDUCTION                                                  VITALITY 50


 BEARING REPLACEMENT
 (Transmission Case Cover)
 Remove the transmission case cover
 bearings using the bearing remover.
 Remove the final shaft oil seal.

  Special

 Universal bearing puller   E037




                                            Bearing Remover Set     Drive Shaft Bearing




 Drive new bearings into the transmission
 case cover.

  Special

 Oil seal & bearing install E014




                                                  Bearing Outer Driver Handle



 BEARING REPLACEMENT (Left
 Crankcase Cover)
 Remove the drive shaft.
 Remove the drive shaft oil seal.
 Remove the left crankcase bearings using
 the bearing remover.

  Special

 Universal bearing puller   E037




                                            Bearing Remover Set, 15mm


10-5
