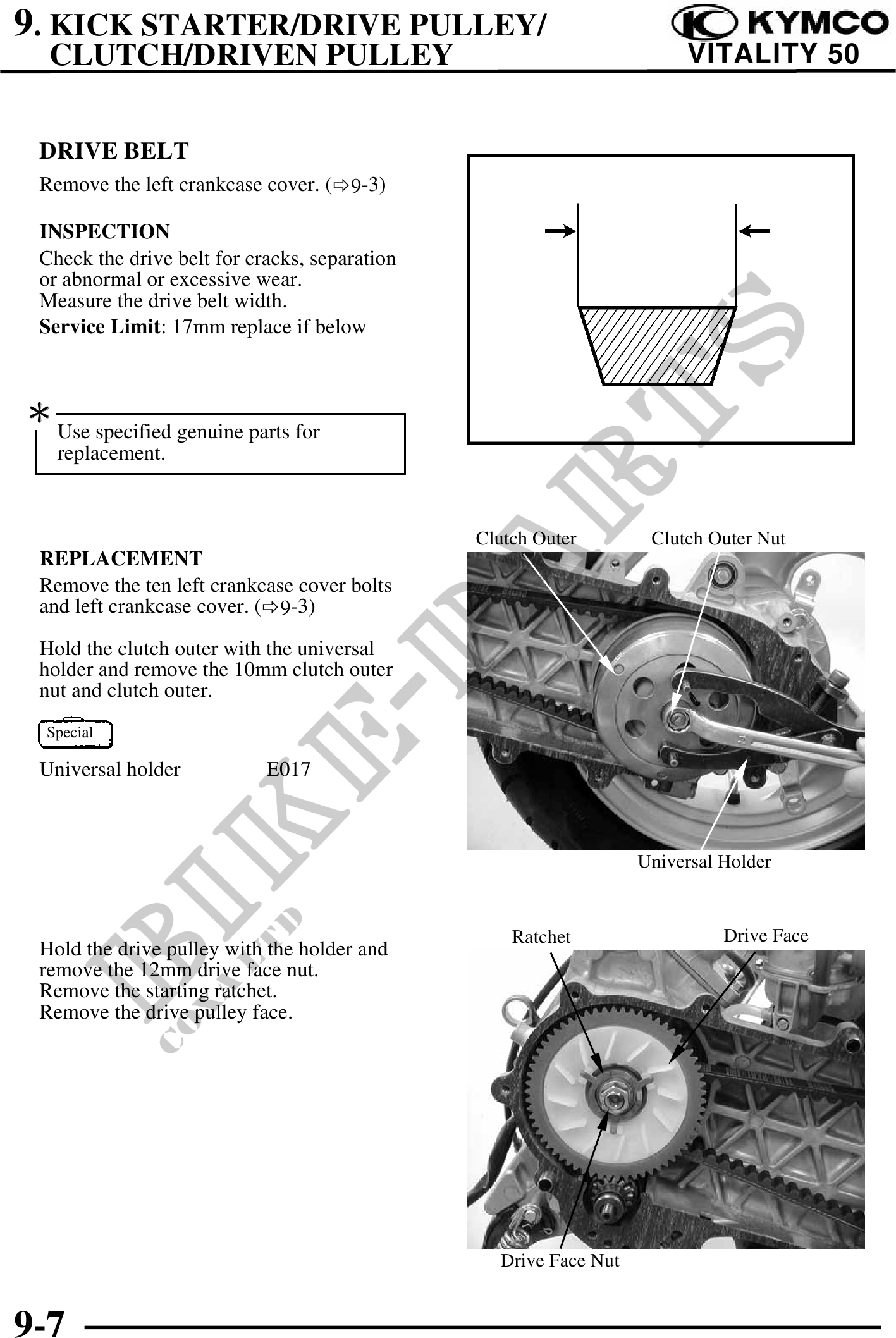

          9. KICK STARTER/DRIVE PULLEY/
  CLUTCH/DRIVEN PULLEY                                                 VITALITY 50


 DRIVE BELT
 Remove the left crankcase cover. ( 9-3)

 INSPECTION
 Check the drive belt for cracks, separation
 or abnormal or excessive wear.
 Measure the drive belt width.
 Service Limit: 17mm replace if below




   Use specified genuine parts for
   replacement.



                                               Clutch Outer        Clutch Outer Nut
 REPLACEMENT
 Remove the ten left crankcase cover bolts
 and left crankcase cover. ( 9-3)

 Hold the clutch outer with the universal
 holder and remove the 10mm clutch outer
 nut and clutch outer.
 Special

 Universal holder           E017



                                                                  Universal Holder


                                                   Ratchet                  Drive Face
 Hold the drive pulley with the holder and
 remove the 12mm drive face nut.
 Remove the starting ratchet.
 Remove the drive pulley face.




                                                 Drive Face Nut


9-7
