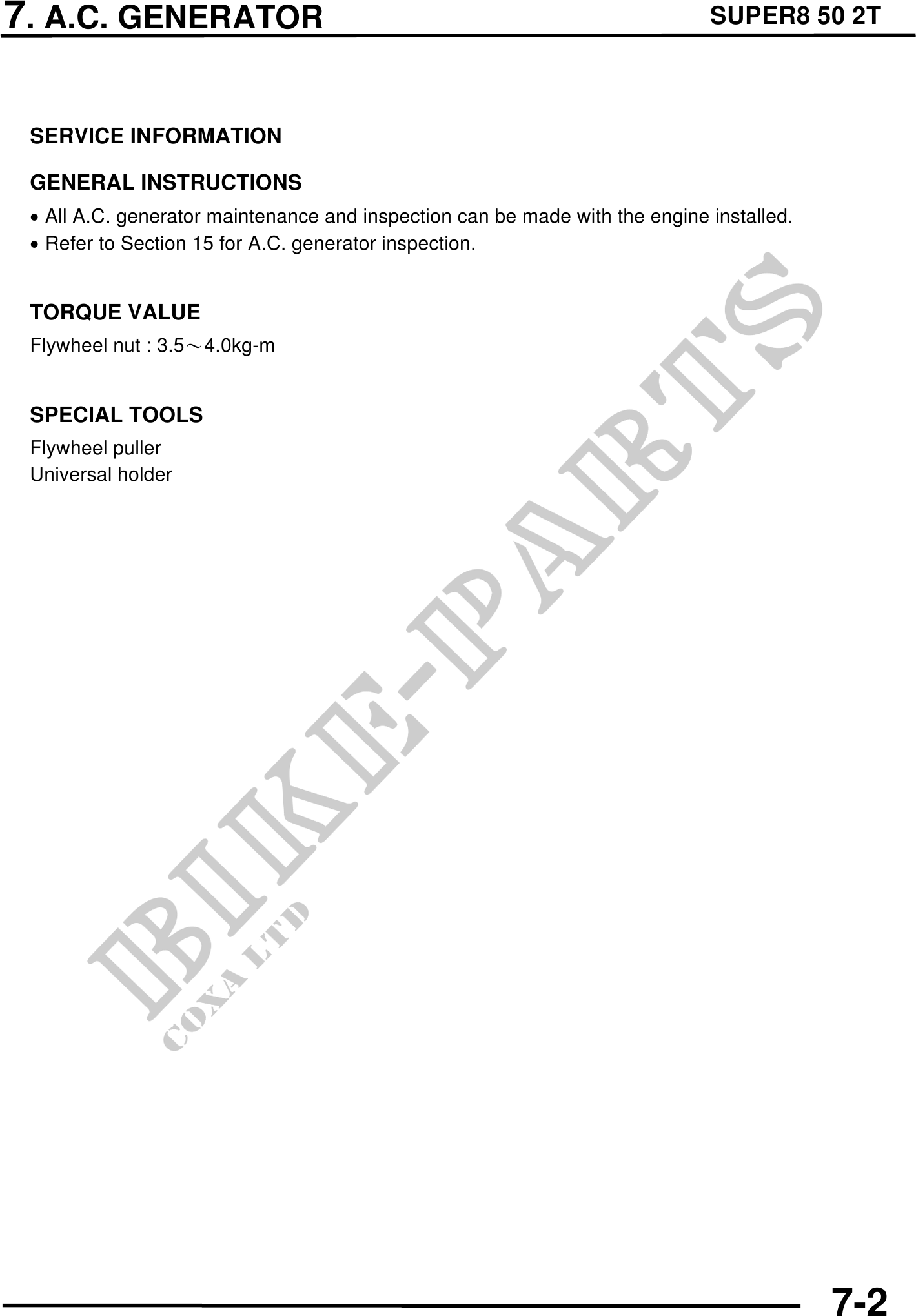

          7. A.C. GENERATOR                                                            SUPER8 50 2T



 SERVICE INFORMATION

 GENERAL INSTRUCTIONS
 · All A.C. generator maintenance and inspection can be made with the engine installed.
 · Refer to Section 15 for A.C. generator inspection.


 TORQUE VALUE
 Flywheel nut : 3.54.0kg-m


 SPECIAL TOOLS
 Flywheel puller
 Universal holder




                                                                                          7-2
