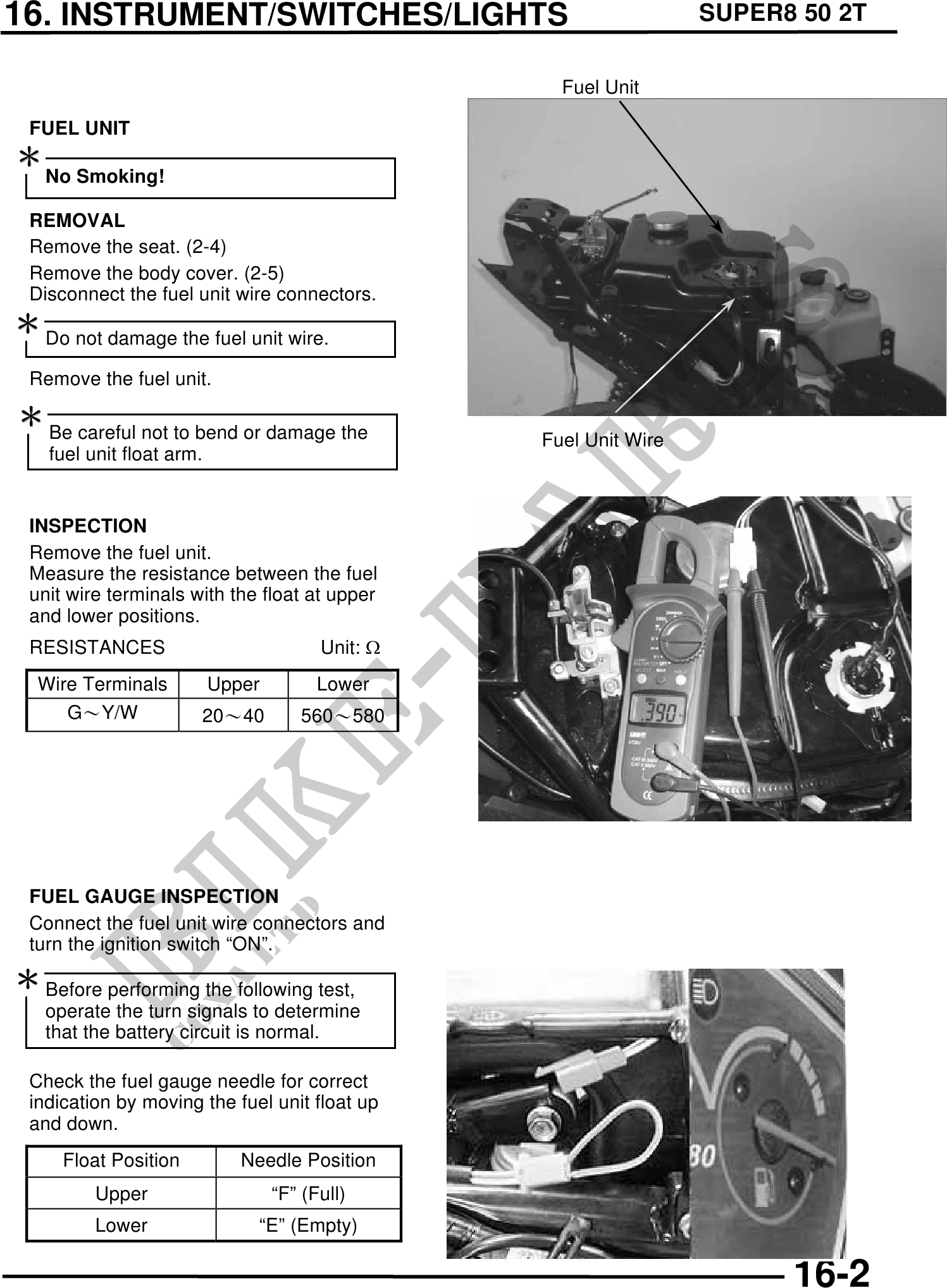

          16. INSTRUMENT/SWITCHES/LIGHTS                                     SUPER8 50 2T

                                                    Fuel Unit

 FUEL UNIT

   No Smoking!

 REMOVAL
 Remove the seat. (2-4)
 Remove the body cover. (2-5)
 Disconnect the fuel unit wire connectors.
 Do not damage the fuel unit wire.
 Remove the fuel unit.

 Be careful not to bend or damage the
                                                  Fuel Unit Wire
    fuel unit float arm.


 INSPECTION
 Remove the fuel unit.
 Measure the resistance between the fuel
 unit wire terminals with the float at upper
 and lower positions.
 RESISTANCES                             Unit:
  Wire Terminals           Upper         Lower
     GY/W              2040           560580




 FUEL GAUGE INSPECTION
 Connect the fuel unit wire connectors and
 turn the ignition switch "ON".
 Before performing the following test,
   operate the turn signals to determine
   that the battery circuit is normal.

 Check the fuel gauge needle for correct
 indication by moving the fuel unit float up
 and down.
     Float Position           Needle Position
          Upper                    "F" (Full)
          Lower                 "E" (Empty)
