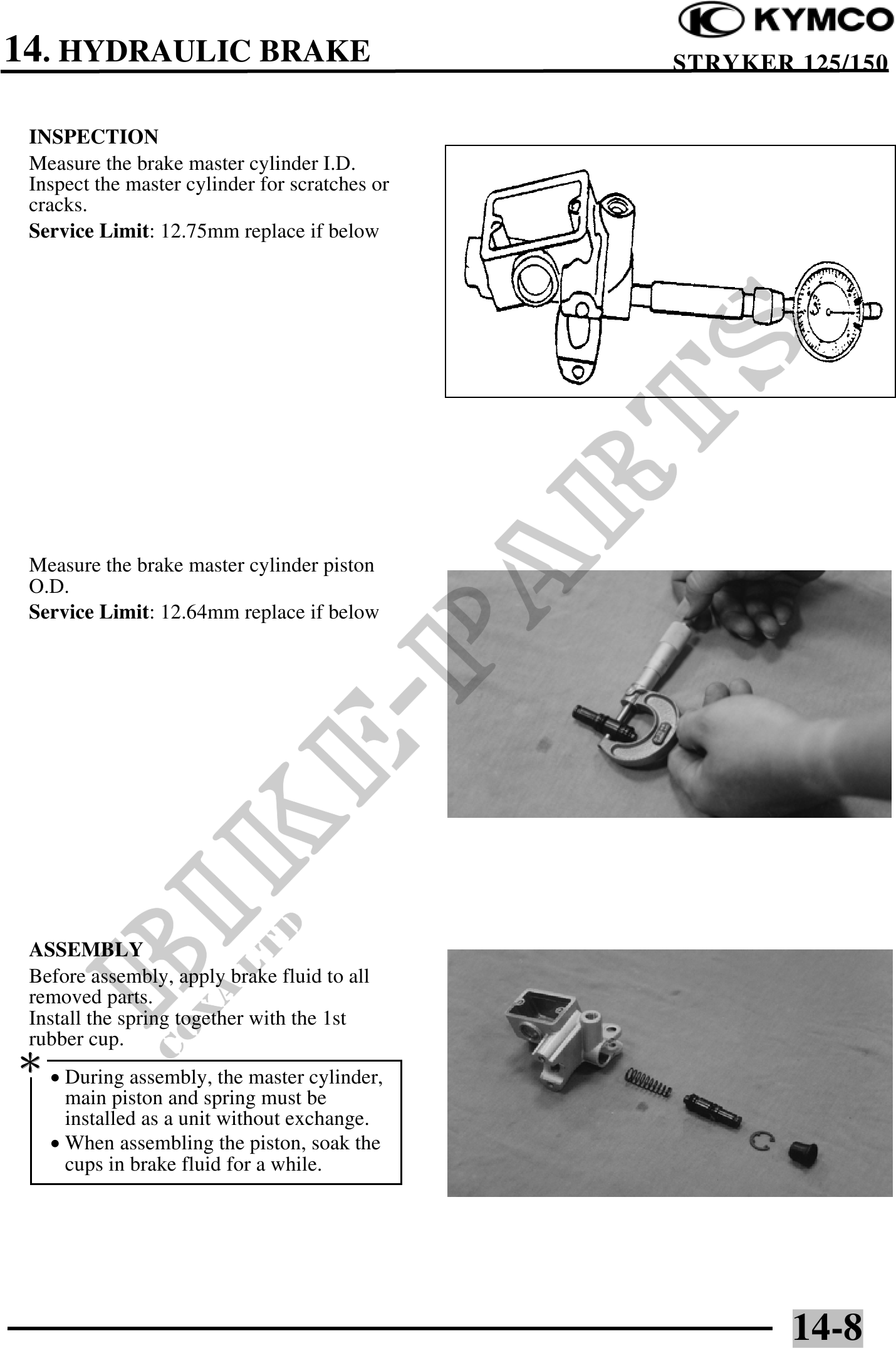

14. HYDRAULIC BRAKE STRYKER 125/150
INSPECTION
Measure the brake master cylinder I.D.
Inspect the master cylinder for scratches or
cracks.
Service Limit: 12.75mm replace if below
Measure the brake master cylinder piston
O.D.
Service Limit: 12.64mm replace if below
ASSEMBLY
Before assembly, apply brake fluid to all
removed parts.
Install the spring together with the 1st
rubber cup.
· During assembly, the master cylinder,
main piston and spring must be
installed as a unit without exchange.
· When assembling the piston, soak the
cups in brake fluid for a while.
