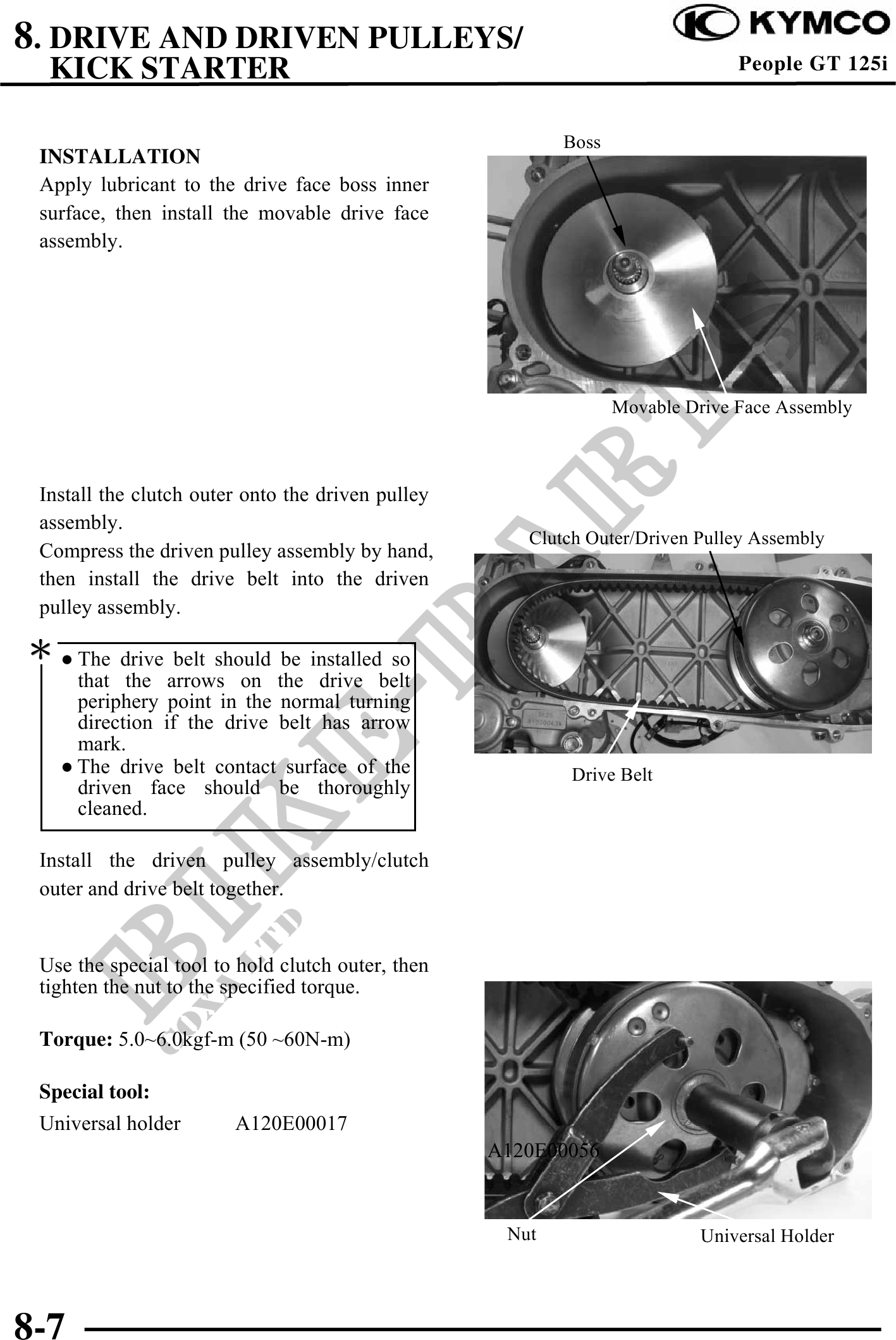

          8. DRIVE AND DRIVEN PULLEYS/
  KICK STARTER                                                                 People GT 125i


                                                          Boss
 INSTALLATION
 Apply lubricant to the drive face boss inner
 surface, then install the movable drive face
 assembly.




                                                                 Movable Drive Face Assembly



 Install the clutch outer onto the driven pulley
 assembly.
                                                      Clutch Outer/Driven Pulley Assembly
 Compress the driven pulley assembly by hand,
 then install the drive belt into the driven
 pulley assembly.

  The    drive belt should be installed so
    that the arrows on the drive belt
    periphery point in the normal turning
    direction if the drive belt has arrow
    mark.
    The drive belt contact surface of the                  Drive Belt
    driven face should be thoroughly
    cleaned.

 Install the driven pulley assembly/clutch
 outer and drive belt together.


 Use the special tool to hold clutch outer, then
 tighten the nut to the specified torque.

 Torque: 5.0~6.0kgf-m (50 ~60N-m)

 Special tool:
 Universal holder       A120E00017
                                                   A120E00056


                                                    Nut                   Universal Holder
