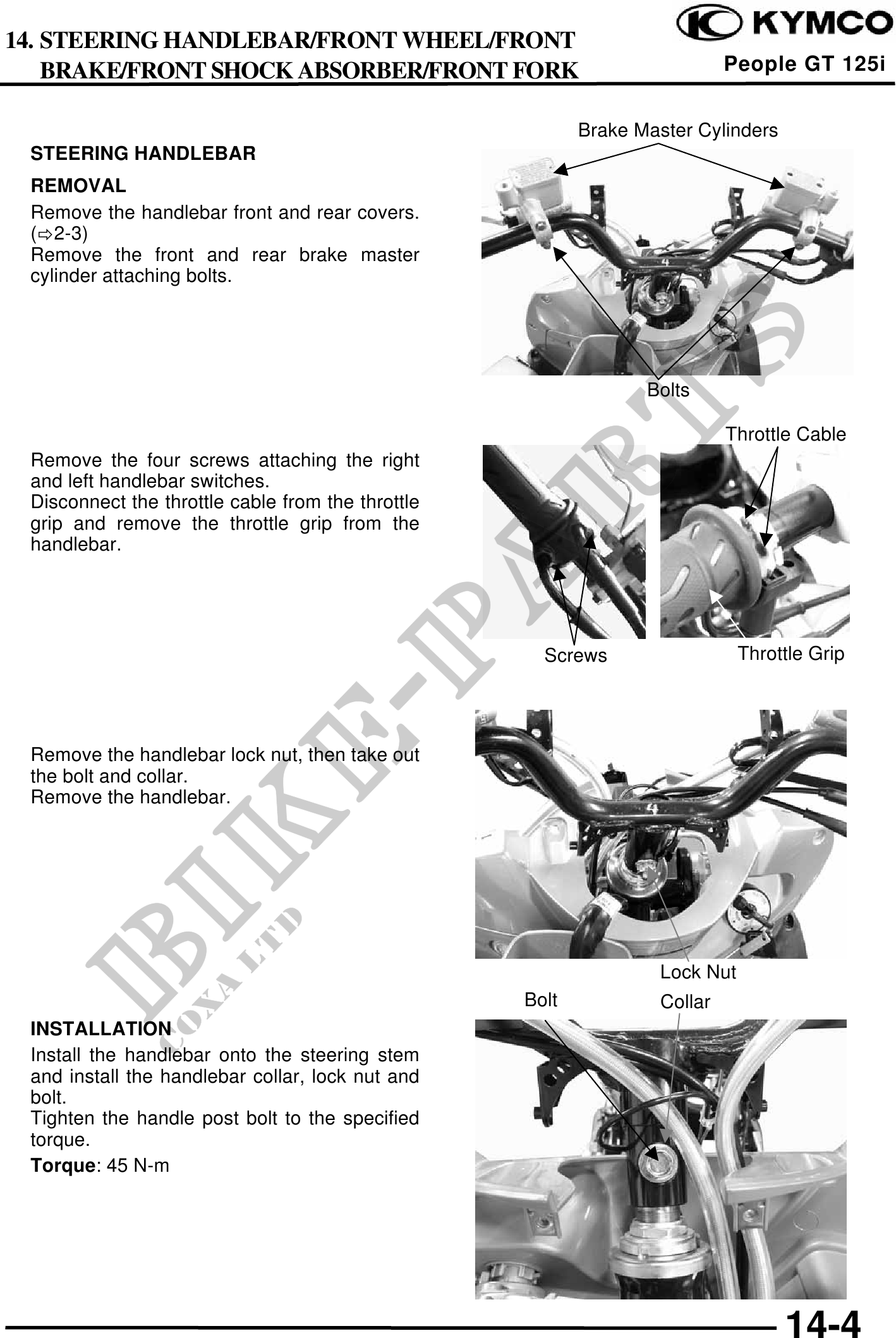

          14. STEERING HANDLEBAR/FRONT WHEEL/FRONT
    BRAKE/FRONT SHOCK ABSORBER/FRONT FORK                                   People GT 125i


                                                          Brake Master Cylinders
 STEERING HANDLEBAR
 REMOVAL
 Remove the handlebar front and rear covers.
 ( 2-3)
 Remove the front and rear brake master
 cylinder attaching bolts.




                                                                 Bolts

                                                                            Throttle Cable
 Remove the four screws attaching the right
 and left handlebar switches.
 Disconnect the throttle cable from the throttle
 grip and remove the throttle grip from the
 handlebar.




                                                     Screws                   Throttle Grip




 Remove the handlebar lock nut, then take out
 the bolt and collar.
 Remove the handlebar.




                                                                   Lock Nut
                                                   Bolt            Collar
 INSTALLATION
 Install the handlebar onto the steering stem
 and install the handlebar collar, lock nut and
 bolt.
 Tighten the handle post bolt to the specified
 torque.
 Torque: 45 N-m




                                                                                   14-4
