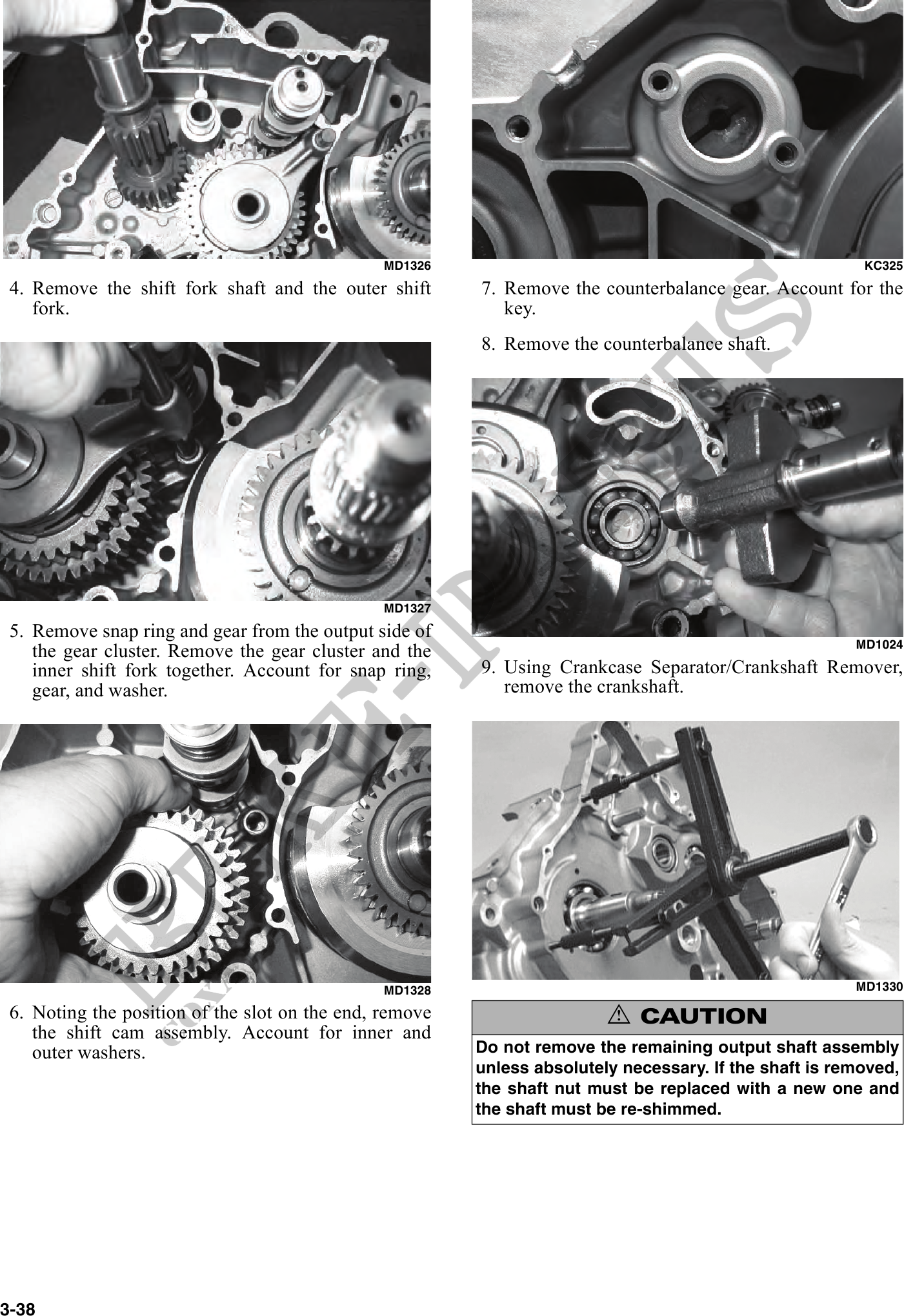

 4. Remove the shift fork shaft and the outer shift      7. Remove the counterbalance gear. Account for the
    fork.                                                   key.
                                                         8. Remove the counterbalance shaft.




                                                MD1327
 5. Remove snap ring and gear from the output side of
    the gear cluster. Remove the gear cluster and the                                                   MD1024

    inner shift fork together. Account for snap ring,    9. Using Crankcase Separator/Crankshaft Remover,
    gear, and washer.                                       remove the crankshaft.




                                                MD1328                                                  MD1330

 6. Noting the position of the slot on the end, remove                   ! CAUTION
    the shift cam assembly. Account for inner and
    outer washers.                                       Do not remove the remaining output shaft assembly
                                                         unless absolutely necessary. If the shaft is removed,
                                                         the shaft nut must be replaced with a new one and
                                                         the shaft must be re-shimmed.
