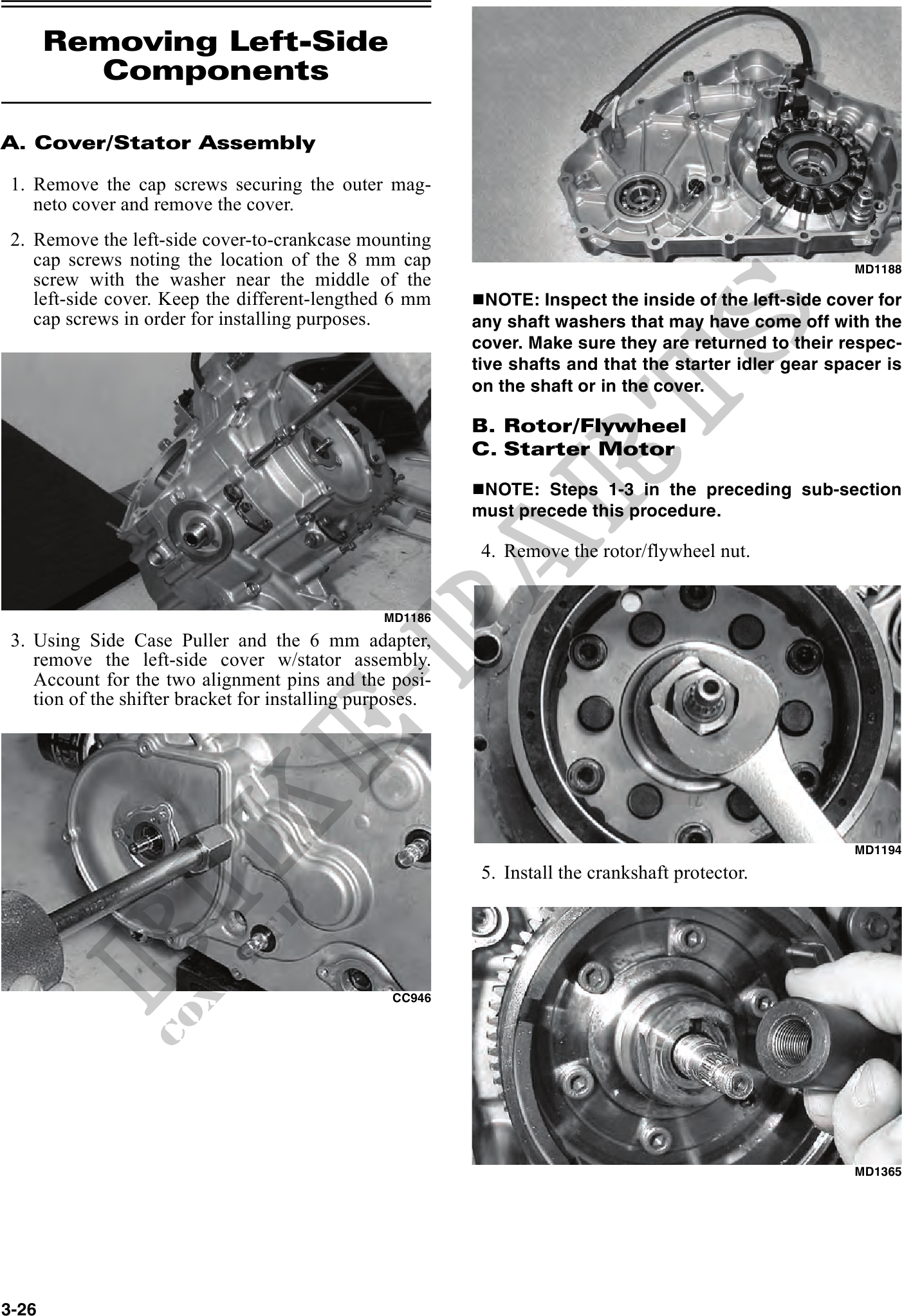

                 Removing Left-Side
         Components

A. Cover/Stator Assembly

 1. Remove the cap screws securing the outer mag-
    neto cover and remove the cover.
 2. Remove the left-side cover-to-crankcase mounting
    cap screws noting the location of the 8 mm cap                                                        MD1188
    screw with the washer near the middle of the
    left-side cover. Keep the different-lengthed 6 mm        NOTE: Inspect the inside of the left-side cover for
    cap screws in order for installing purposes.           any shaft washers that may have come off with the
                                                           cover. Make sure they are returned to their respec-
                                                           tive shafts and that the starter idler gear spacer is
                                                           on the shaft or in the cover.

                                                           B. Rotor/Flywheel
                                                           C. Starter Motor

                                                            NOTE: Steps 1-3 in the preceding sub-section
                                                           must precede this procedure.

                                                            4. Remove the rotor/flywheel nut.


                                                 MD1186
 3. Using Side Case Puller and the 6 mm adapter,
    remove the left-side cover w/stator assembly.
    Account for the two alignment pins and the posi-
    tion of the shifter bracket for installing purposes.




                                                                                                          MD1194
                                                            5. Install the crankshaft protector.




                                                  CC946




                                                                                                          MD1365




3-26
