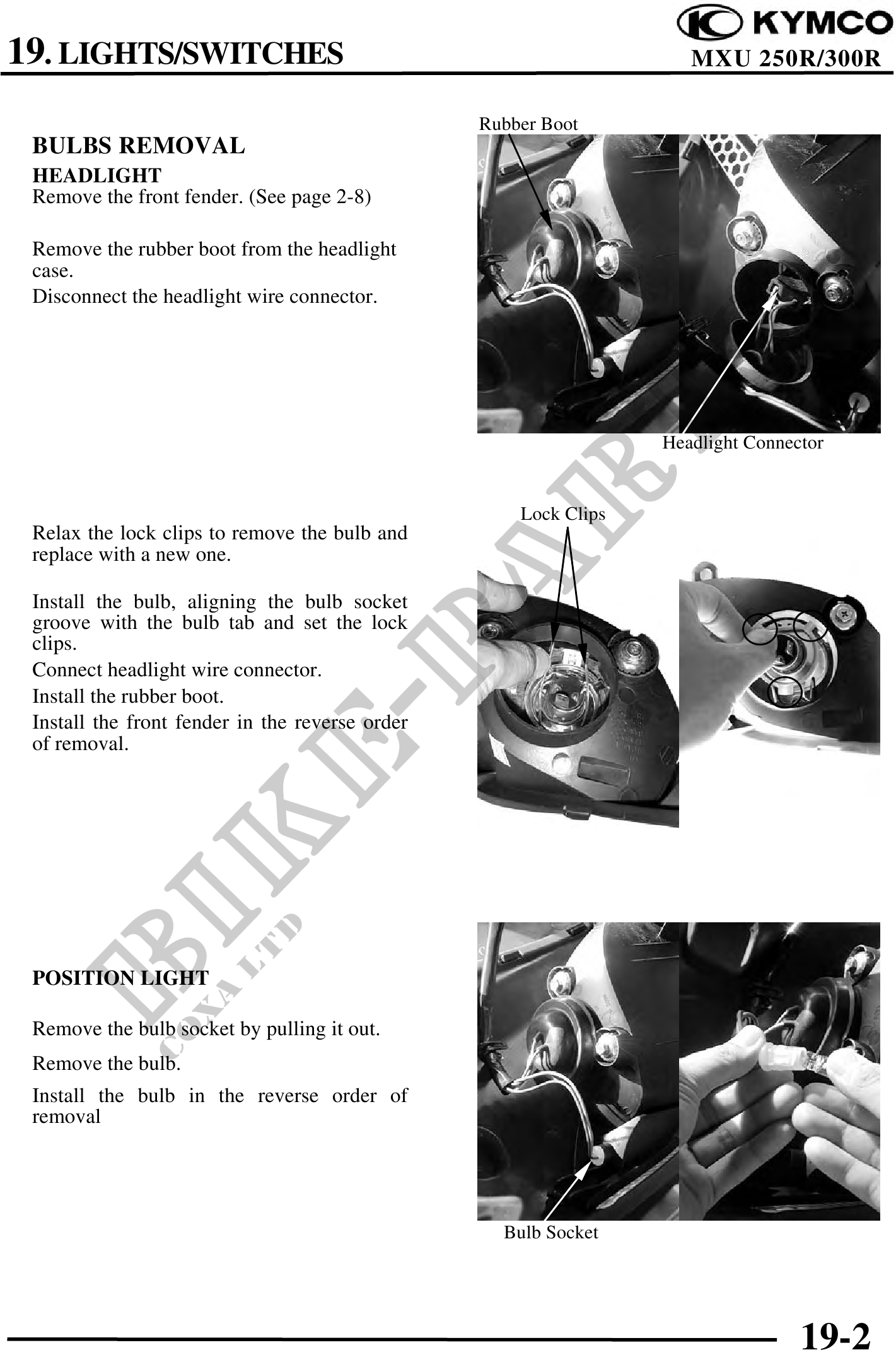

          19. LIGHTS/SWITCHES                                                  MXU 250R/300R

                                                 Rubber Boot
 BULBS REMOVAL
 HEADLIGHT
 Remove the front fender. (See page 2-8)

 Remove the rubber boot from the headlight
 case.
 Disconnect the headlight wire connector.




                                                                  Headlight Connector


                                                     Lock Clips
 Relax the lock clips to remove the bulb and
 replace with a new one.

 Install the bulb, aligning the bulb socket
 groove with the bulb tab and set the lock
 clips.
 Connect headlight wire connector.
 Install the rubber boot.
 Install the front fender in the reverse order
 of removal.




 POSITION LIGHT

 Remove the bulb socket by pulling it out.
 Remove the bulb.
 Install the bulb in the reverse order of
 removal




                                                   Bulb Socket




                                                                                  19-2
