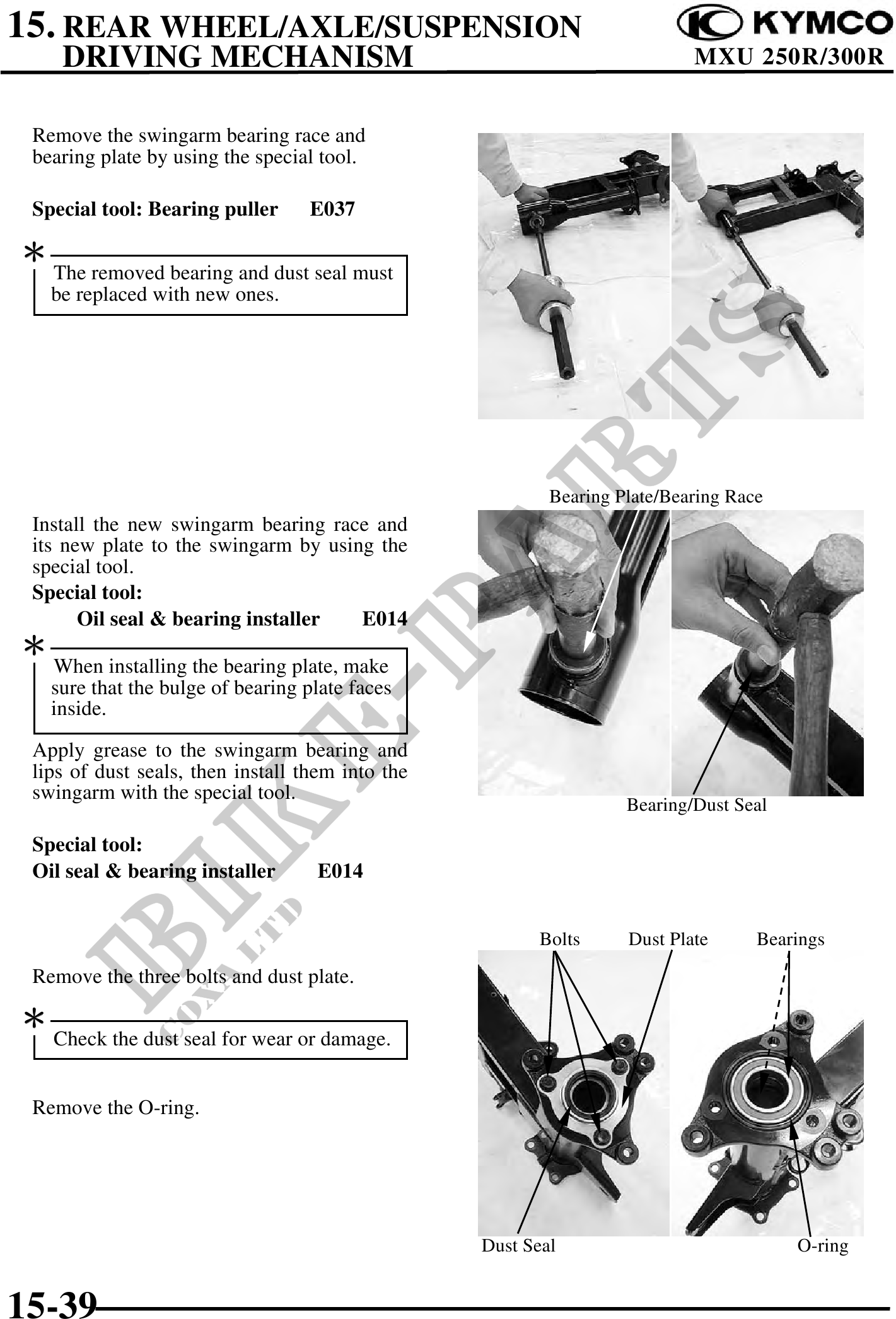

15. REAR WHEEL/AXLE/SUSPENSION
DRIVING MECHANISM MXU 250R/300R
Remove the swingarm bearing race and
bearing plate by using the special tool.
Special tool: Bearing puller E037
The removed bearing and dust seal must
be replaced with new ones.
Bearing Plate/Bearing Race
Install the new swingarm bearing race and
its new plate to the swingarm by using the
special tool.
Special tool:
Oil seal & bearing installer E014
When installing the bearing plate, make
sure that the bulge of bearing plate faces
inside.
Apply grease to the swingarm bearing and
lips of dust seals, then install them into the
swingarm with the special tool.
Bearing/Dust Seal
Special tool:
Oil seal & bearing installer E014
Bolts Dust Plate Bearings
Remove the three bolts and dust plate.
Check the dust seal for wear or damage.
Remove the O-ring.
Dust Seal O-ring
