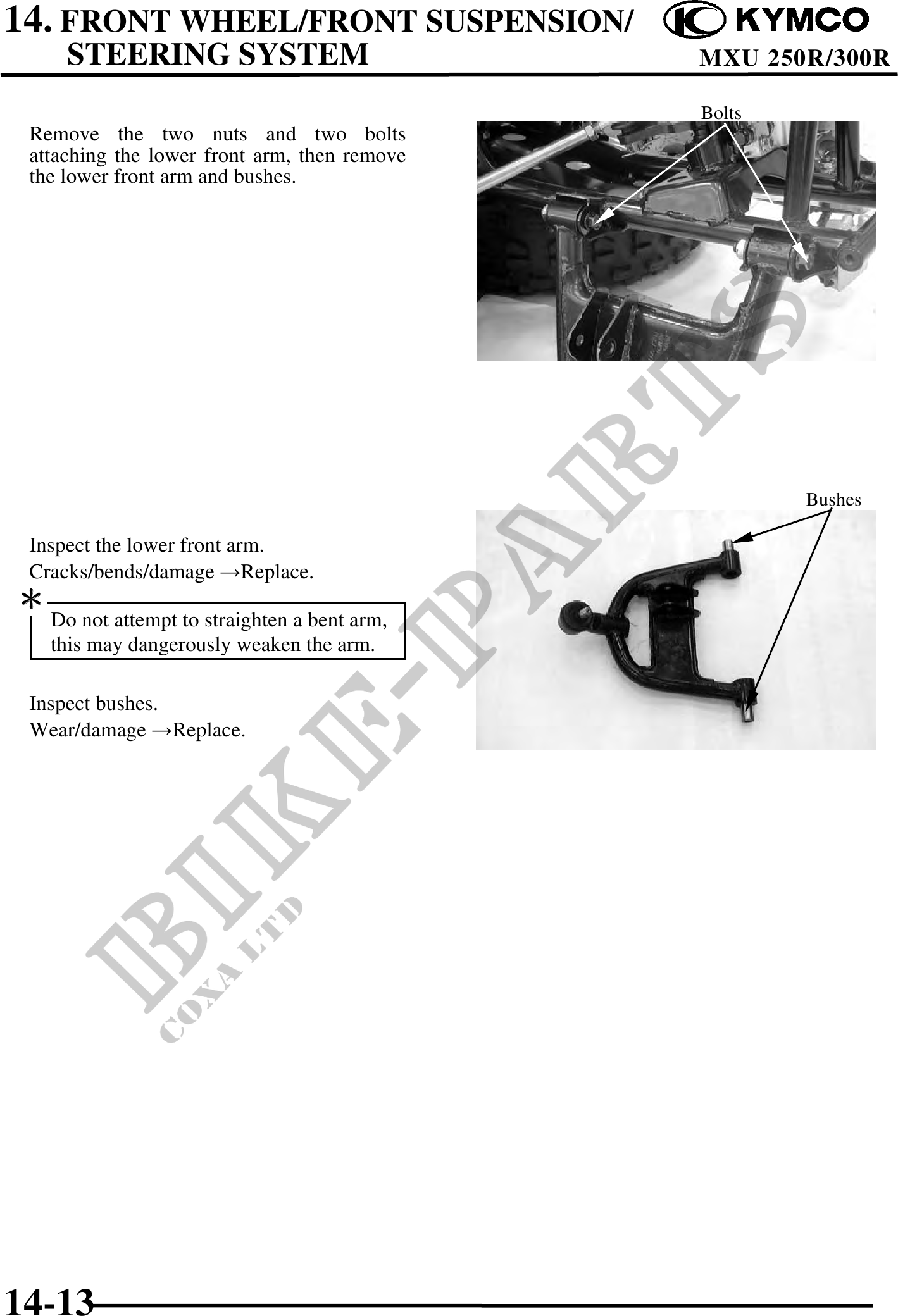

          14. FRONT WHEEL/FRONT SUSPENSION/
     STEERING SYSTEM                          MXU 250R/300R

                                              Bolts
 Remove the two nuts and two bolts
 attaching the lower front arm, then remove
 the lower front arm and bushes.




                                                      Bushes

 Inspect the lower front arm.
 Cracks/bends/damage Replace.

   Do not attempt to straighten a bent arm,
   this may dangerously weaken the arm.

 Inspect bushes.
 Wear/damage Replace.
