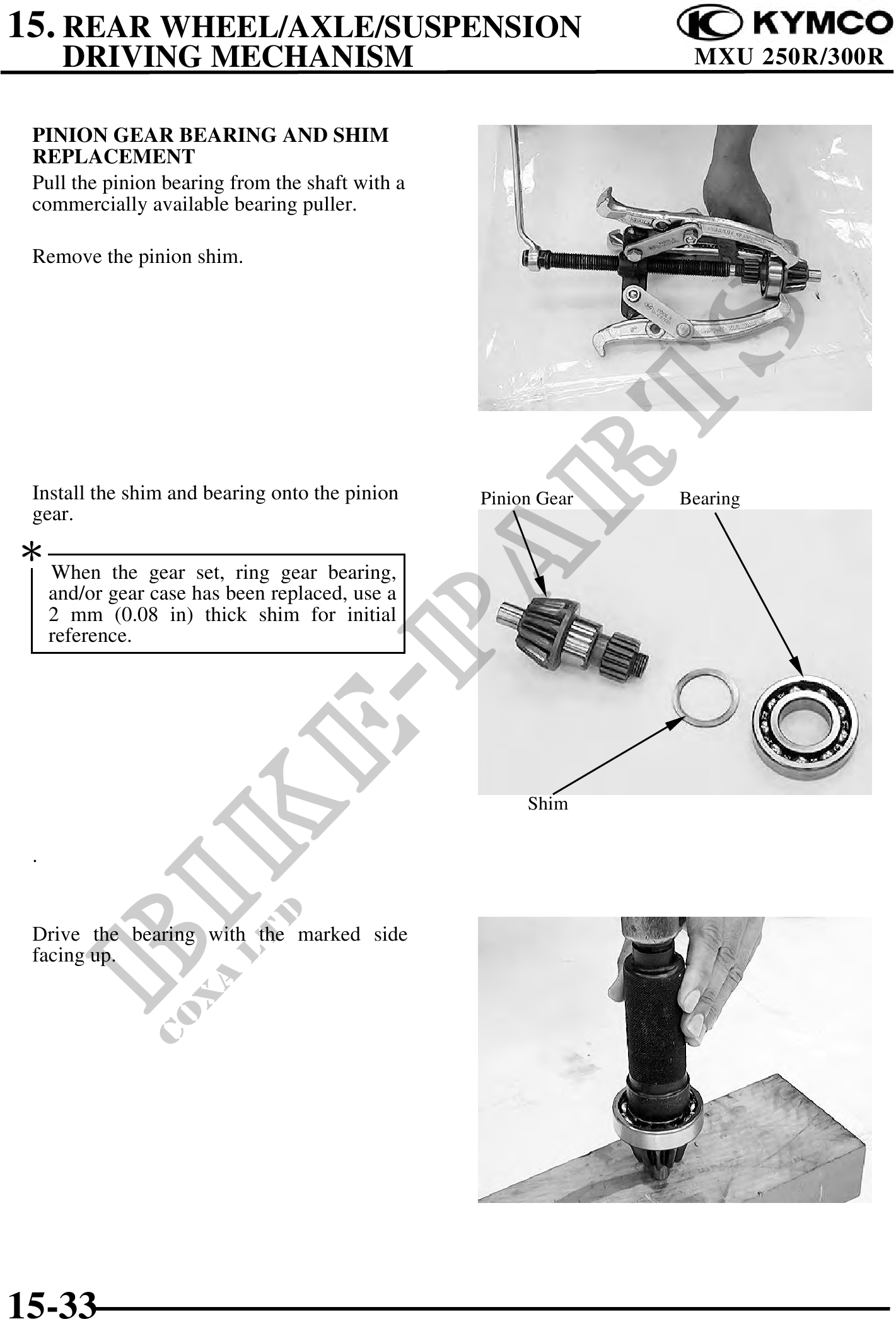

          15. REAR WHEEL/AXLE/SUSPENSION
      DRIVING MECHANISM                                         MXU 250R/300R


 PINION GEAR BEARING AND SHIM
 REPLACEMENT
 Pull the pinion bearing from the shaft with a
 commercially available bearing puller.

 Remove the pinion shim.




 Install the shim and bearing onto the pinion    Pinion Gear   Bearing
 gear.

     When the gear set, ring gear bearing,
     and/or gear case has been replaced, use a
     2 mm (0.08 in) thick shim for initial
     reference.




                                                      Shim

 .


 Drive the bearing with the marked side
 facing up.




15-33
