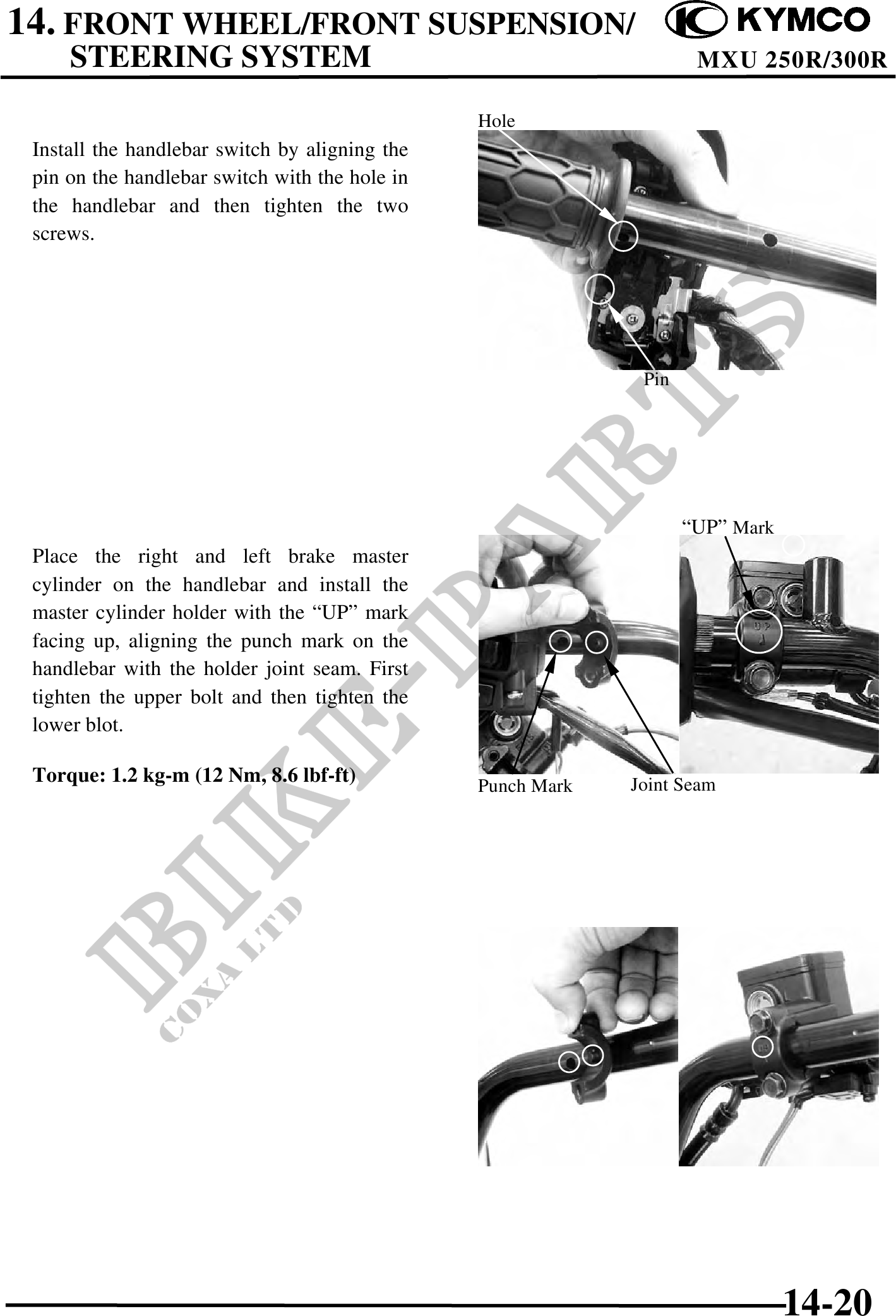

          14. FRONT WHEEL/FRONT SUSPENSION/
     STEERING SYSTEM                                                 MXU 250R/300R

                                                Hole
 Install the handlebar switch by aligning the
 pin on the handlebar switch with the hole in
 the handlebar and then tighten the two
 screws.




                                                              Pin




                                                                    "UP" Mark
 Place the right and left brake master
 cylinder on the handlebar and install the
 master cylinder holder with the "UP" mark
 facing up, aligning the punch mark on the
 handlebar with the holder joint seam. First
 tighten the upper bolt and then tighten the
 lower blot.

 Torque: 1.2 kg-m (12 Nm, 8.6 lbf-ft)           Punch Mark   Joint Seam




                                                                                14-20
