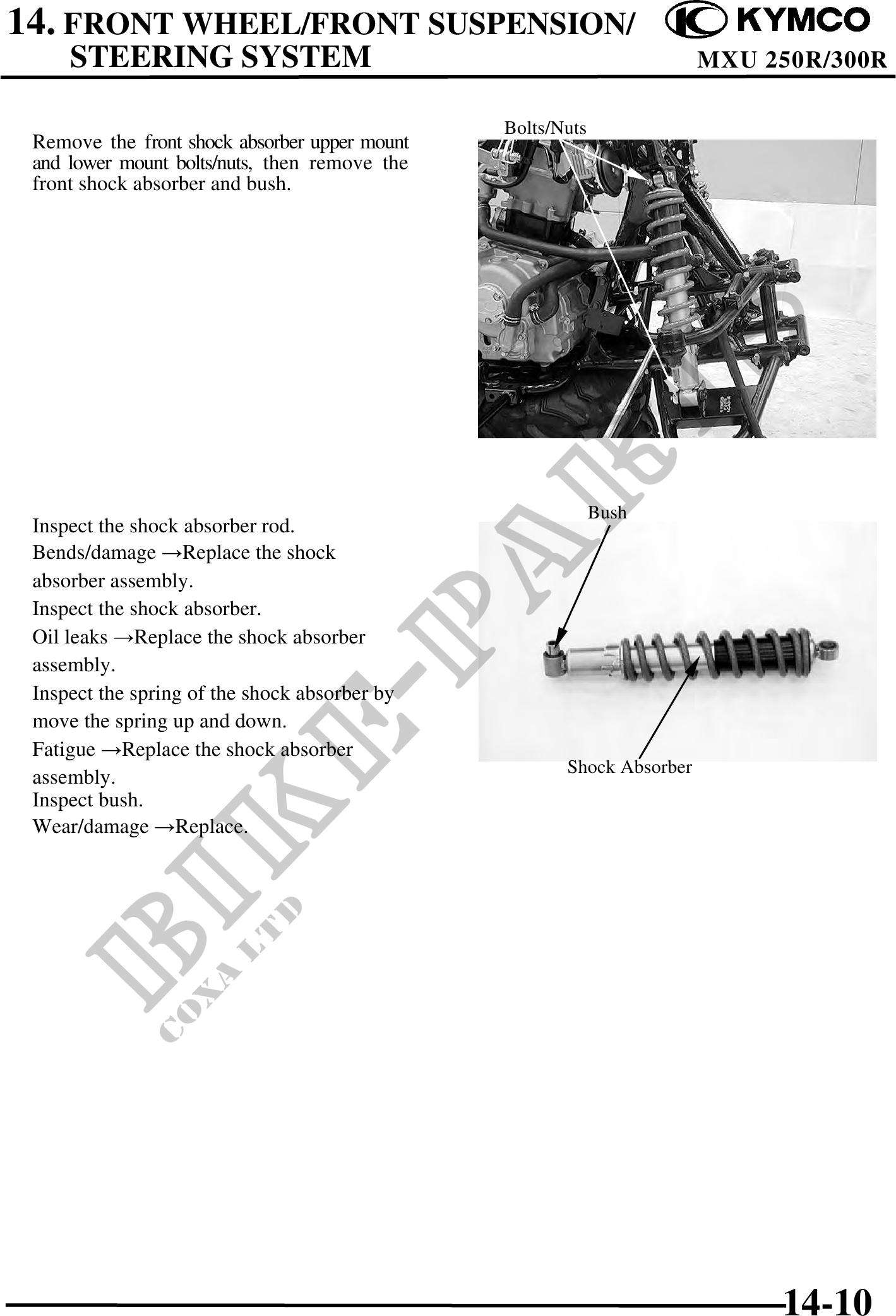

          14. FRONT WHEEL/FRONT SUSPENSION/
     STEERING SYSTEM                                                   MXU 250R/300R

                                               Bolts/Nuts
 Remove the front shock absorber upper mount
 and lower mount bolts/nuts, then remove the
 front shock absorber and bush.




                                                            Bush
 Inspect the shock absorber rod.
 Bends/damage Replace the shock
 absorber assembly.
 Inspect the shock absorber.
 Oil leaks Replace the shock absorber
 assembly.
 Inspect the spring of the shock absorber by
 move the spring up and down.
 Fatigue Replace the shock absorber
                                                      Shock Absorber
 assembly.
 Inspect bush.
 Wear/damage Replace.
