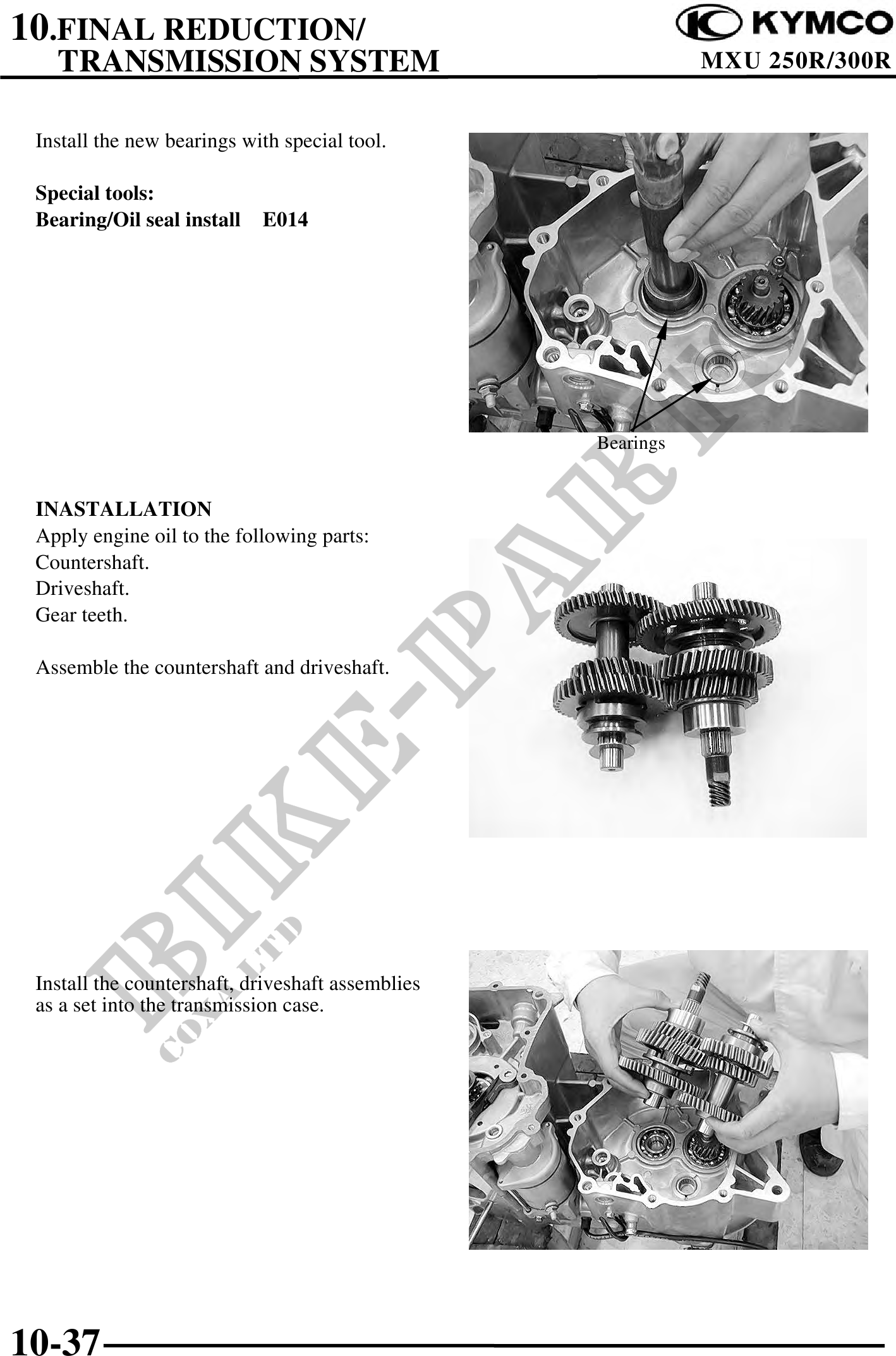

          10.FINAL REDUCTION/
   TRANSMISSION SYSTEM                                        MXU 250R/300R


 Install the new bearings with special tool.

 Special tools:
 Bearing/Oil seal install   E014




                                                   Bearings


 INASTALLATION
 Apply engine oil to the following parts:
 Countershaft.
 Driveshaft.
 Gear teeth.

 Assemble the countershaft and driveshaft.




 Install the countershaft, driveshaft assemblies
 as a set into the transmission case.




10-37
