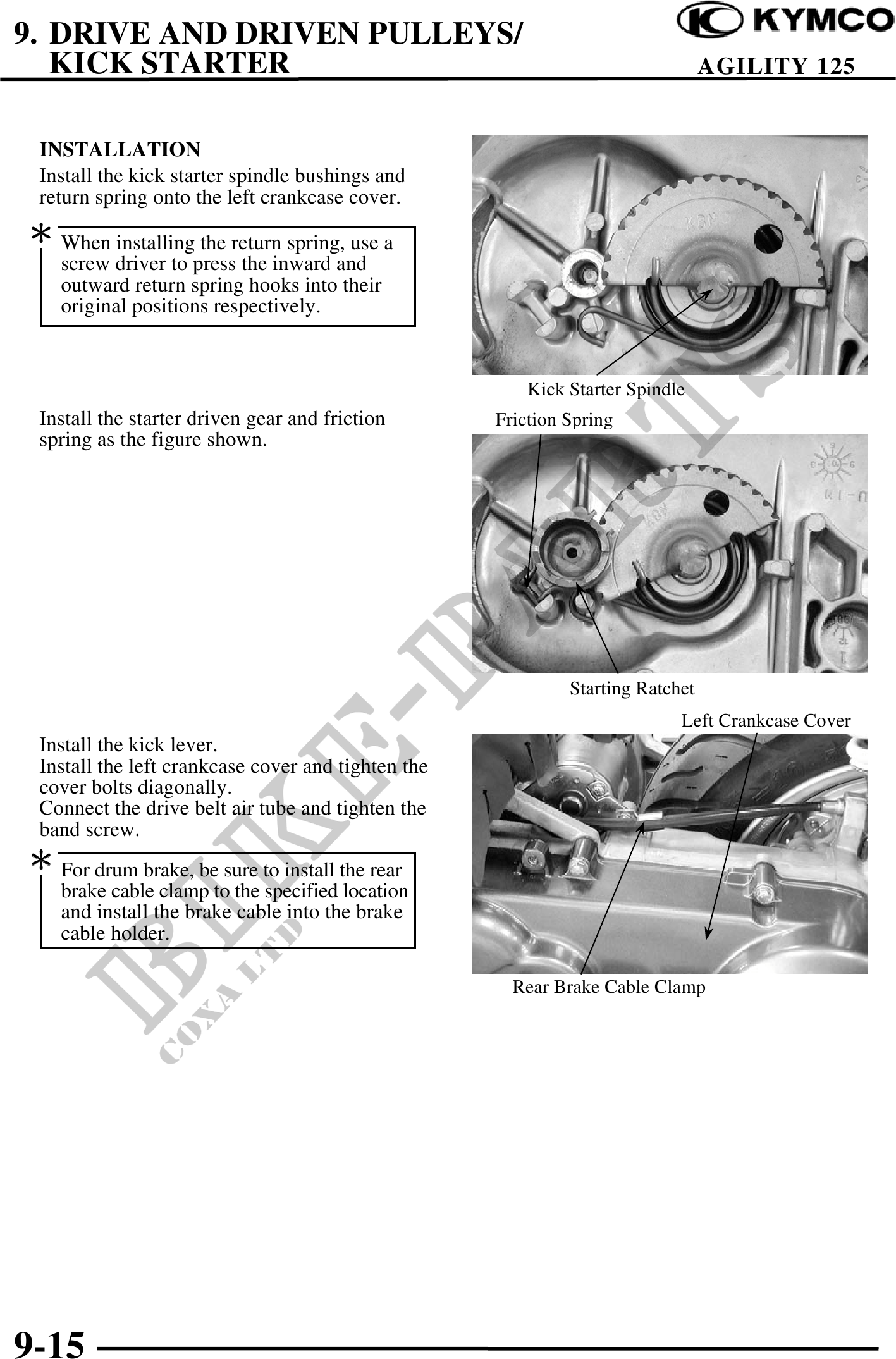

          9. DRIVE AND DRIVEN PULLEYS/
   KICK STARTER                                                                 AGILITY 125


 INSTALLATION
 Install the kick starter spindle bushings and
 return spring onto the left crankcase cover.
 When installing the return spring, use a
    screw driver to press the inward and
    outward return spring hooks into their
    original positions respectively.


                                                        Kick Starter Spindle
 Install the starter driven gear and friction       Friction Spring
 spring as the figure shown.




                                                             Starting Ratchet
                                                                           Left Crankcase Cover
 Install the kick lever.
 Install the left crankcase cover and tighten the
 cover bolts diagonally.
 Connect the drive belt air tube and tighten the
 band screw.
 For drum brake, be sure to install the rear
    brake cable clamp to the specified location
    and install the brake cable into the brake
    cable holder.

                                                      Rear Brake Cable Clamp
