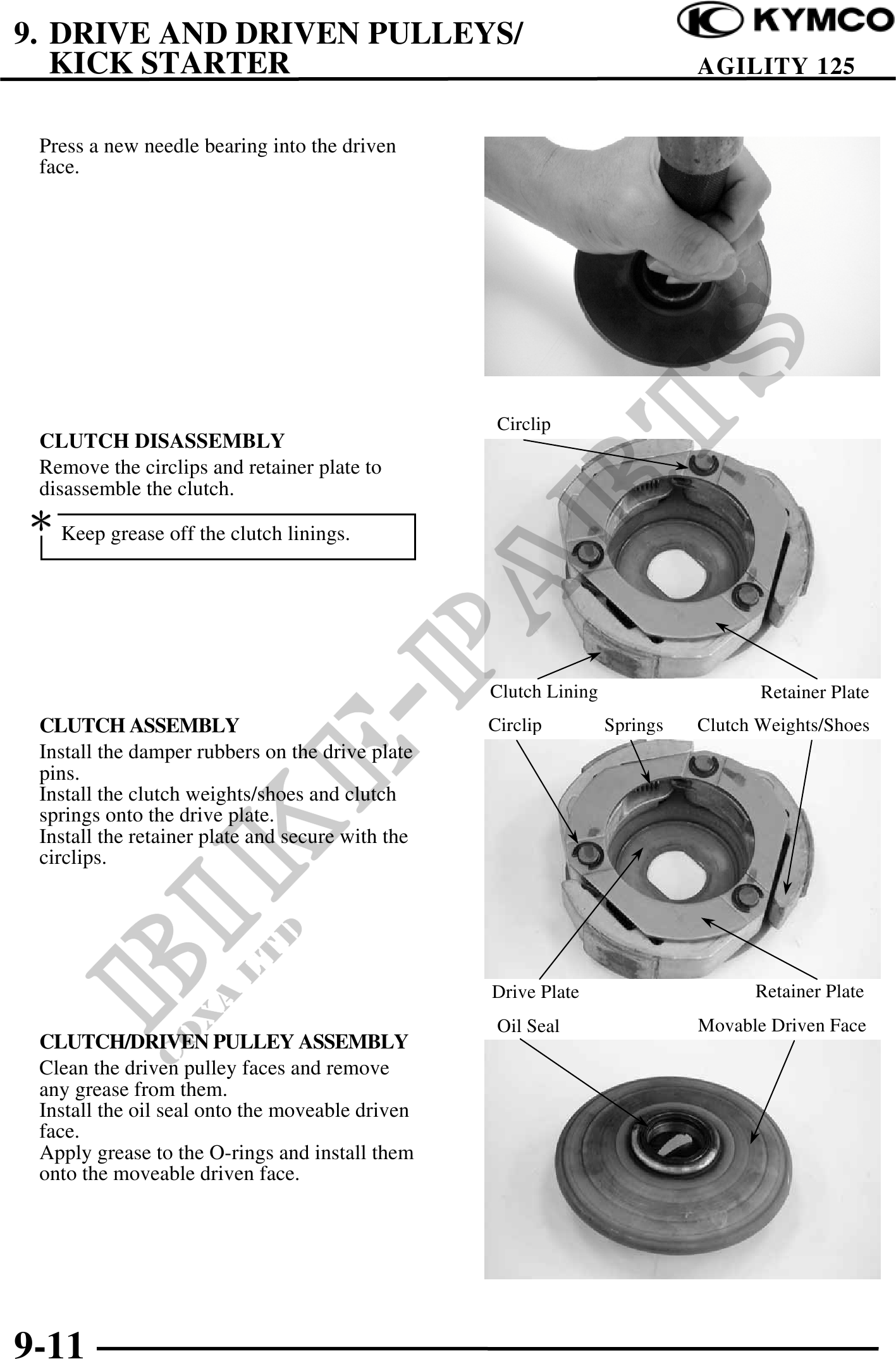

          9. DRIVE AND DRIVEN PULLEYS/
   KICK STARTER                                                             AGILITY 125


 Press a new needle bearing into the driven
 face.




                                                   Circlip
 CLUTCH DISASSEMBLY
 Remove the circlips and retainer plate to
 disassemble the clutch.
 Keep grease off the clutch linings.




                                                  Clutch Lining                    Retainer Plate
 CLUTCH ASSEMBLY                                  Circlip         Springs   Clutch Weights/Shoes
 Install the damper rubbers on the drive plate
 pins.
 Install the clutch weights/shoes and clutch
 springs onto the drive plate.
 Install the retainer plate and secure with the
 circlips.




                                                  Drive Plate                     Retainer Plate
                                                   Oil Seal                 Movable Driven Face
 CLUTCH/DRIVEN PULLEY ASSEMBLY
 Clean the driven pulley faces and remove
 any grease from them.
 Install the oil seal onto the moveable driven
 face.
 Apply grease to the O-rings and install them
 onto the moveable driven face.




9-11
