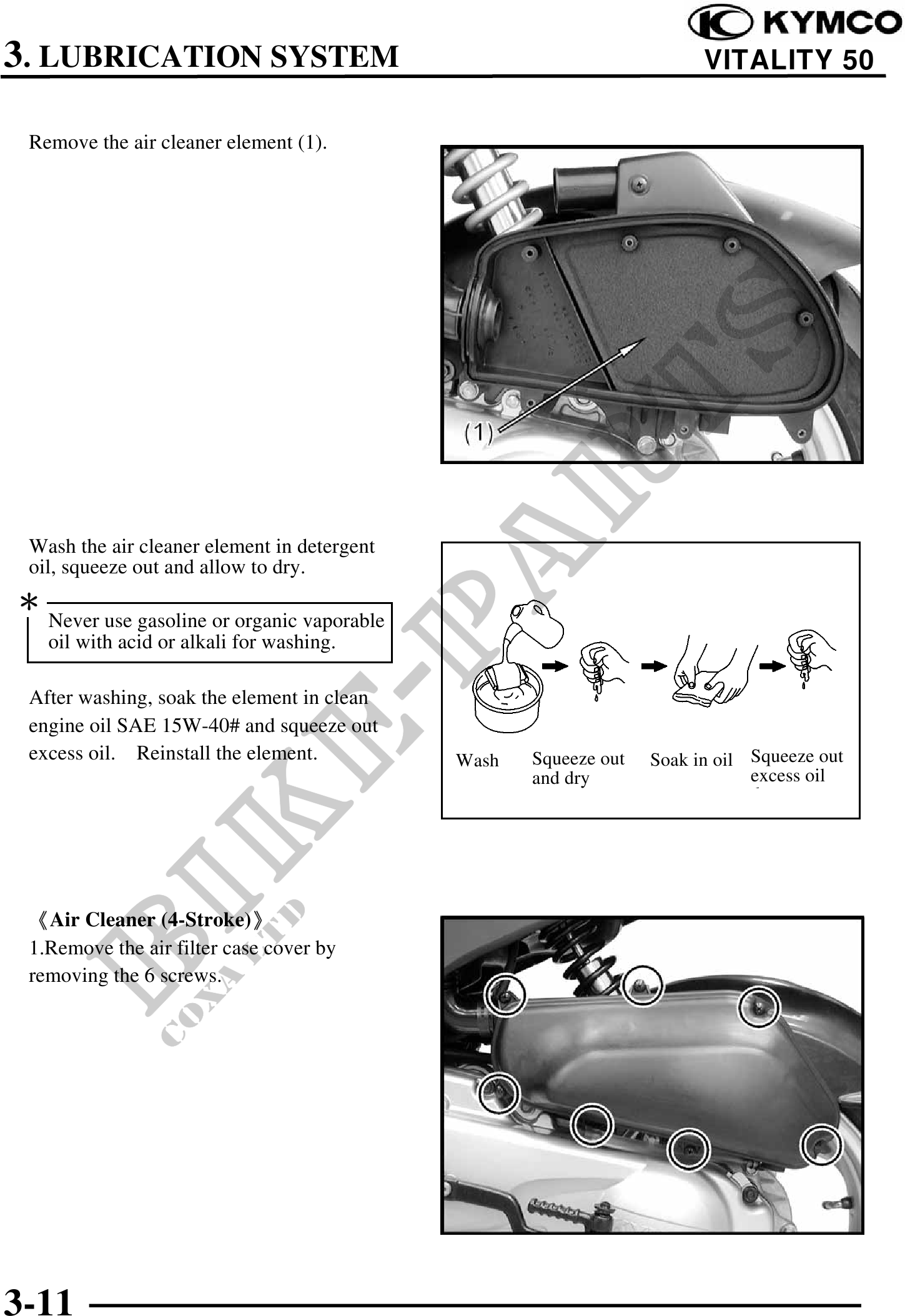

          3. LUBRICATION SYSTEM                                                   VITALITY 50

 Remove the air cleaner element (1).




 Wash the air cleaner element in detergent
 oil, squeeze out and allow to dry.

   Never use gasoline or organic vaporable
   oil with acid or alkali for washing.

 After washing, soak the element in clean
 engine oil SAE 15W-40# and squeeze out
 excess oil. Reinstall the element.          Wash   Squeeze out   Soak in oil Squeeze out
                                                    and dry                   excess oil
                                                                              d




 Air Cleaner (4-Stroke)
 1.Remove the air filter case cover by
 removing the 6 screws.




3-11
