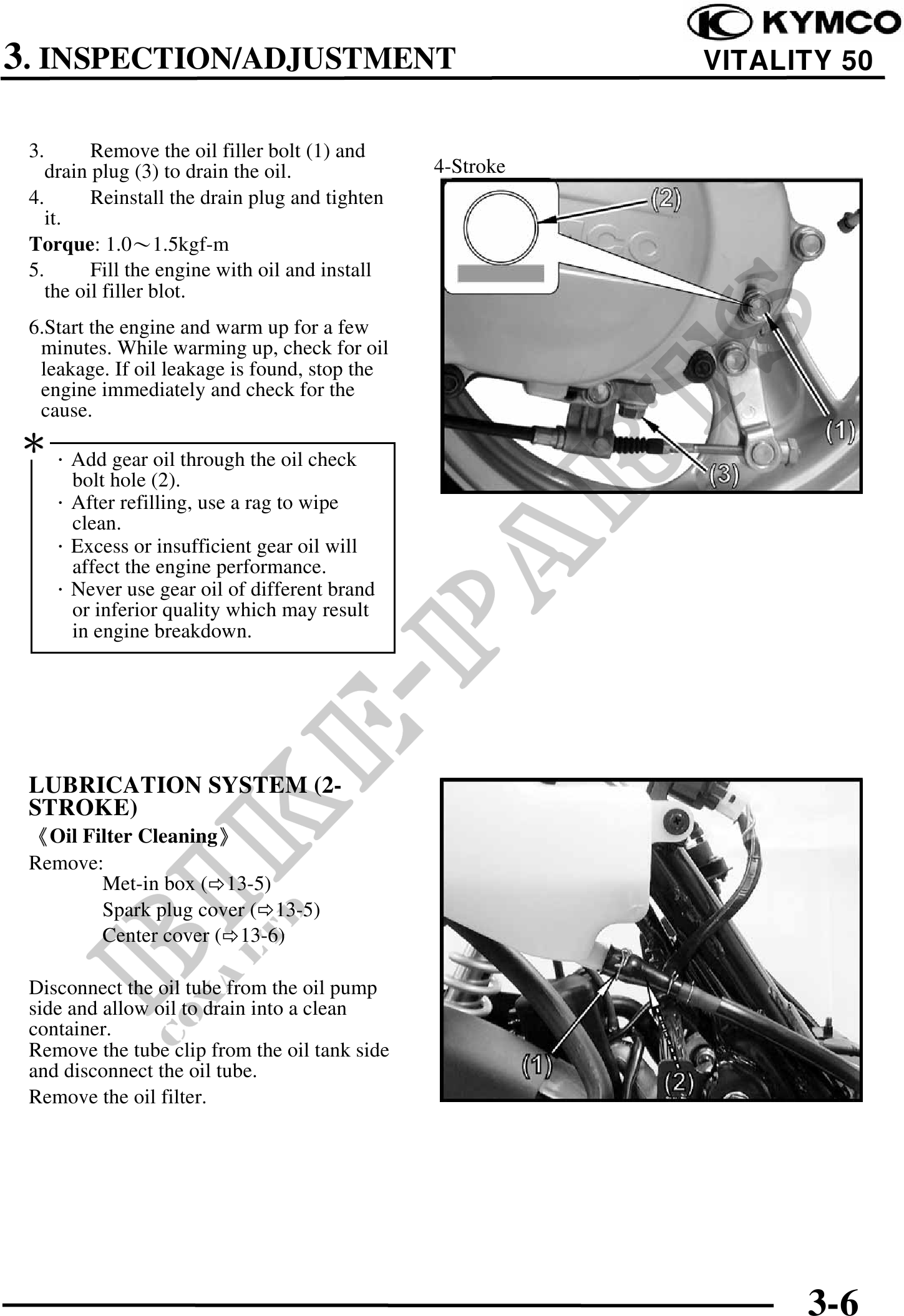

3. INSPECTION/ADJUSTMENT VITALITY 50
3. Remove the oil filler bolt (1) and
drain plug (3) to drain the oil. 4-Stroke
4. Reinstall the drain plug and tighten
it.
Torque: 1.01.5kgf-m
5. Fill the engine with oil and install
the oil filler blot.
6.Start the engine and warm up for a few
minutes. While warming up, check for oil
leakage. If oil leakage is found, stop the
engine immediately and check for the
cause.
Add gear oil through the oil check
bolt hole (2).
After refilling, use a rag to wipe
clean.
Excess or insufficient gear oil will
affect the engine performance.
Never use gear oil of different brand
or inferior quality which may result
in engine breakdown.
LUBRICATION SYSTEM (2-
STROKE)
Oil Filter Cleaning
Remove:
Met-in box ( 13-5)
Spark plug cover ( 13-5)
Center cover ( 13-6)
Disconnect the oil tube from the oil pump
side and allow oil to drain into a clean
container.
Remove the tube clip from the oil tank side
and disconnect the oil tube.
Remove the oil filter.
3-6
