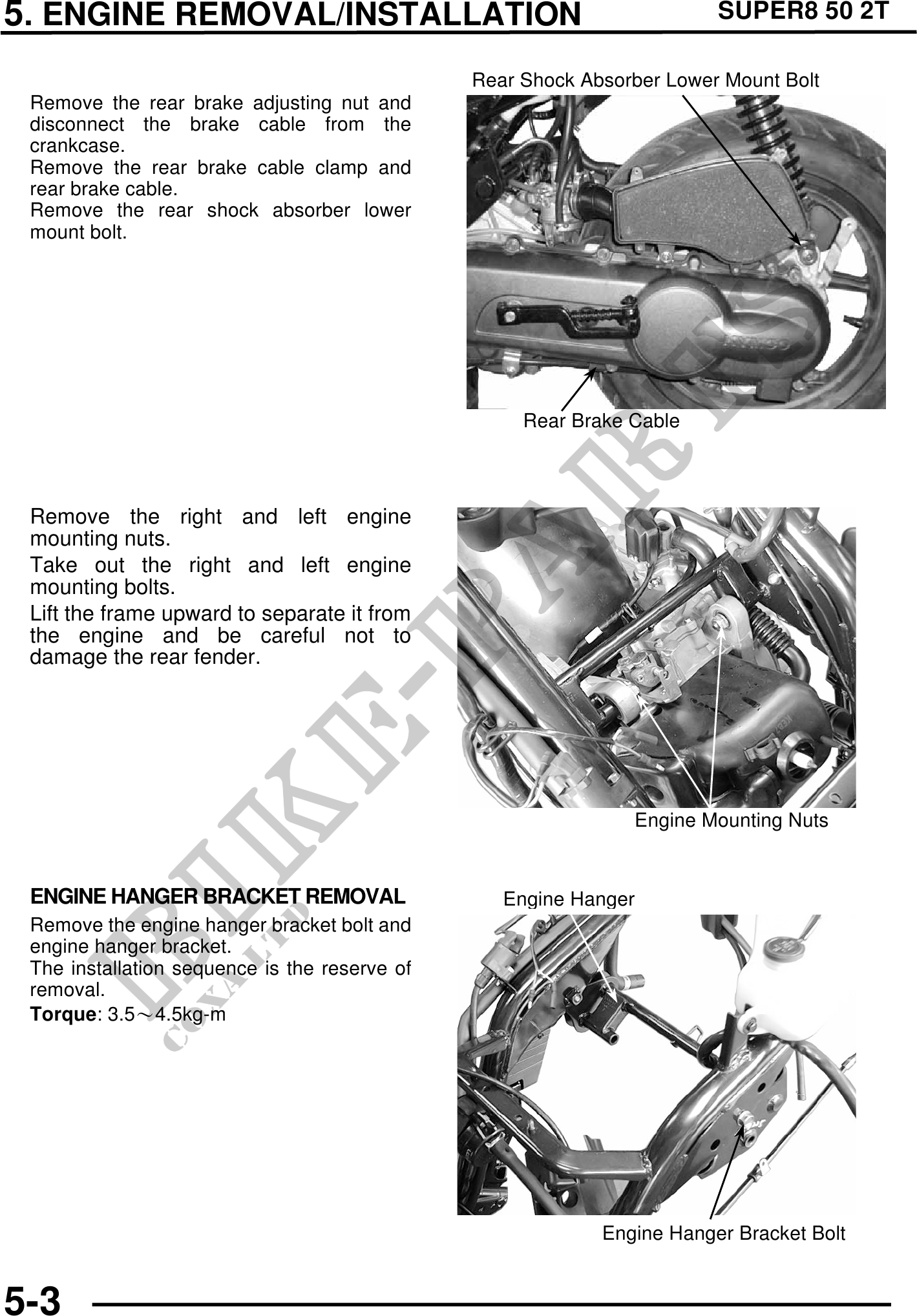

5. ENGINE REMOVAL/INSTALLATION SUPER8 50 2T
Rear Shock Absorber Lower Mount Bolt
Remove the rear brake adjusting nut and
disconnect the brake cable from the
crankcase.
Remove the rear brake cable clamp and
rear brake cable.
Remove the rear shock absorber lower
mount bolt.
Rear Brake Cable
Remove the right and left engine
mounting nuts.
Take out the right and left engine
mounting bolts.
Lift the frame upward to separate it from
the engine and be careful not to
damage the rear fender.
Engine Mounting Nuts
ENGINE HANGER BRACKET REMOVAL Engine Hanger
Remove the engine hanger bracket bolt and
engine hanger bracket.
The installation sequence is the reserve of
removal.
Torque: 3.54.5kg-m
Engine Hanger Bracket Bolt
5-3
