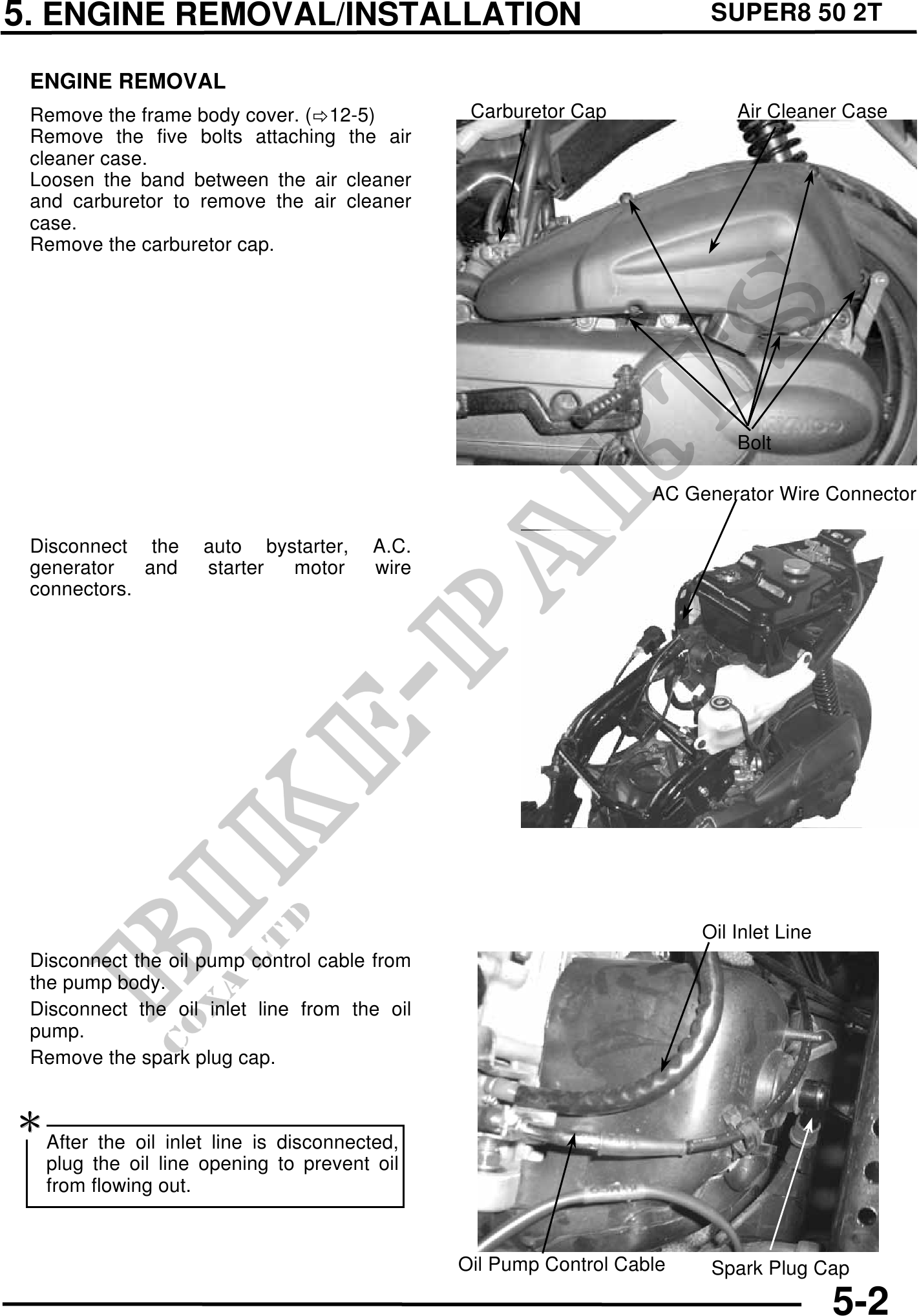

          5. ENGINE REMOVAL/INSTALLATION                                            SUPER8 50 2T

 ENGINE REMOVAL
 Remove the frame body cover. ( 12-5)            Carburetor Cap              Air Cleaner Case
 Remove the five bolts attaching the air
 cleaner case.
 Loosen the band between the air cleaner
 and carburetor to remove the air cleaner
 case.
 Remove the carburetor cap.




                                                                             Bolt

                                                                    AC Generator Wire Connector

 Disconnect the      auto bystarter,     A.C.
 generator   and     starter motor       wire
 connectors.




                                                                         Oil Inlet Line
 Disconnect the oil pump control cable from
 the pump body.
 Disconnect the oil inlet line from the oil
 pump.
 Remove the spark plug cap.



   After the oil inlet line is disconnected,
   plug the oil line opening to prevent oil
   from flowing out.


                                                Oil Pump Control Cable    Spark Plug Cap
