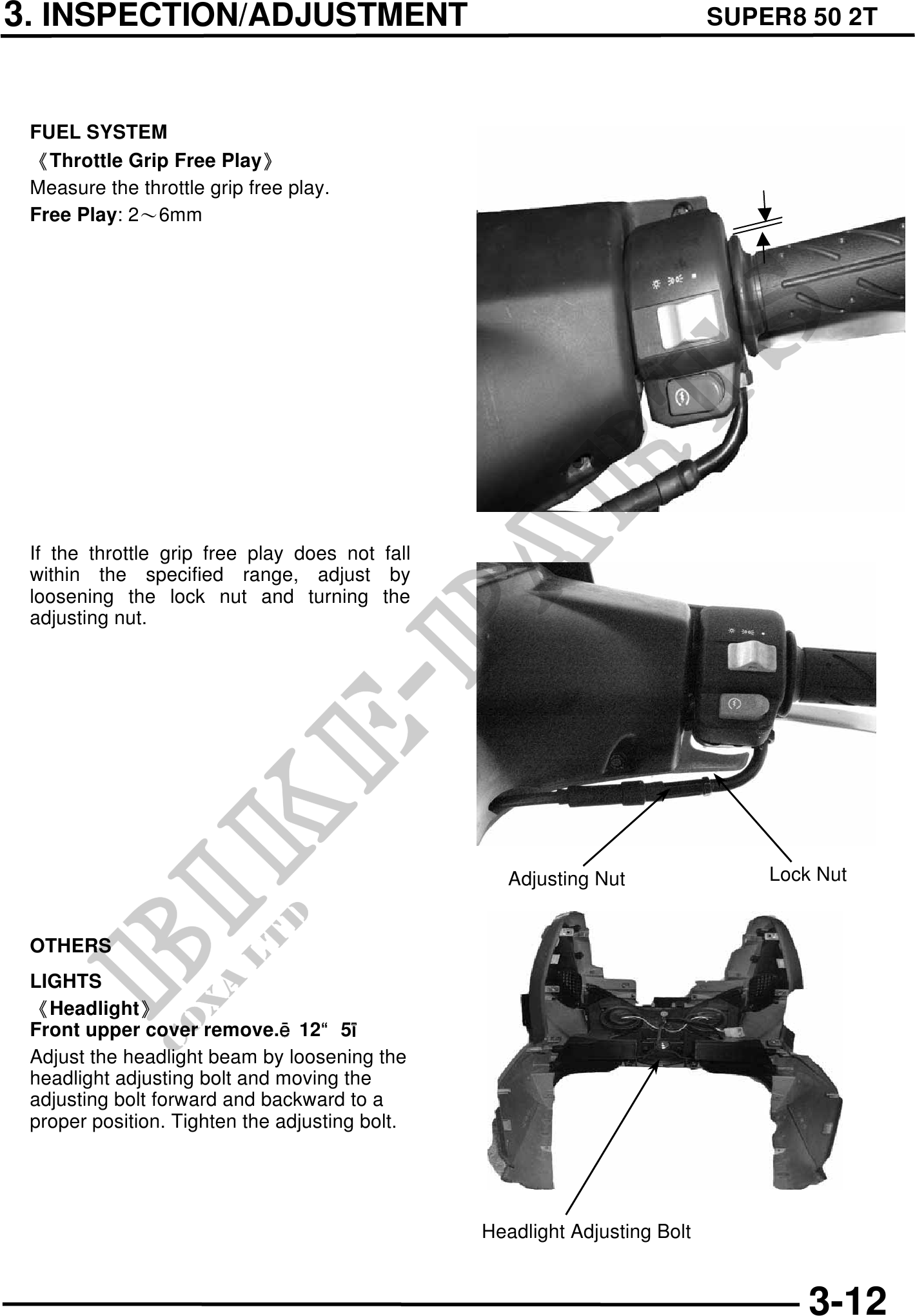

          3. INSPECTION/ADJUSTMENT                                                   SUPER8 50 2T



 FUEL SYSTEM
 Throttle Grip Free Play
 Measure the throttle grip free play.
 Free Play: 26mm




 If the throttle grip free play does not fall
 within the specified range, adjust by
 loosening the lock nut and turning the
 adjusting nut.




                                                   Adjusting Nut               Lock Nut


 OTHERS
 LIGHTS
 Headlight
 Front upper cover remove.12--5
 Adjust the headlight beam by loosening the
 headlight adjusting bolt and moving the
 adjusting bolt forward and backward to a
 proper position. Tighten the adjusting bolt.




                                                Headlight Adjusting Bolt


                                                                                   3-12
