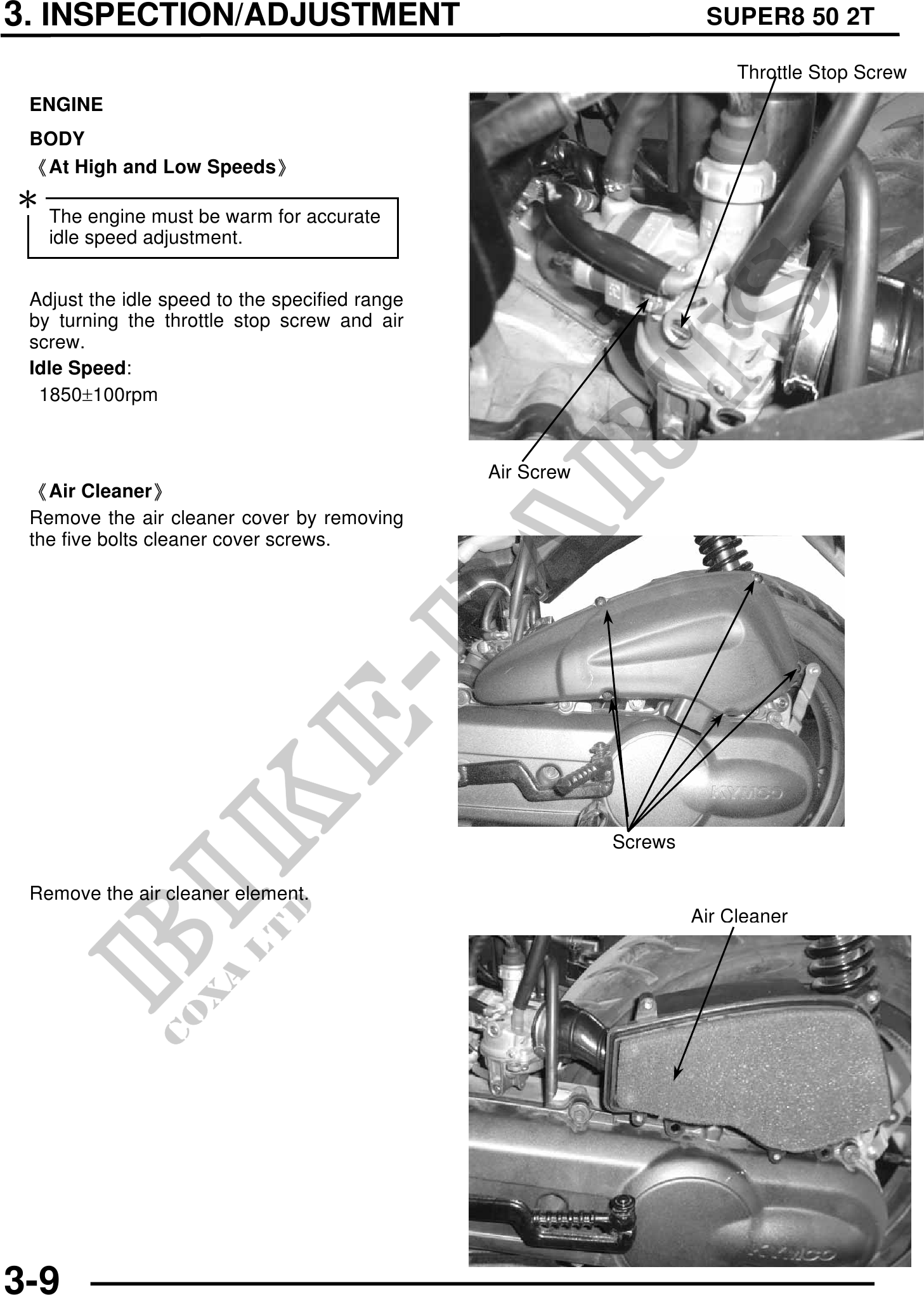

          3. INSPECTION/ADJUSTMENT                                              SUPER8 50 2T

                                                                          Throttle Stop Screw
 ENGINE
 BODY
 At High and Low Speeds

   The engine must be warm for accurate
   idle speed adjustment.


 Adjust the idle speed to the specified range
 by turning the throttle stop screw and air
 screw.
 Idle Speed:
  1850100rpm



                                                Air Screw
 Air Cleaner
 Remove the air cleaner cover by removing
 the five bolts cleaner cover screws.




                                                            Screws

 Remove the air cleaner element.
                                                                     Air Cleaner




3-9
