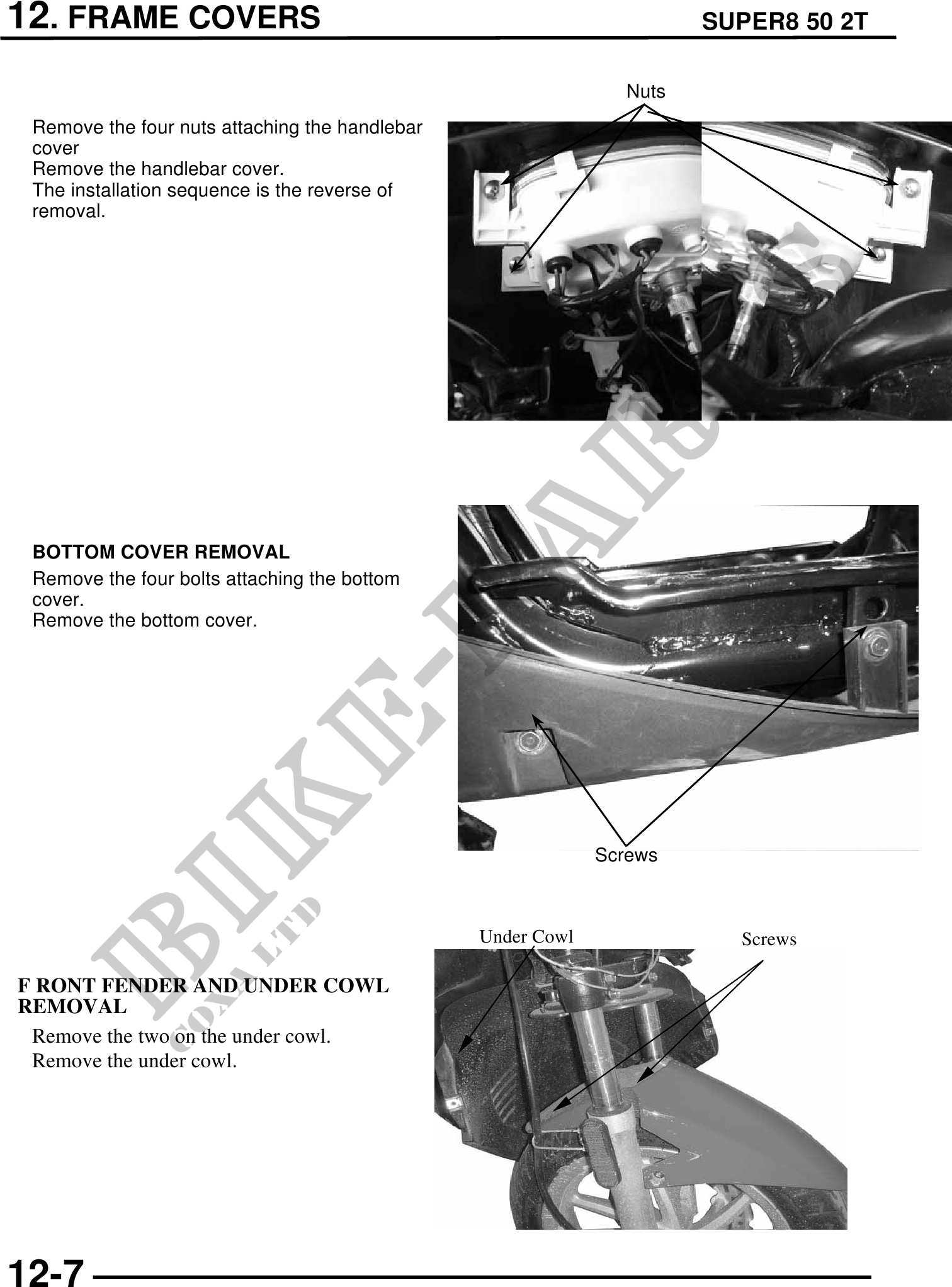

12. FRAME COVERS SUPER8 50 2T
Nuts
Remove the four nuts attaching the handlebar
cover
Remove the handlebar cover.
The installation sequence is the reverse of
removal.
BOTTOM COVER REMOVAL
Remove the four bolts attaching the bottom
cover.
Remove the bottom cover.
Screws
Under Cowl Screws
F RONT FENDER AND UNDER COWL
REMOVAL
Remove the two on the under cowl.
Remove the under cowl.
12-7
