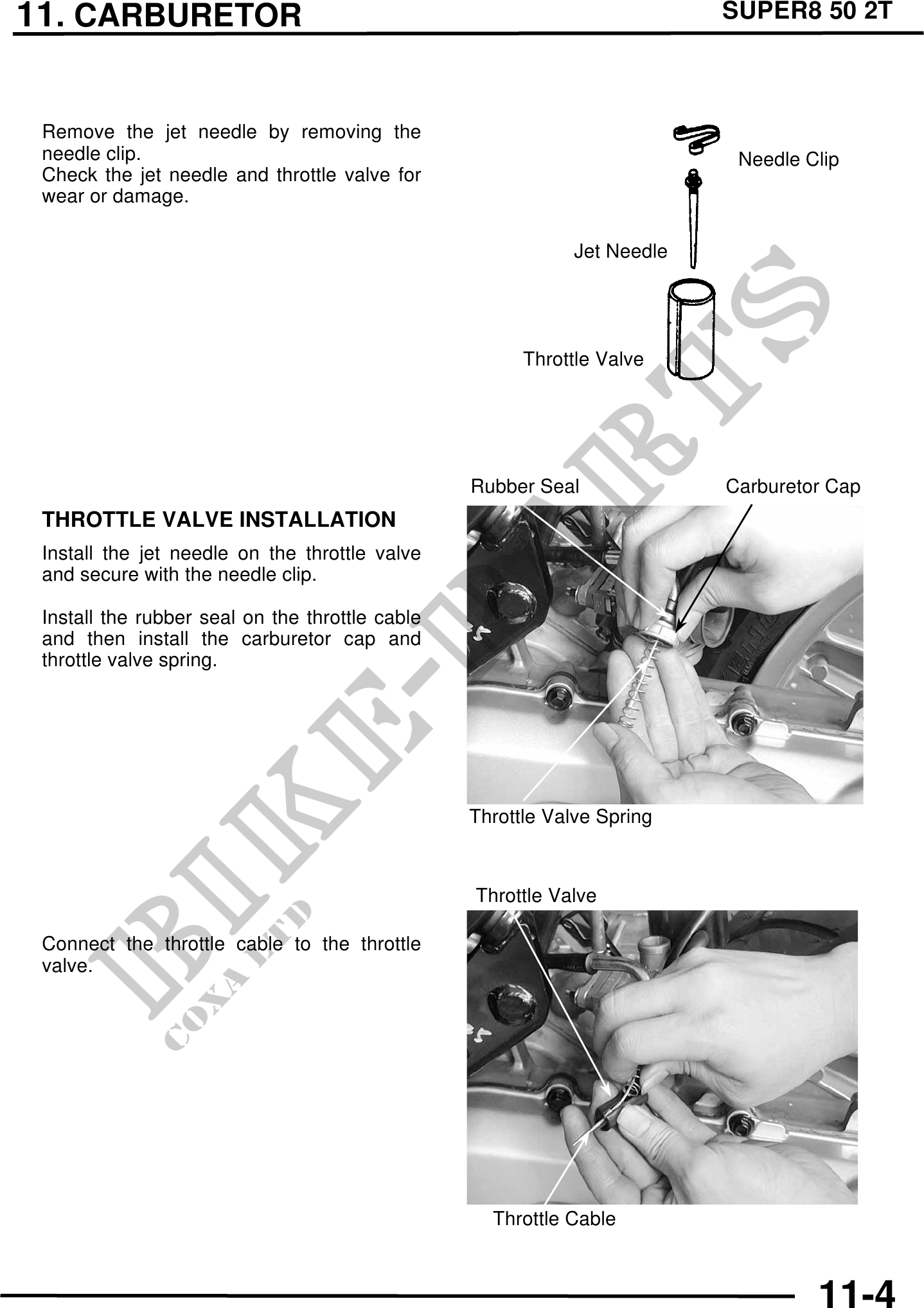

          11. CARBURETOR                                                            SUPER8 50 2T



 Remove the jet needle by removing the
 needle clip.                                                              Needle Clip
 Check the jet needle and throttle valve for
 wear or damage.

                                                             Jet Needle




                                                       Throttle Valve




                                                 Rubber Seal              Carburetor Cap
 THROTTLE VALVE INSTALLATION
 Install the jet needle on the throttle valve
 and secure with the needle clip.

 Install the rubber seal on the throttle cable
 and then install the carburetor cap and
 throttle valve spring.




                                                 Throttle Valve Spring



                                                 Throttle Valve

 Connect the throttle cable to the throttle
 valve.




                                                   Throttle Cable
