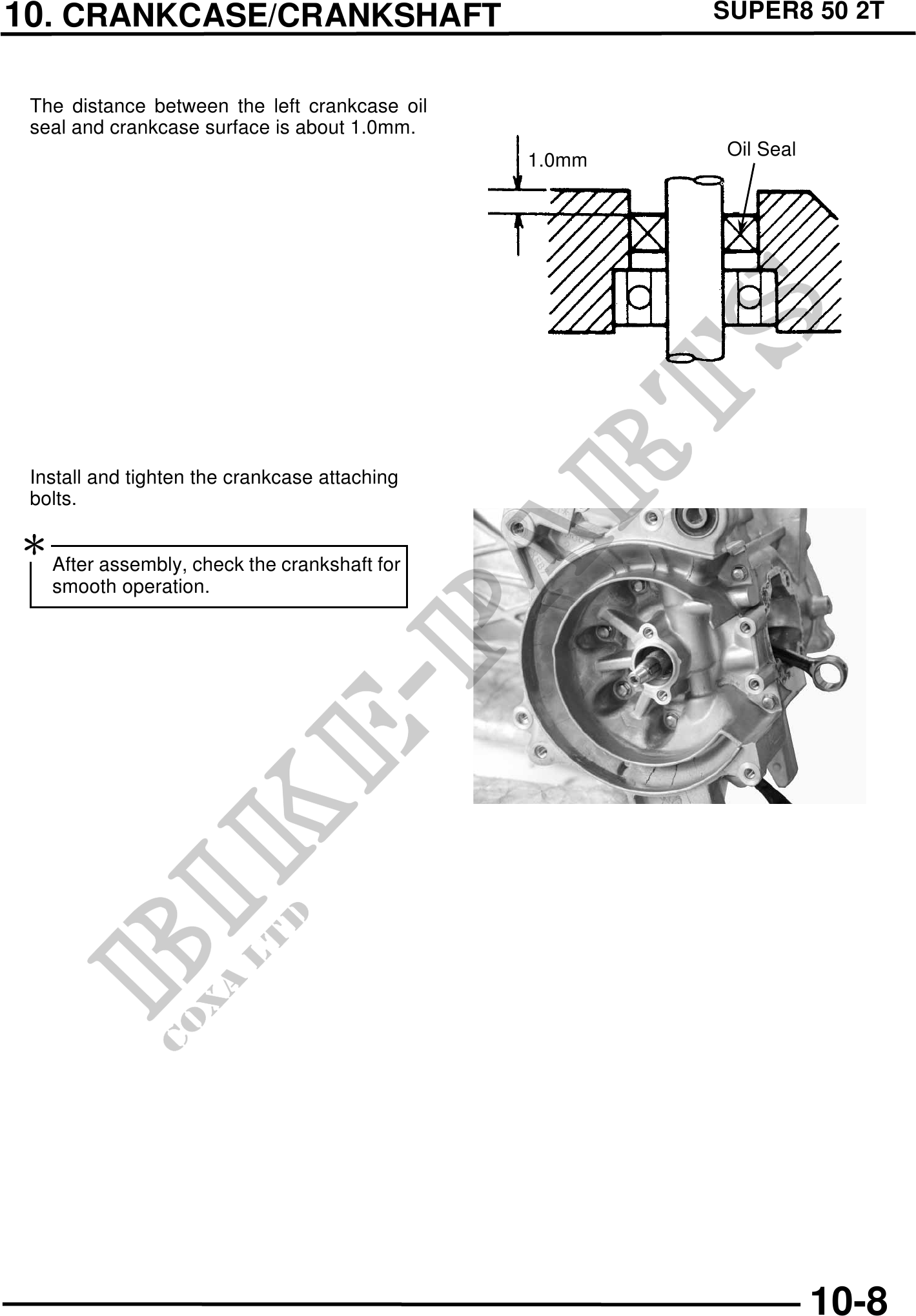

          10. CRANKCASE/CRANKSHAFT                               SUPER8 50 2T


 The distance between the left crankcase oil
 seal and crankcase surface is about 1.0mm.
                                                       Oil Seal
                                               1.0mm




 Install and tighten the crankcase attaching
 bolts.


   After assembly, check the crankshaft for
   smooth operation.




                                                                  10-8
