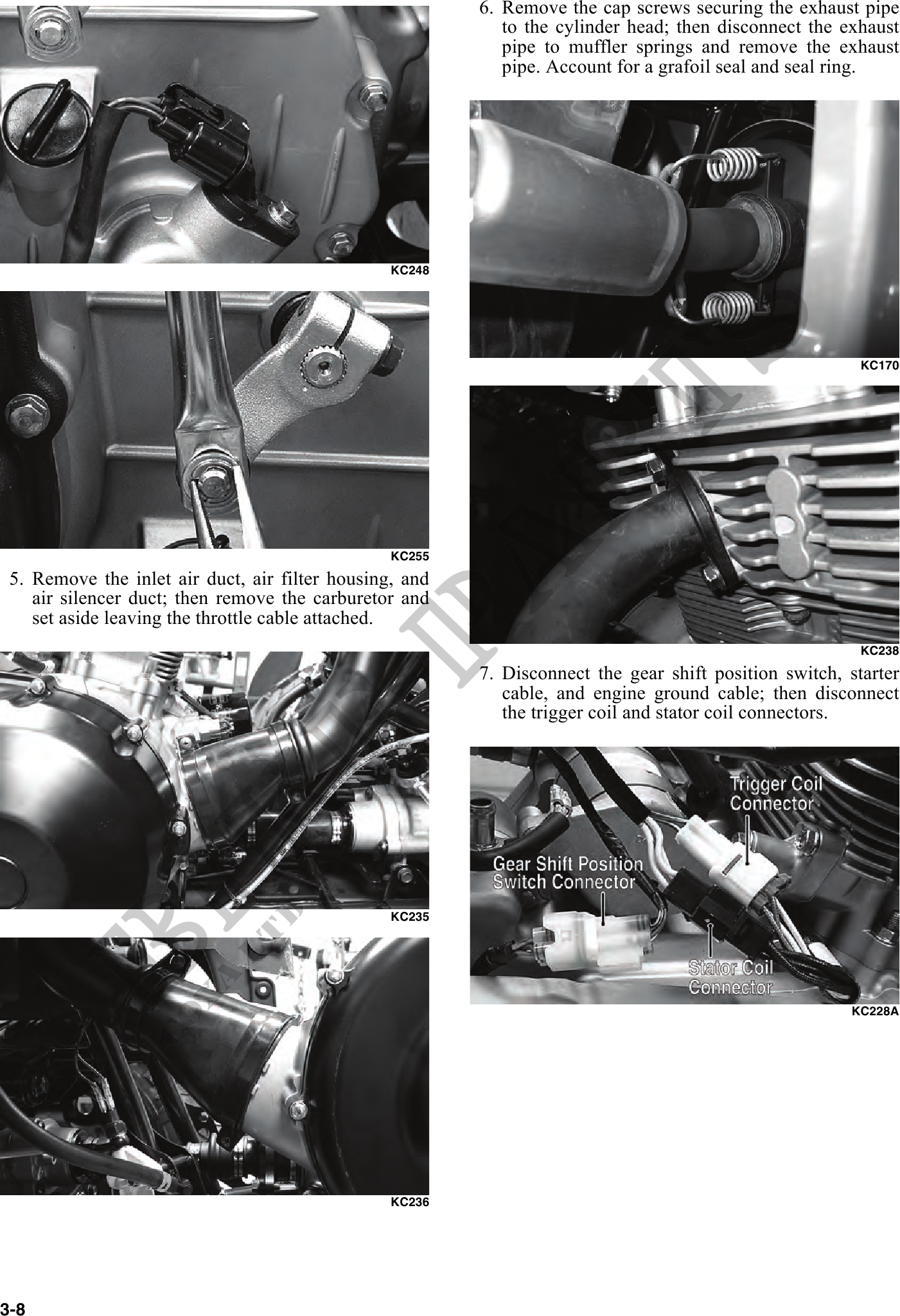

                                                                   6. Remove the cap screws securing the exhaust pipe
                                                            to the cylinder head; then disconnect the exhaust
                                                            pipe to muffler springs and remove the exhaust
                                                            pipe. Account for a grafoil seal and seal ring.




                                                 KC248




                                                                                                         KC170




                                                 KC255
 5. Remove the inlet air duct, air filter housing, and
    air silencer duct; then remove the carburetor and
    set aside leaving the throttle cable attached.
                                                                                                         KC238
                                                         7. Disconnect the gear shift position switch, starter
                                                            cable, and engine ground cable; then disconnect
                                                            the trigger coil and stator coil connectors.




                                                 KC235




                                                                                                       KC228A




                                                 KC236




3-8
