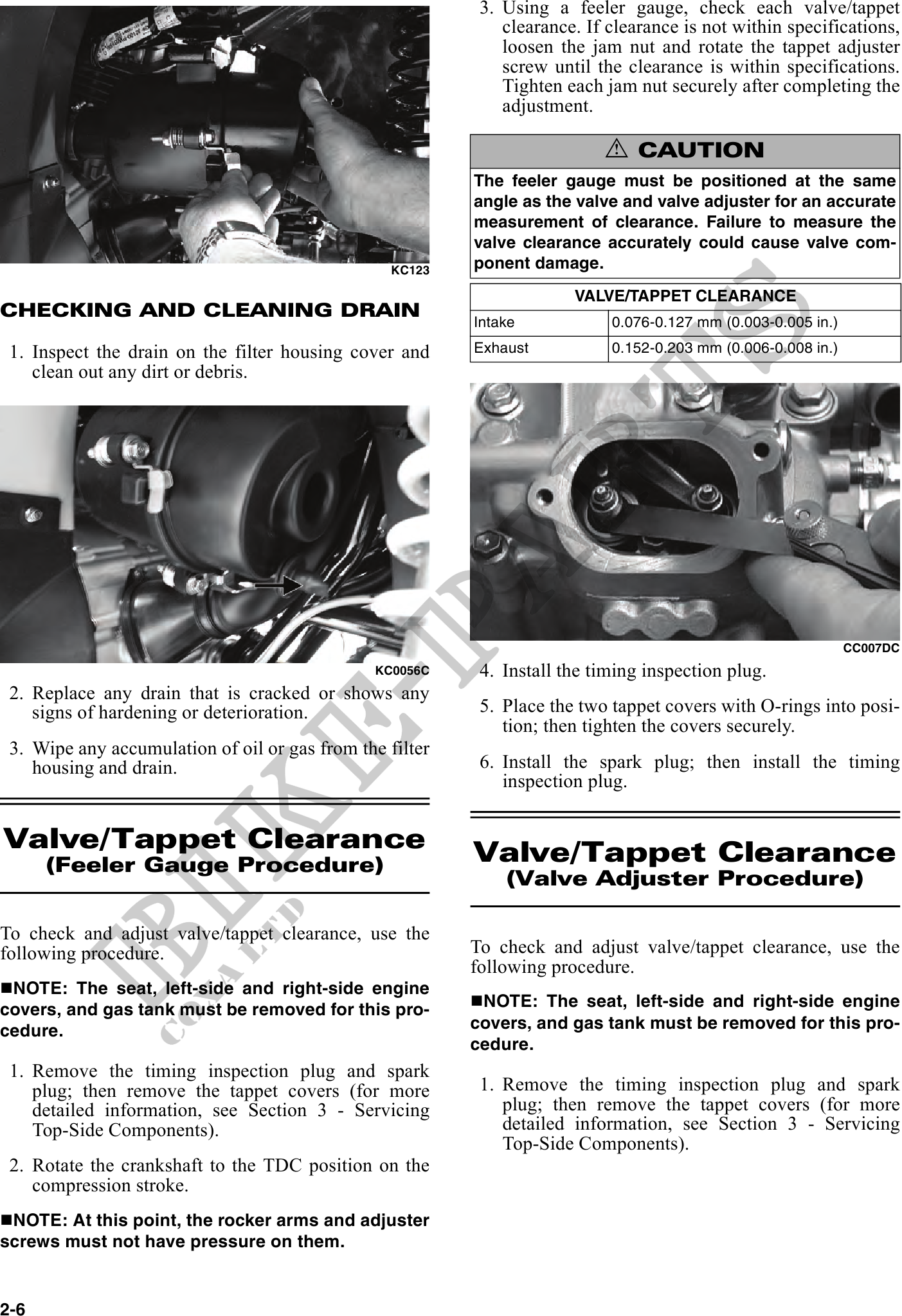

                                                                     3. Using a feeler gauge, check each valve/tappet
                                                              clearance. If clearance is not within specifications,
                                                              loosen the jam nut and rotate the tappet adjuster
                                                              screw until the clearance is within specifications.
                                                              Tighten each jam nut securely after completing the
                                                              adjustment.

                                                                           ! CAUTION
                                                          The feeler gauge must be positioned at the same
                                                          angle as the valve and valve adjuster for an accurate
                                                          measurement of clearance. Failure to measure the
                                                          valve clearance accurately could cause valve com-
                                                  KC123   ponent damage.
                                                                       VALVE/TAPPET CLEARANCE
CHECKING AND CLEANING DRAIN
                                                          Intake            0.076-0.127 mm (0.003-0.005 in.)

 1. Inspect the drain on the filter housing cover and     Exhaust           0.152-0.203 mm (0.006-0.008 in.)
    clean out any dirt or debris.




                                                                                                               CC007DC
                                               KC0056C     4. Install the timing inspection plug.
 2. Replace any drain that is cracked or shows any
    signs of hardening or deterioration.                   5. Place the two tappet covers with O-rings into posi-
                                                              tion; then tighten the covers securely.
 3. Wipe any accumulation of oil or gas from the filter
    housing and drain.                                     6. Install the spark plug; then install the timing
                                                              inspection plug.


Valve/Tappet Clearance                                    Valve/Tappet Clearance
      (Feeler Gauge Procedure)
                                                              (Valve Adjuster Procedure)

To check and adjust valve/tappet clearance, use the
following procedure.                                      To check and adjust valve/tappet clearance, use the
                                                          following procedure.
 NOTE: The seat, left-side and right-side engine
covers, and gas tank must be removed for this pro-         NOTE: The seat, left-side and right-side engine
cedure.                                                   covers, and gas tank must be removed for this pro-
                                                          cedure.
 1. Remove the timing inspection plug and spark
    plug; then remove the tappet covers (for more          1. Remove the timing inspection plug and spark
    detailed information, see Section 3 - Servicing           plug; then remove the tappet covers (for more
    Top-Side Components).                                     detailed information, see Section 3 - Servicing
                                                              Top-Side Components).
 2. Rotate the crankshaft to the TDC position on the
    compression stroke.
 NOTE: At this point, the rocker arms and adjuster
screws must not have pressure on them.


2-6
