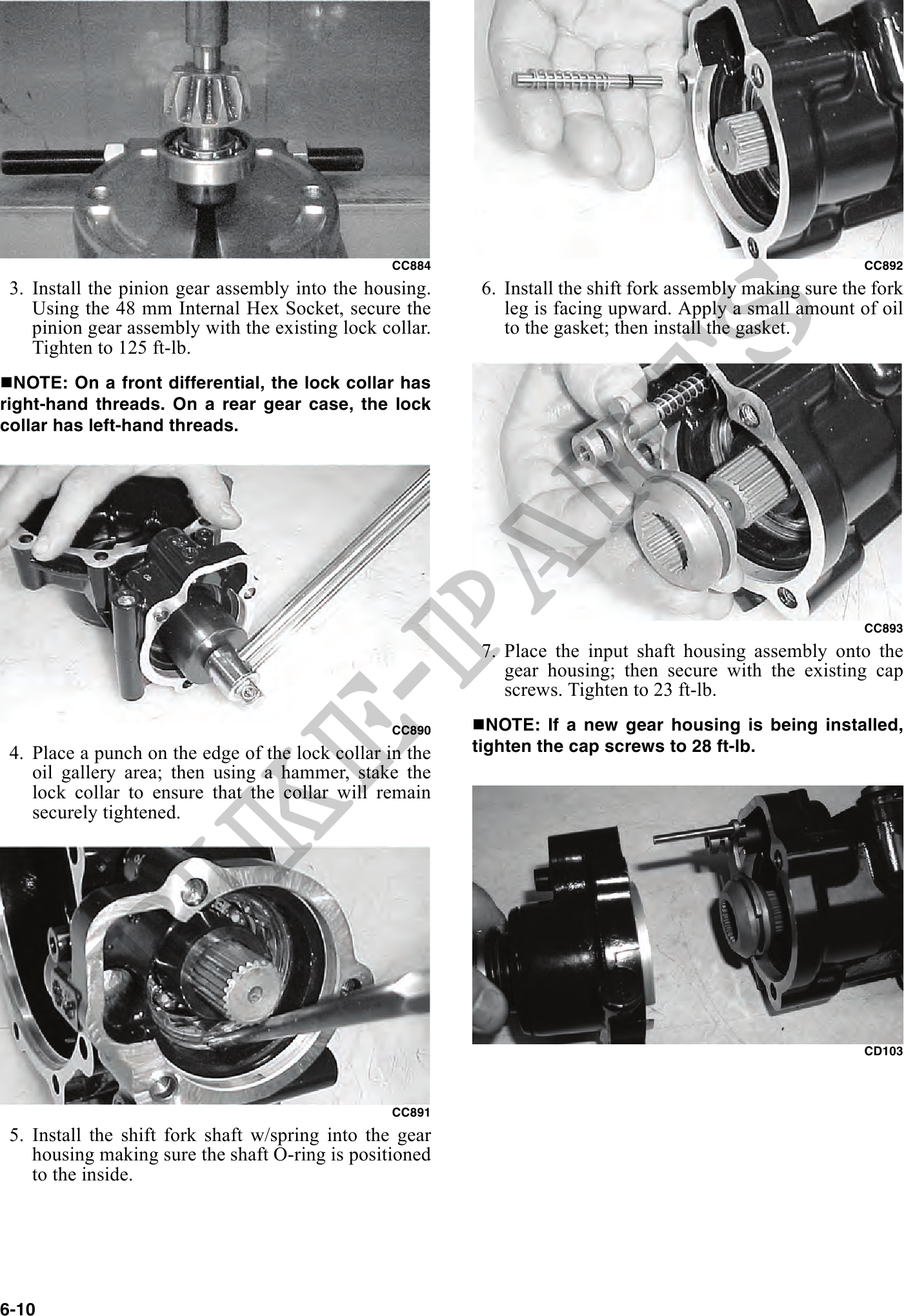

 3. Install the pinion gear assembly into the housing.     6. Install the shift fork assembly making sure the fork
    Using the 48 mm Internal Hex Socket, secure the           leg is facing upward. Apply a small amount of oil
    pinion gear assembly with the existing lock collar.       to the gasket; then install the gasket.
    Tighten to 125 ft-lb.
  NOTE: On a front differential, the lock collar has
right-hand threads. On a rear gear case, the lock
collar has left-hand threads.




                                                                                                            CC893
                                                           7. Place the input shaft housing assembly onto the
                                                              gear housing; then secure with the existing cap
                                                              screws. Tighten to 23 ft-lb.
                                                  CC890     NOTE: If a new gear housing is being installed,
 4. Place a punch on the edge of the lock collar in the   tighten the cap screws to 28 ft-lb.
    oil gallery area; then using a hammer, stake the
    lock collar to ensure that the collar will remain
    securely tightened.




                                                                                                            CD103



                                                  CC891
 5. Install the shift fork shaft w/spring into the gear
    housing making sure the shaft O-ring is positioned
    to the inside.
