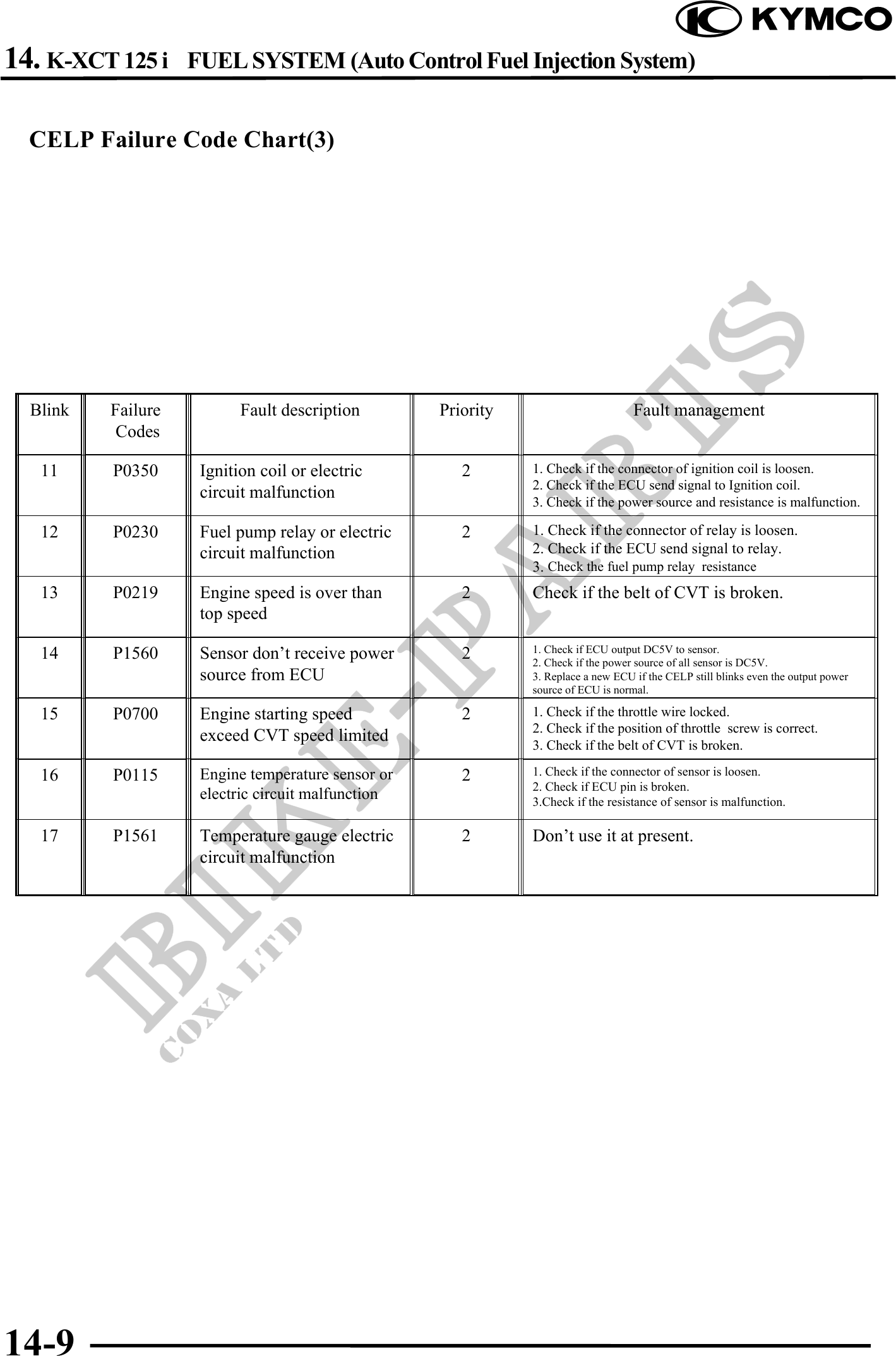

14. K-XCT 125 i FUEL SYSTEM (Auto Control Fuel Injection System)
CELP Failure Code Chart(3)
Blink Failure Fault description Priority Fault management
Codes
11 P0350 Ignition coil or electric 2 1. Check if the connector of ignition coil is loosen.
2. Check if the ECU send signal to Ignition coil.
circuit malfunction 3. Check if the power source and resistance is malfunction.
12 P0230 Fuel pump relay or electric 2 1. Check if the connector of relay is loosen.
circuit malfunction 2. Check if the ECU send signal to relay.
3. Check the fuel pump relay resistance
13 P0219 Engine speed is over than 2 Check if the belt of CVT is broken.
top speed
1. Check if ECU output DC5V to sensor.
14 P1560 Sensor don't receive power 2 2. Check if the power source of all sensor is DC5V.
source from ECU 3. Replace a new ECU if the CELP still blinks even the output power
source of ECU is normal.
15 P0700 Engine starting speed 2 1. Check if the throttle wire locked.
2. Check if the position of throttle screw is correct.
exceed CVT speed limited 3. Check if the belt of CVT is broken.
16 P0115 Engine temperature sensor or 2 1. Check if the connector of sensor is loosen.
2. Check if ECU pin is broken.
electric circuit malfunction 3.Check if the resistance of sensor is malfunction.
17 P1561 Temperature gauge electric 2 Don't use it at present.
circuit malfunction
14-9
