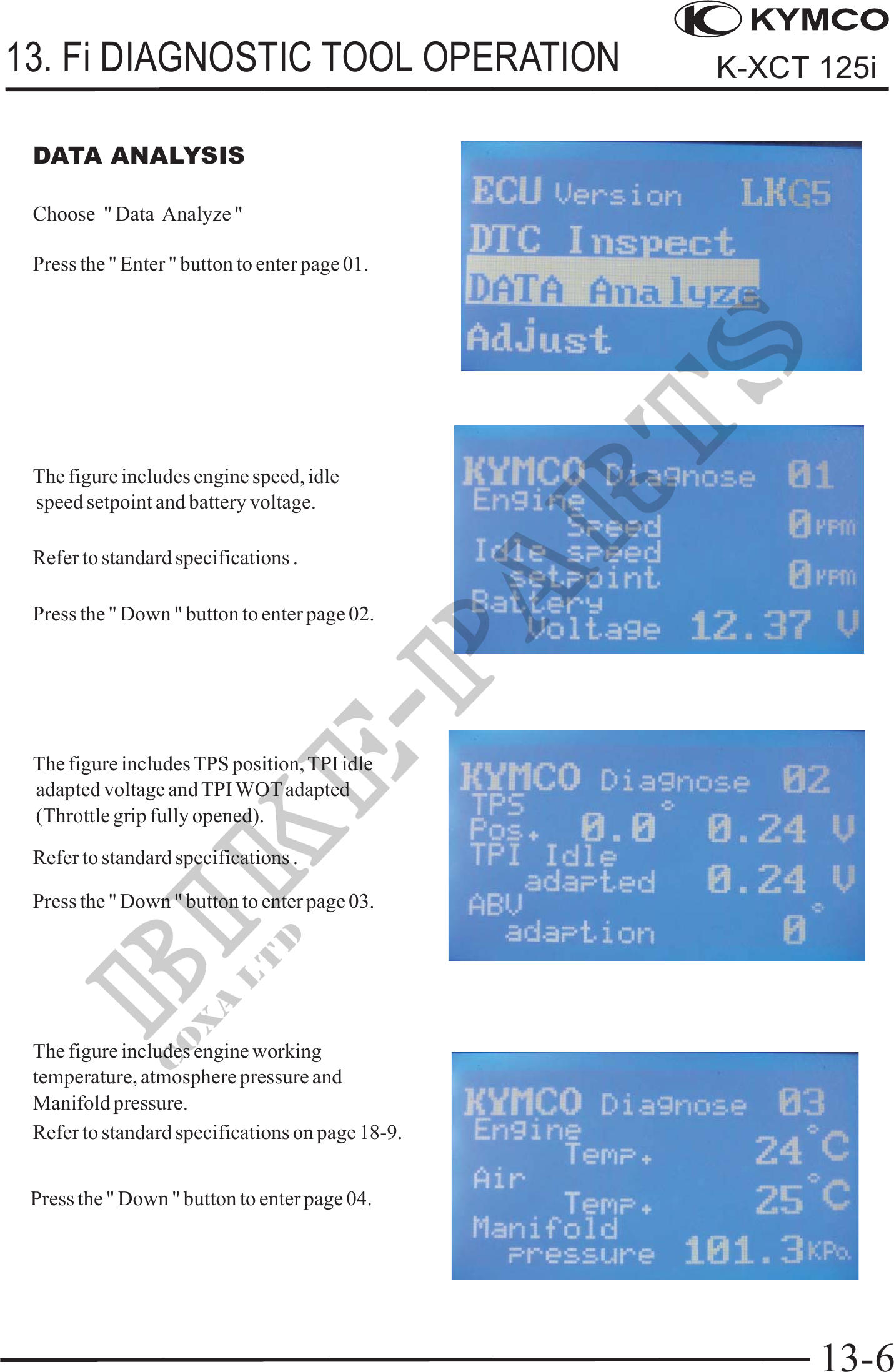

13. Fi DIAGNOSTIC TOOL OPERATION K-XCT 125i
DATA ANALYSIS
Choose " Data Analyze "
Press the " Enter " button to enter page 01.
The figure includes engine speed, idle
speed setpoint and battery voltage.
Refer to standard specifications .
Press the " Down " button to enter page 02.
The figure includes TPS position, TPI idle
adapted voltage and TPI WOT adapted
(Throttle grip fully opened).
Refer to standard specifications .
Press the " Down " button to enter page 03.
The figure includes engine working
temperature, atmosphere pressure and
Manifold pressure.
Refer to standard specifications on page 18-9.
Press the " Down " button to enter page 04.
13-6
