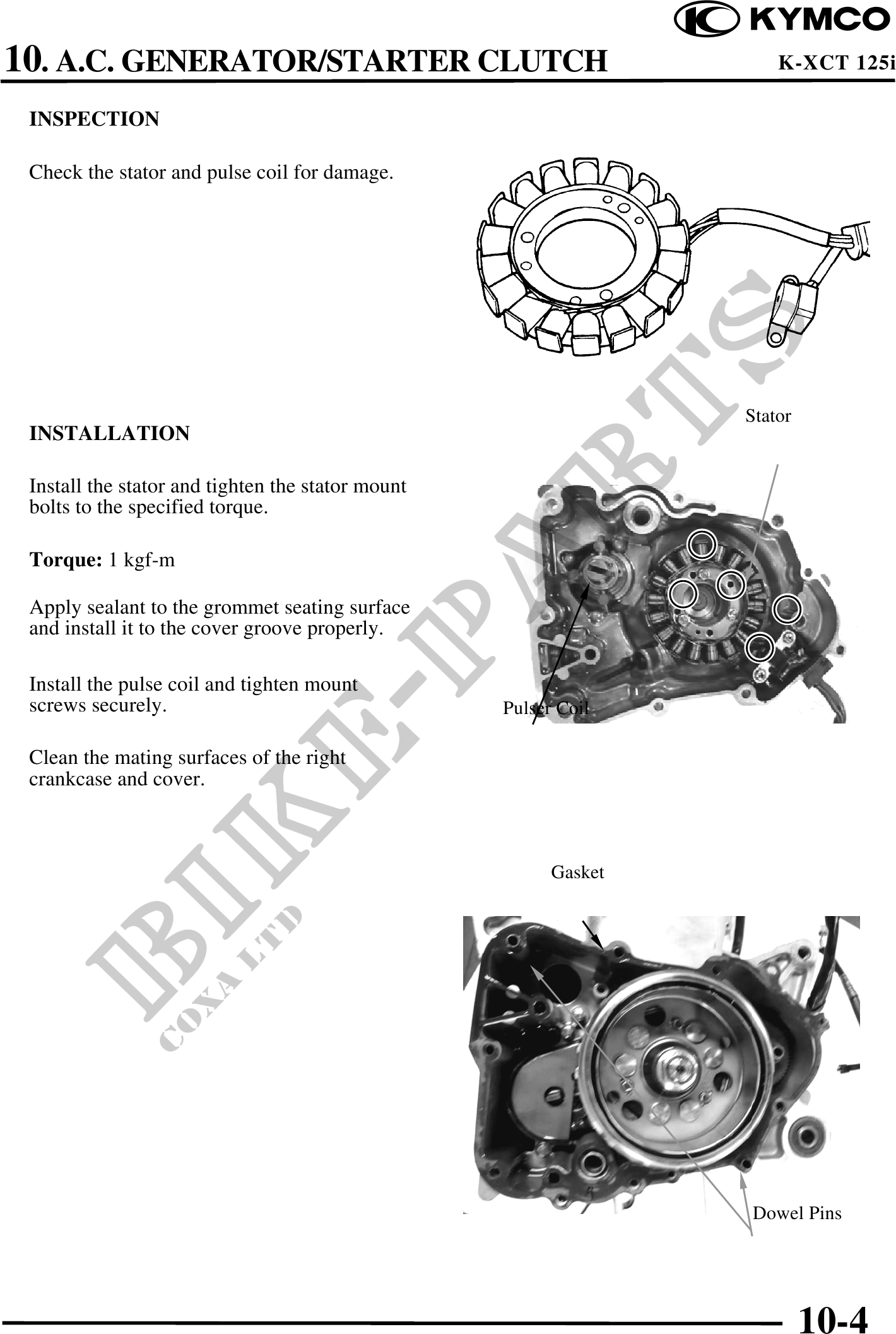

          10. A.C. GENERATOR/STARTER CLUTCH                                     K-XCT 125i

 INSPECTION

 Check the stator and pulse coil for damage.




                                                                  Stator
 INSTALLATION

 Install the stator and tighten the stator mount
 bolts to the specified torque.

 Torque: 1 kgf-m

 Apply sealant to the grommet seating surface
 and install it to the cover groove properly.

 Install the pulse coil and tighten mount
 screws securely.                                  Pulser Coil

 Clean the mating surfaces of the right
 crankcase and cover.



                                                         Gasket




                                                                  Dowel Pins




                                                                           10-4
