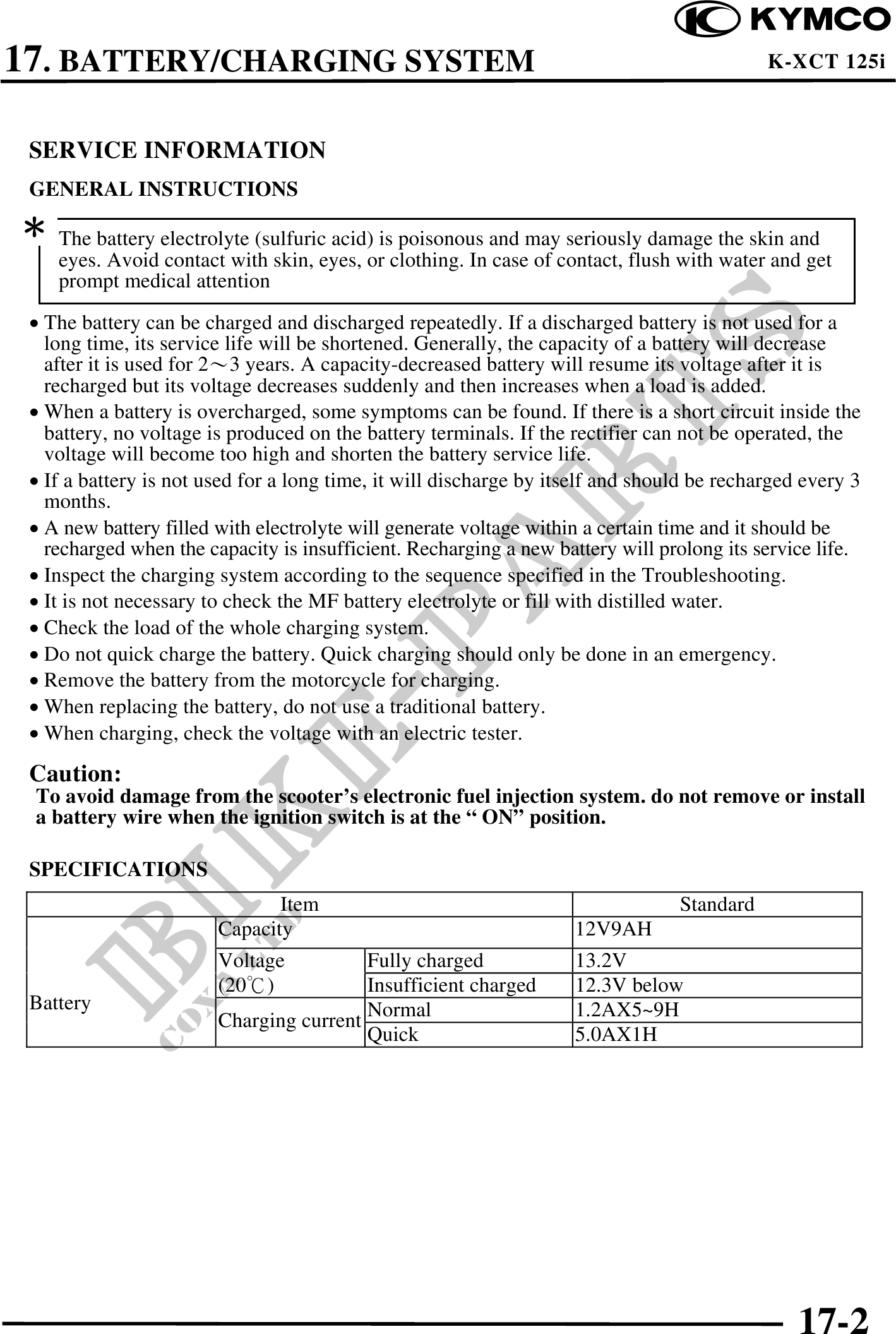

          17. BATTERY/CHARGING SYSTEM                                                                K-XCT 125i



 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 The battery electrolyte (sulfuric acid) is poisonous and may seriously damage the skin and
    eyes. Avoid contact with skin, eyes, or clothing. In case of contact, flush with water and get
    prompt medical attention
  The battery can be charged and discharged repeatedly. If a discharged battery is not used for a
  long time, its service life will be shortened. Generally, the capacity of a battery will decrease
  after it is used for 23 years. A capacity-decreased battery will resume its voltage after it is
  recharged but its voltage decreases suddenly and then increases when a load is added.
  When a battery is overcharged, some symptoms can be found. If there is a short circuit inside the
  battery, no voltage is produced on the battery terminals. If the rectifier can not be operated, the
  voltage will become too high and shorten the battery service life.
  If a battery is not used for a long time, it will discharge by itself and should be recharged every 3
  months.
  A new battery filled with electrolyte will generate voltage within a certain time and it should be
  recharged when the capacity is insufficient. Recharging a new battery will prolong its service life.
  Inspect the charging system according to the sequence specified in the Troubleshooting.
  It is not necessary to check the MF battery electrolyte or fill with distilled water.
  Check the load of the whole charging system.
  Do not quick charge the battery. Quick charging should only be done in an emergency.
  Remove the battery from the motorcycle for charging.
  When replacing the battery, do not use a traditional battery.
  When charging, check the voltage with an electric tester.

 Caution:
 To avoid damage from the scooter's electronic fuel injection system. do not remove or install
 a battery wire when the ignition switch is at the " ON" position.

 SPECIFICATIONS
                               Item                                             Standard
                        Capacity                                   12V9AH
                        Voltage          Fully charged             13.2V
                        (20)             Insufficient charged      12.3V below
 Battery
                        Charging current Normal                    1.2AX5~9H
                                         Quick                     5.0AX1H




                                                                                               17-2
