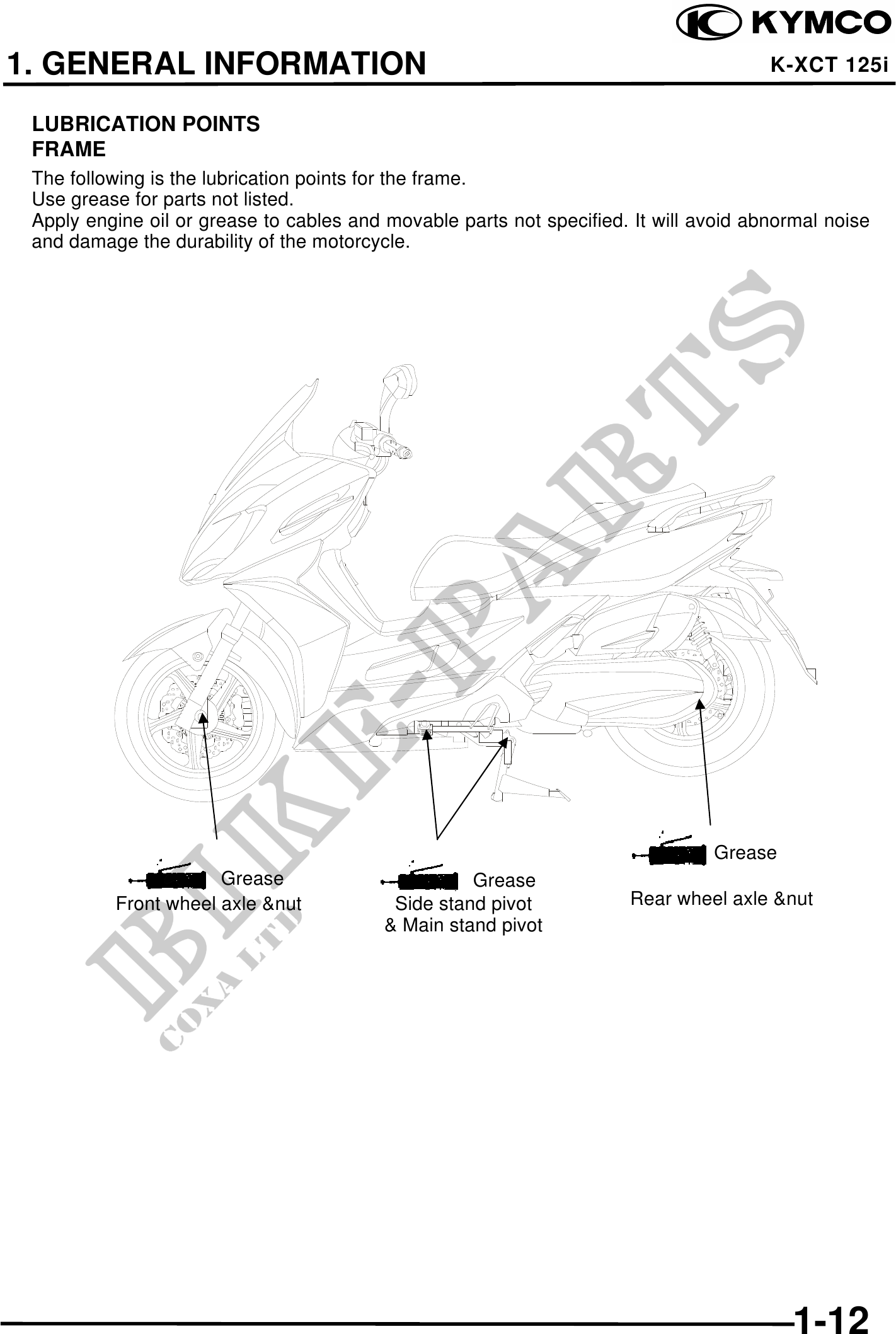

          1. GENERAL INFORMATION                                                                 K-XCT 125i

 LUBRICATION POINTS
 FRAME
 The following is the lubrication points for the frame.
 Use grease for parts not listed.
 Apply engine oil or grease to cables and movable parts not specified. It will avoid abnormal noise
 and damage the durability of the motorcycle.




                                                                                Grease
                      Grease                        Grease
          Front wheel axle &nut            Side stand pivot           Rear wheel axle &nut
                                          & Main stand pivot




                                                                                          1-12
