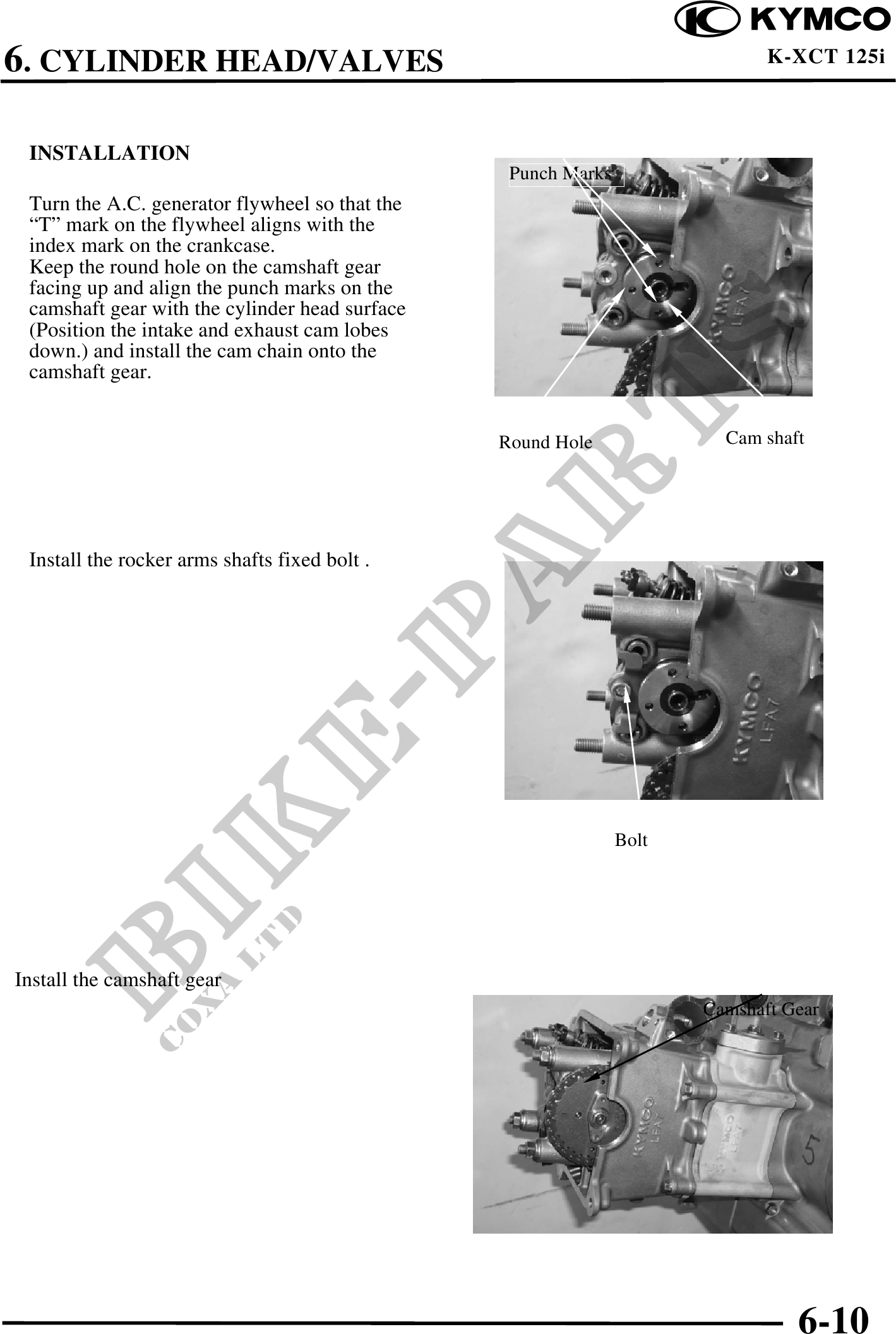

          6. CYLINDER HEAD/VALVES                                                      K-XCT 125i



 INSTALLATION
                                                 Punch Marks
 Turn the A.C. generator flywheel so that the
 "T" mark on the flywheel aligns with the
 index mark on the crankcase.
 Keep the round hole on the camshaft gear
 facing up and align the punch marks on the
 camshaft gear with the cylinder head surface
 (Position the intake and exhaust cam lobes
 down.) and install the cam chain onto the
 camshaft gear.


                                                Round Hole              Cam shaft




 Install the rocker arms shafts fixed bolt .




                                                               Bolt




Install the camshaft gear
                                                                      Camshaft Gear
