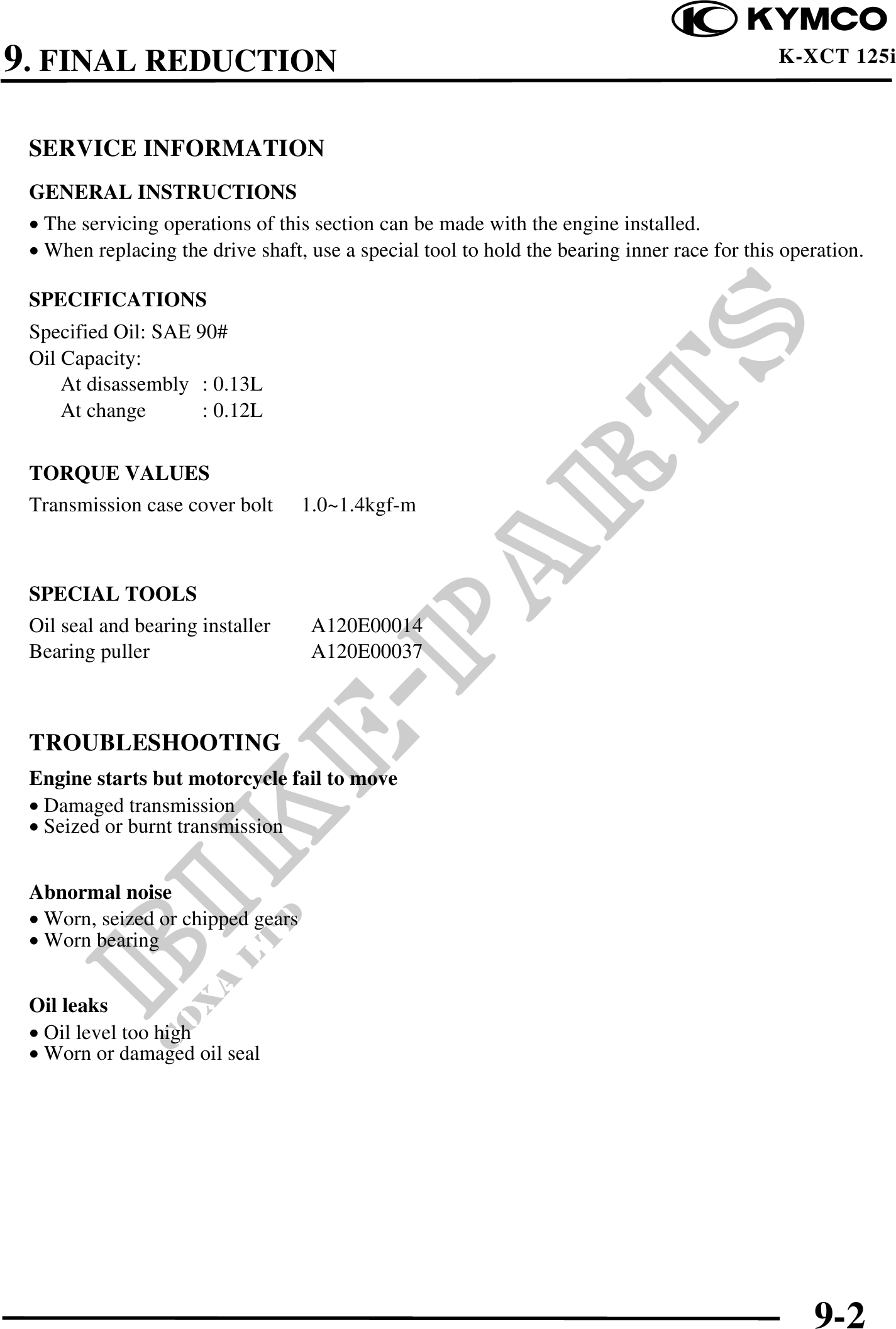

9. FINAL REDUCTION K-XCT 125i
SERVICE INFORMATION
GENERAL INSTRUCTIONS
The servicing operations of this section can be made with the engine installed.
When replacing the drive shaft, use a special tool to hold the bearing inner race for this operation.
SPECIFICATIONS
Specified Oil: SAE 90#
Oil Capacity:
At disassembly : 0.13L
At change : 0.12L
TORQUE VALUES
Transmission case cover bolt 1.0~1.4kgf-m
SPECIAL TOOLS
Oil seal and bearing installer A120E00014
Bearing puller A120E00037
TROUBLESHOOTING
Engine starts but motorcycle fail to move
Damaged transmission
Seized or burnt transmission
Abnormal noise
Worn, seized or chipped gears
Worn bearing
Oil leaks
Oil level too high
Worn or damaged oil seal
9-2
