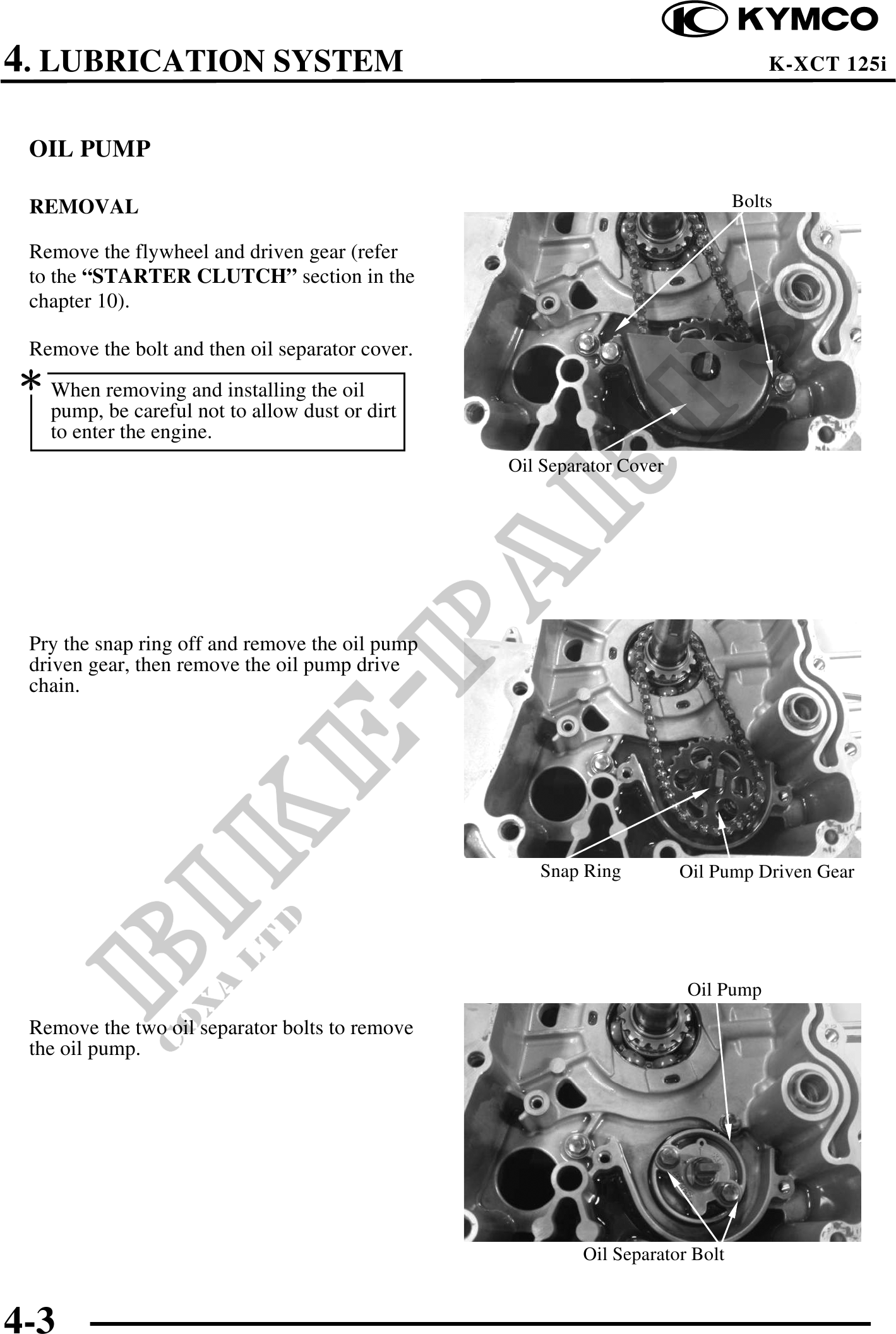

          4. LUBRICATION SYSTEM                                                              K-XCT 125i



 OIL PUMP

 REMOVAL                                                                       Bolts

 Remove the flywheel and driven gear (refer
 to the "STARTER CLUTCH" section in the
 chapter 10).

 Remove the bolt and then oil separator cover.
 When removing and installing the oil
   pump, be careful not to allow dust or dirt
   to enter the engine.
                                                 Oil Separator Cover




 Pry the snap ring off and remove the oil pump
 driven gear, then remove the oil pump drive
 chain.




                                                    Snap Ring          Oil Pump Driven Gear




                                                                       Oil Pump
 Remove the two oil separator bolts to remove
 the oil pump.




                                                          Oil Separator Bolt


4-3
