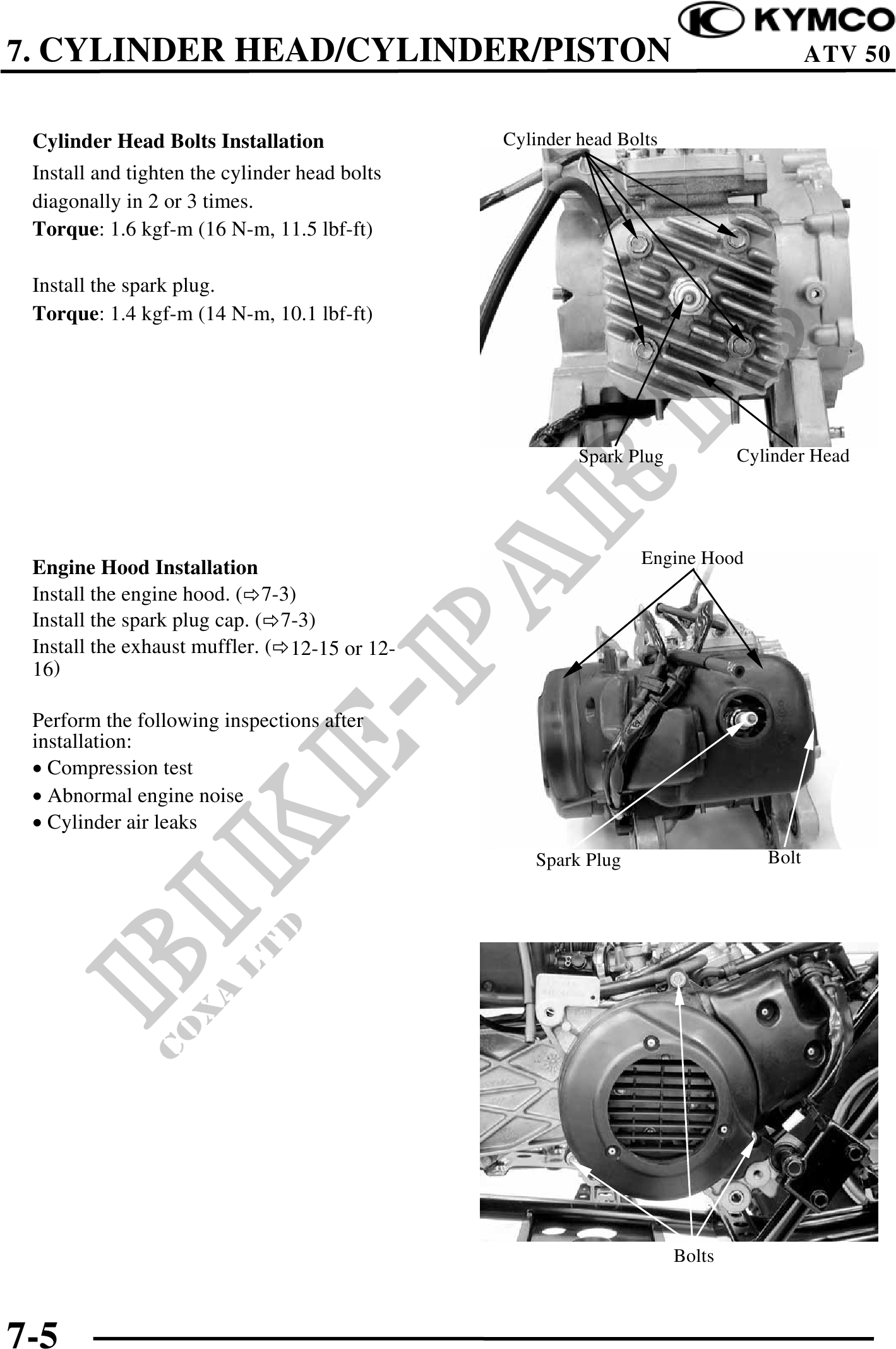

          7. CYLINDER HEAD/CYLINDER/PISTON                                                       ATV 50


 Cylinder Head Bolts Installation              Cylinder head Bolts
 Install and tighten the cylinder head bolts
 diagonally in 2 or 3 times.
 Torque: 1.6 kgf-m (16 N-m, 11.5 lbf-ft)

 Install the spark plug.
 Torque: 1.4 kgf-m (14 N-m, 10.1 lbf-ft)




                                                        Spark Plug           Cylinder Head




                                                                Engine Hood
 Engine Hood Installation
 Install the engine hood. ( 7-3)
 Install the spark plug cap. ( 7-3)
 Install the exhaust muffler. ( 12-15 or 12-
 16)

 Perform the following inspections after
 installation:
 · Compression test
 · Abnormal engine noise
 · Cylinder air leaks
                                                   Spark Plug                   Bolt




                                                                     Bolts



7-5
