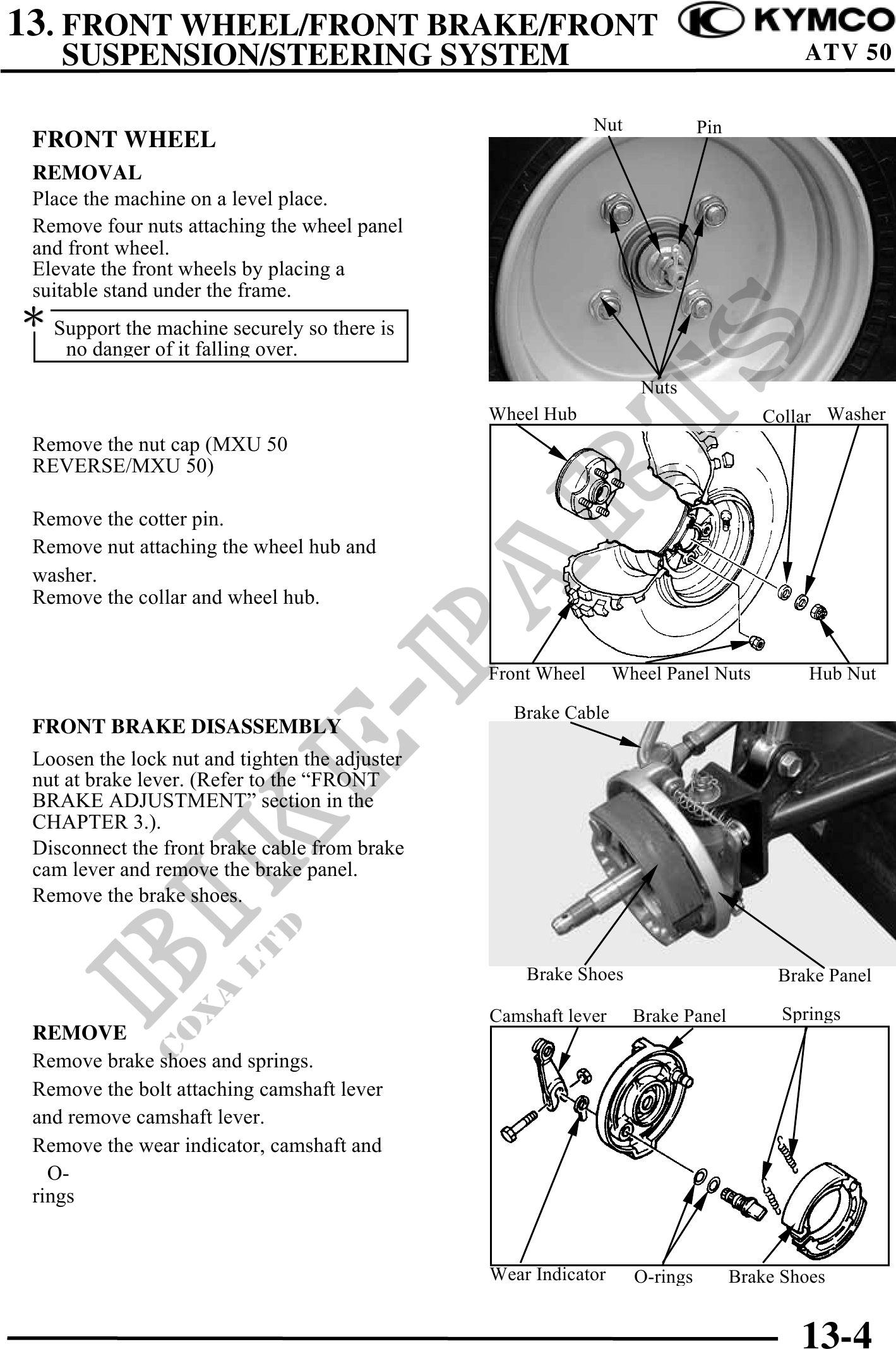

          13. FRONT WHEEL/FRONT BRAKE/FRONT
    SUSPENSION/STEERING SYSTEM                                                              ATV 50

                                                              Nut             Pin
 FRONT WHEEL
 REMOVAL
 Place the machine on a level place.
 Remove four nuts attaching the wheel panel
 and front wheel.
 Elevate the front wheels by placing a
 suitable stand under the frame.
 Support the machine securely so there is
     no danger of it falling over.
                                                                    Nuts
                                                Wheel Hub                              Collar Washer
 Remove the nut cap (MXU 50
 REVERSE/MXU 50)

 Remove the cotter pin.
 Remove nut attaching the wheel hub and
 washer.
 Remove the collar and wheel hub.


                                                Front Wheel      Wheel Panel Nuts            Hub Nut

                                                  Brake Cable
 FRONT BRAKE DISASSEMBLY
 Loosen the lock nut and tighten the adjuster
 nut at brake lever. (Refer to the "FRONT
 BRAKE ADJUSTMENT" section in the
 CHAPTER 3.).
 Disconnect the front brake cable from brake
 cam lever and remove the brake panel.
 Remove the brake shoes.


                                                    Brake Shoes                          Brake Panel

                                                Camshaft lever      Brake Panel           Springs
 REMOVE
 Remove brake shoes and springs.
 Remove the bolt attaching camshaft lever
 and remove camshaft lever.
 Remove the wear indicator, camshaft and
   O-
 rings


                                                Wear Indicator      O-rings         Brake Shoes


                                                                                            13-4
