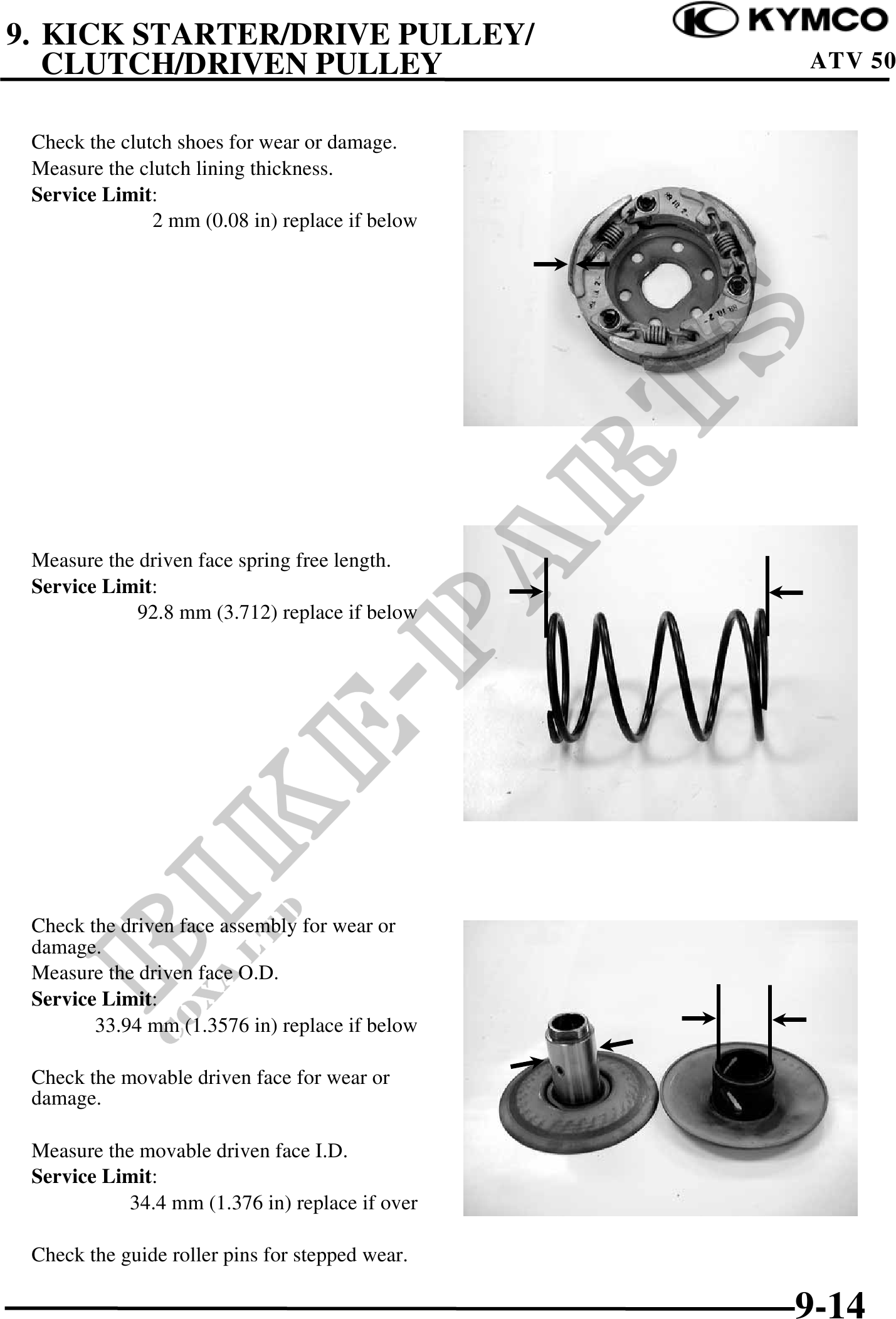

9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY ATV 50
Check the clutch shoes for wear or damage.
Measure the clutch lining thickness.
Service Limit:
2 mm (0.08 in) replace if below
Measure the driven face spring free length.
Service Limit:
92.8 mm (3.712) replace if below
Check the driven face assembly for wear or
damage.
Measure the driven face O.D.
Service Limit:
33.94 mm (1.3576 in) replace if below
Check the movable driven face for wear or
damage.
Measure the movable driven face I.D.
Service Limit:
34.4 mm (1.376 in) replace if over
Check the guide roller pins for stepped wear.
9-14
