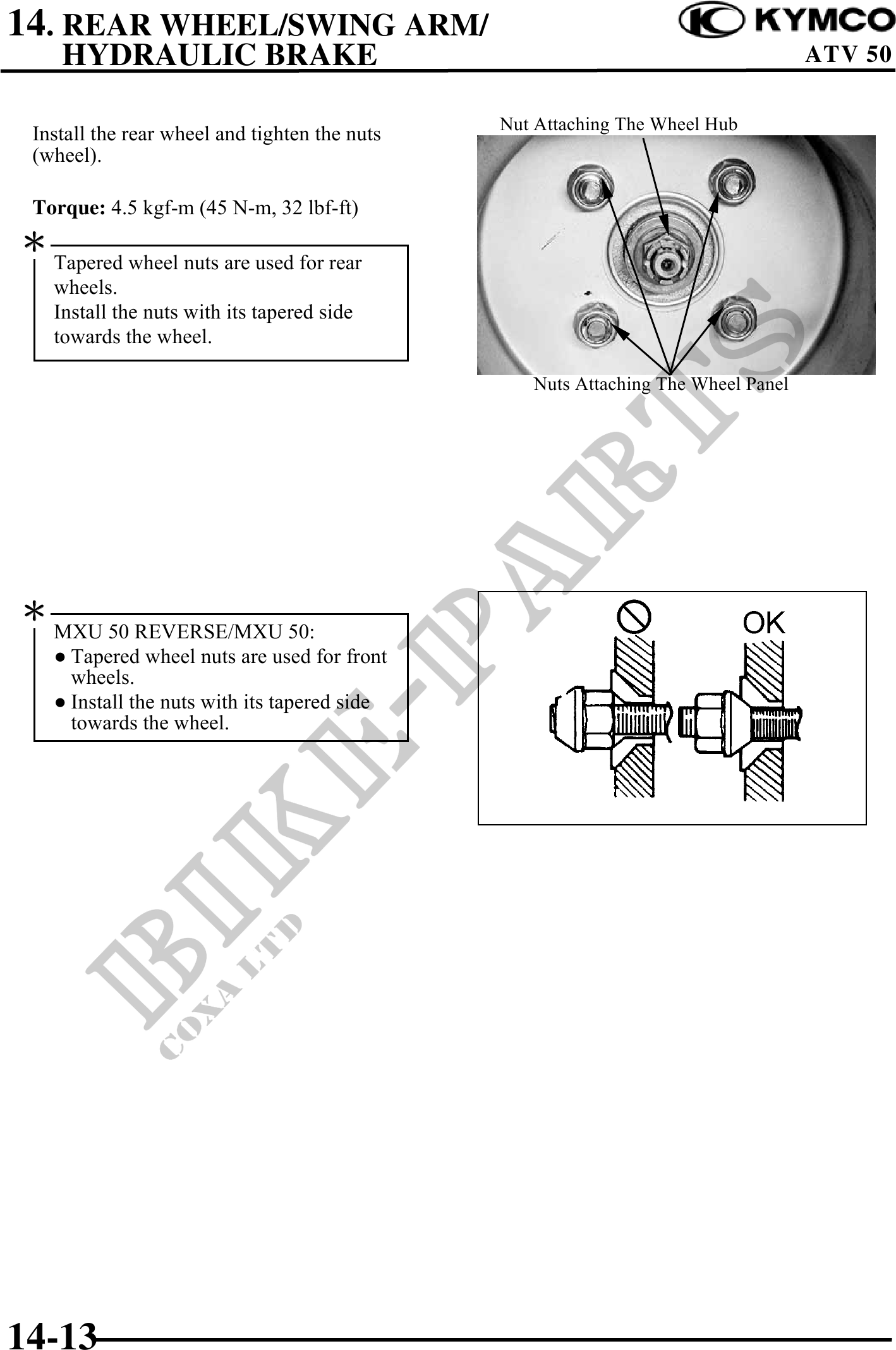

          14. REAR WHEEL/SWING ARM/
    HYDRAULIC BRAKE                                                                ATV 50

                                               Nut Attaching The Wheel Hub
 Install the rear wheel and tighten the nuts
 (wheel).

 Torque: 4.5 kgf-m (45 N-m, 32 lbf-ft)

   Tapered wheel nuts are used for rear
   wheels.
   Install the nuts with its tapered side
   towards the wheel.

                                                  Nuts Attaching The Wheel Panel





   MXU 50 REVERSE/MXU 50:
    Tapered wheel nuts are used for front
    wheels.
    Install the nuts with its tapered side
    towards the wheel.




14-13
