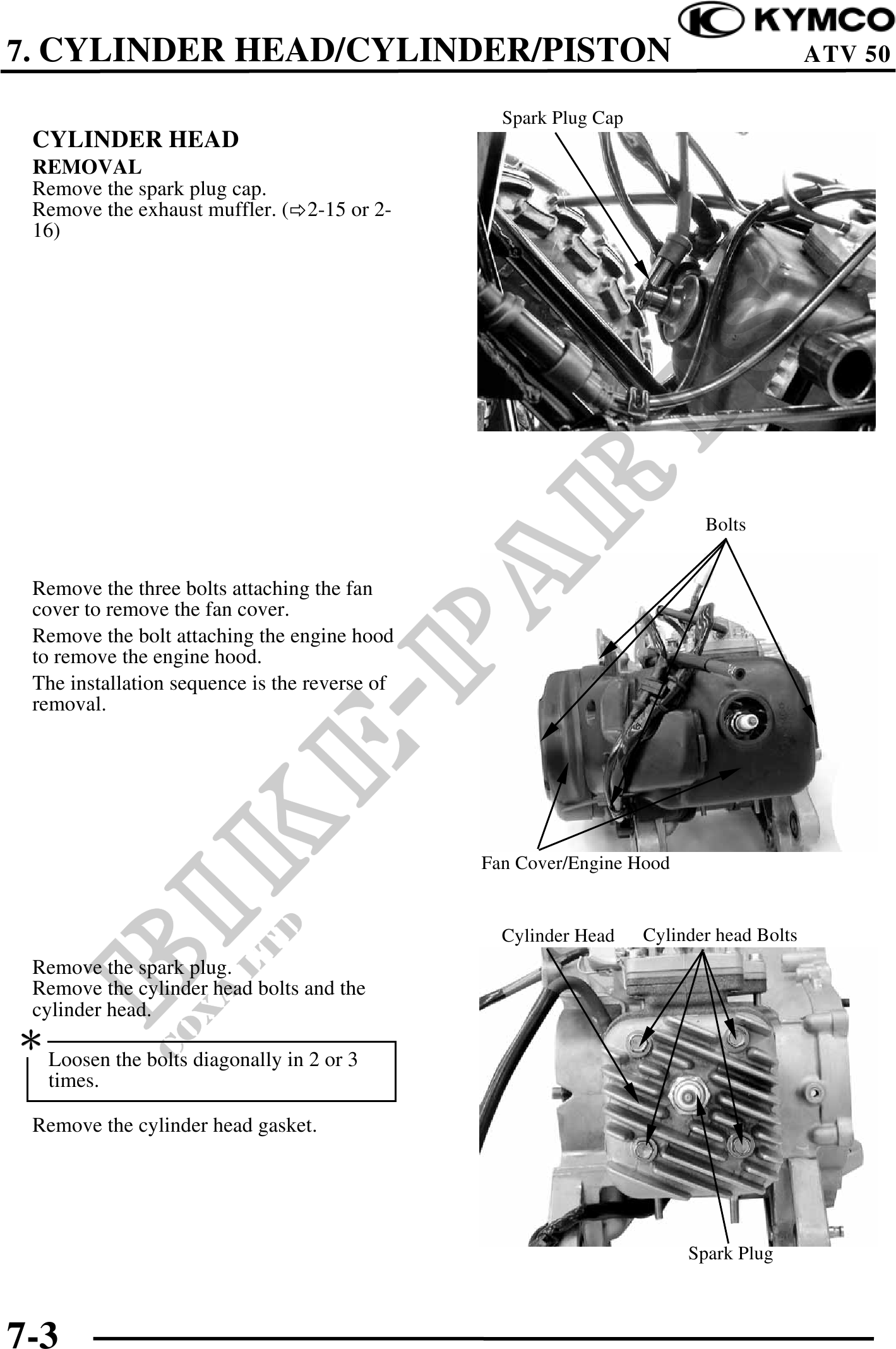

          7. CYLINDER HEAD/CYLINDER/PISTON                                                        ATV 50

                                                 Spark Plug Cap
 CYLINDER HEAD
 REMOVAL
 Remove the spark plug cap.
 Remove the exhaust muffler. ( 2-15 or 2-
 16)




                                                                         Bolts


 Remove the three bolts attaching the fan
 cover to remove the fan cover.
 Remove the bolt attaching the engine hood
 to remove the engine hood.
 The installation sequence is the reverse of
 removal.




                                               Fan Cover/Engine Hood


                                                 Cylinder Head    Cylinder head Bolts
 Remove the spark plug.
 Remove the cylinder head bolts and the
 cylinder head.

   Loosen the bolts diagonally in 2 or 3
   times.

 Remove the cylinder head gasket.




                                                                       Spark Plug



7-3
