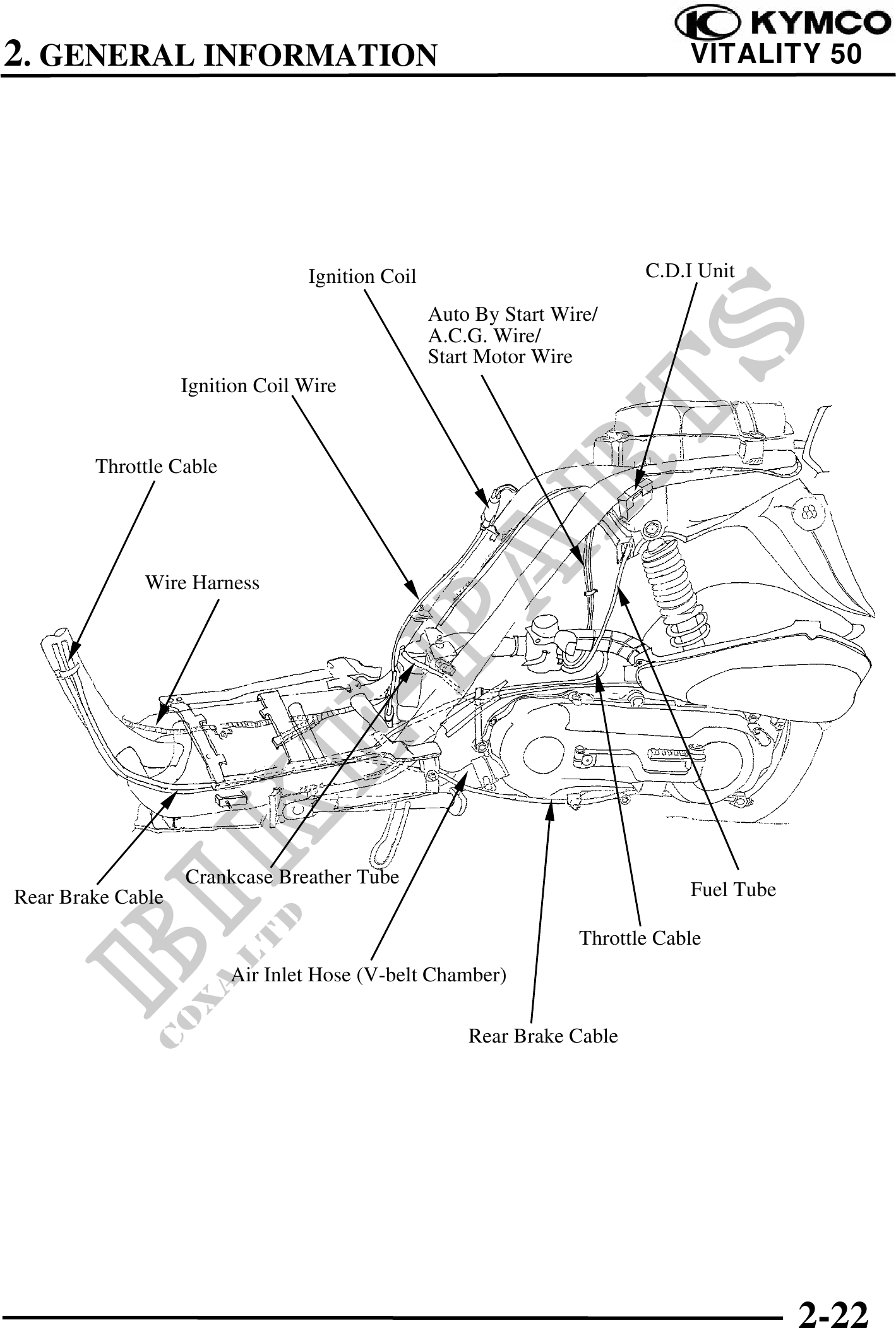

          2. GENERAL INFORMATION                                                       VITALITY 50




                                 Ignition Coil                          C.D.I Unit

                                                 Auto By Start Wire/
                                                 A.C.G. Wire/
                                                 Start Motor Wire
                   Ignition Coil Wire


        Throttle Cable




             Wire Harness




                   Crankcase Breather Tube
Rear Brake Cable                                                             Fuel Tube

                                                                 Throttle Cable
                         Air Inlet Hose (V-belt Chamber)

                                                     Rear Brake Cable
