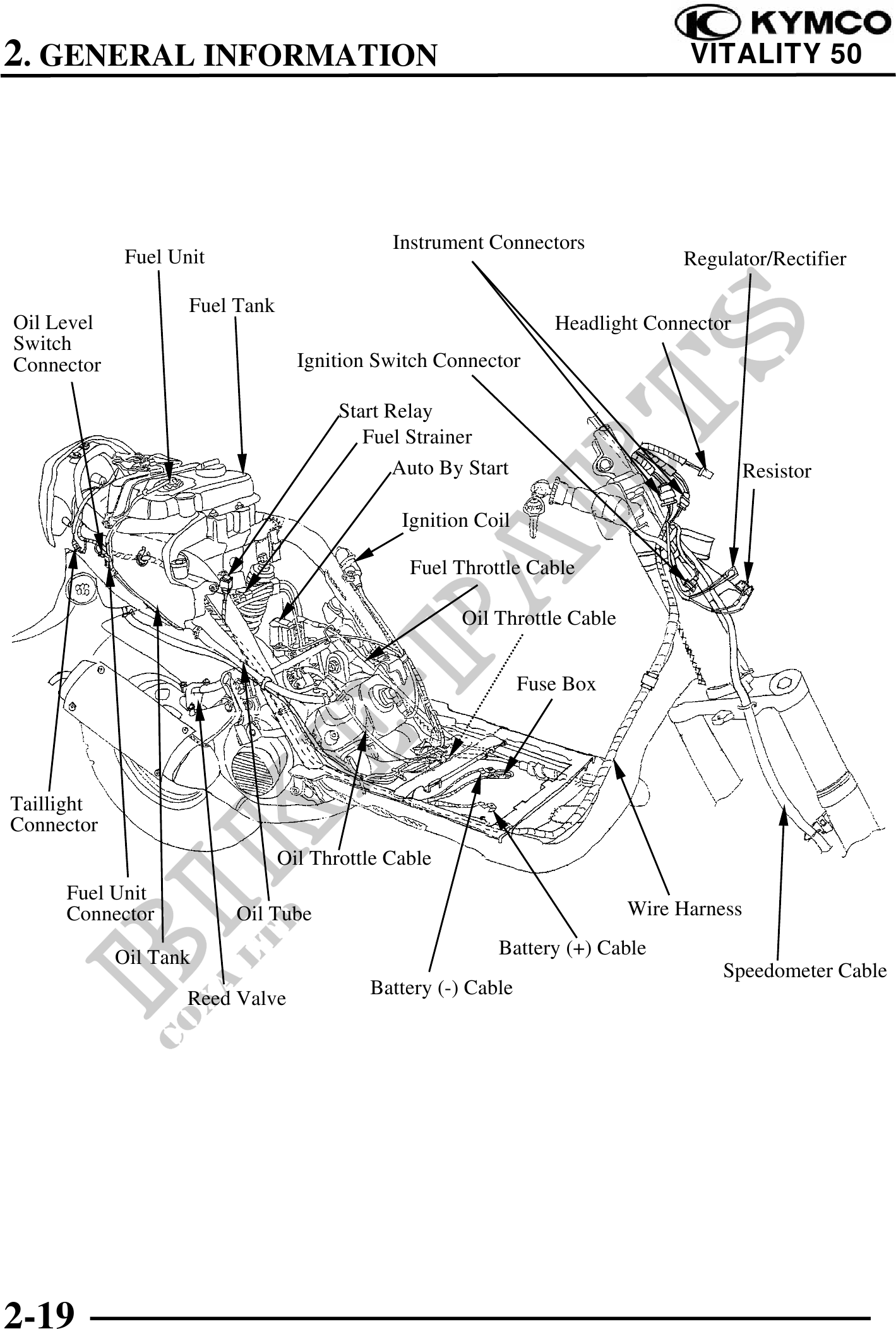

          2. GENERAL INFORMATION                                                          VITALITY 50




                                             Instrument Connectors
             Fuel Unit                                                         Regulator/Rectifier

                    Fuel Tank
Oil Level                                                        Headlight Connector
Switch
Connector                         Ignition Switch Connector

                                       Start Relay
                                          Fuel Strainer
                                              Auto By Start                              Resistor

                                              Ignition Coil

                                               Fuel Throttle Cable

                                                     Oil Throttle Cable


                                                              Fuse Box




Taillight
Connector
                                Oil Throttle Cable
     Fuel Unit
     Connector           Oil Tube                                         Wire Harness

            Oil Tank                                     Battery (+) Cable
                                                                                   Speedometer Cable
                                          Battery (-) Cable
                    Reed Valve




2-19
